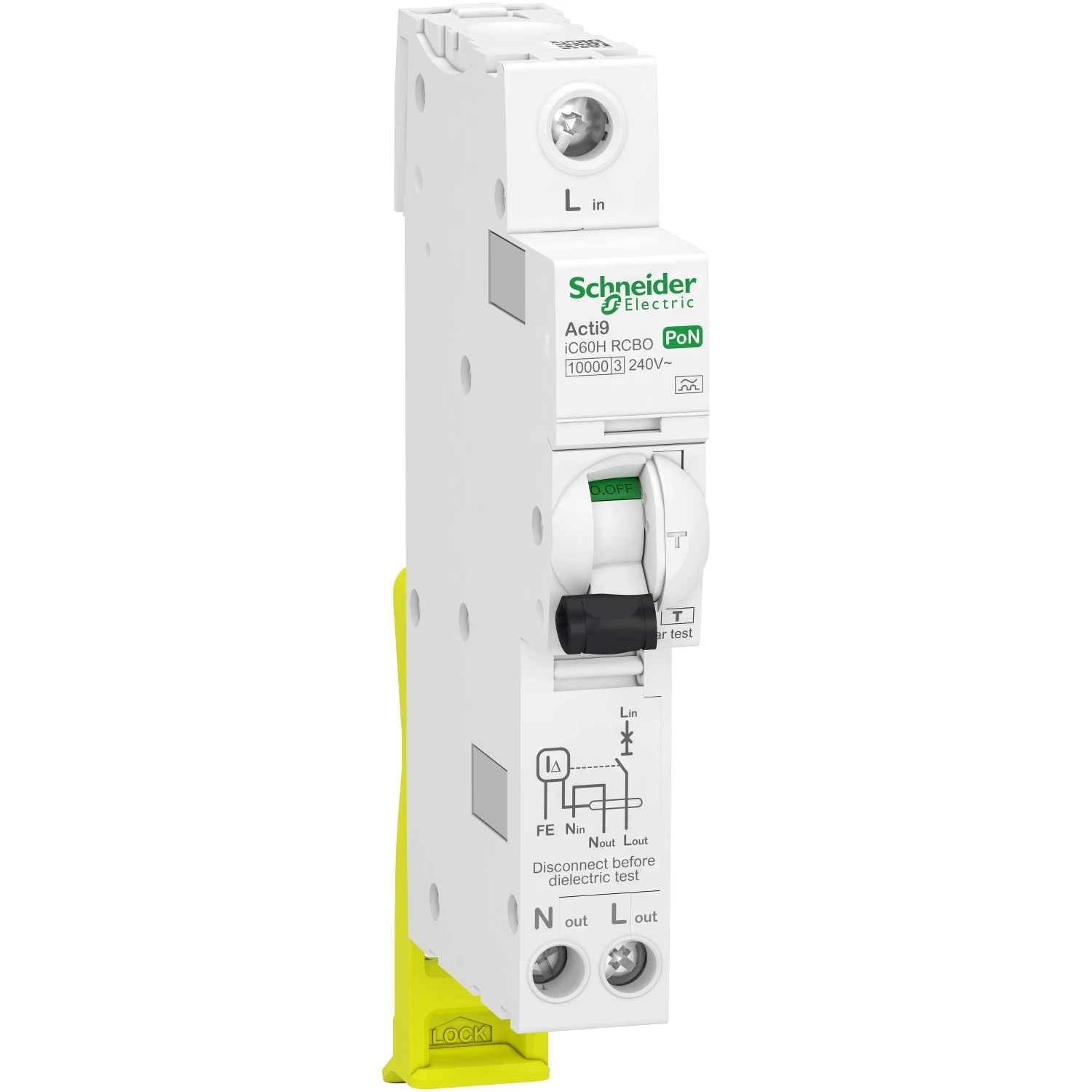

Schneider Acti9 Isobar P iC60H RCBO 1P+Ns 32A 10kA 10mA – Curve C – Type A

Description

Technical Specifications  Technical Specifications Earth leakage circuit breaker/RCBO Rated current 32.00 A Tripping characteristic (type/curve) C Rated voltage 240.00 V Width in number of modular spacings 1.00 Rated insulation voltage Ui 400.00 V Number of protected poles 1.00 Surge current capacity 0.25 kA Rated impulse-withstand voltage (Uimp) 4.00 kV Recess depth 72.00 mm Number of poles (total) 2.00 Over voltage category 2.00 Current limiting class 3.00 Pollution degree 3.00 Rated fault current 0.01 A Rated short-circuit breaking capacity Icn according to EN 61009-1 10.00 kA Connectable conductor cross section solid-core 1.00 – 25.00 mm² Connectable conductor cross section multi-wired 1.00 – 16.00 mm² Ambient temperature during operating -15.00 – 60.00 °C Suitable for flush-mounted installation No Anti-nuisance tripping version No Concurrently switching N-neutral No With interlocking device No · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2205383
