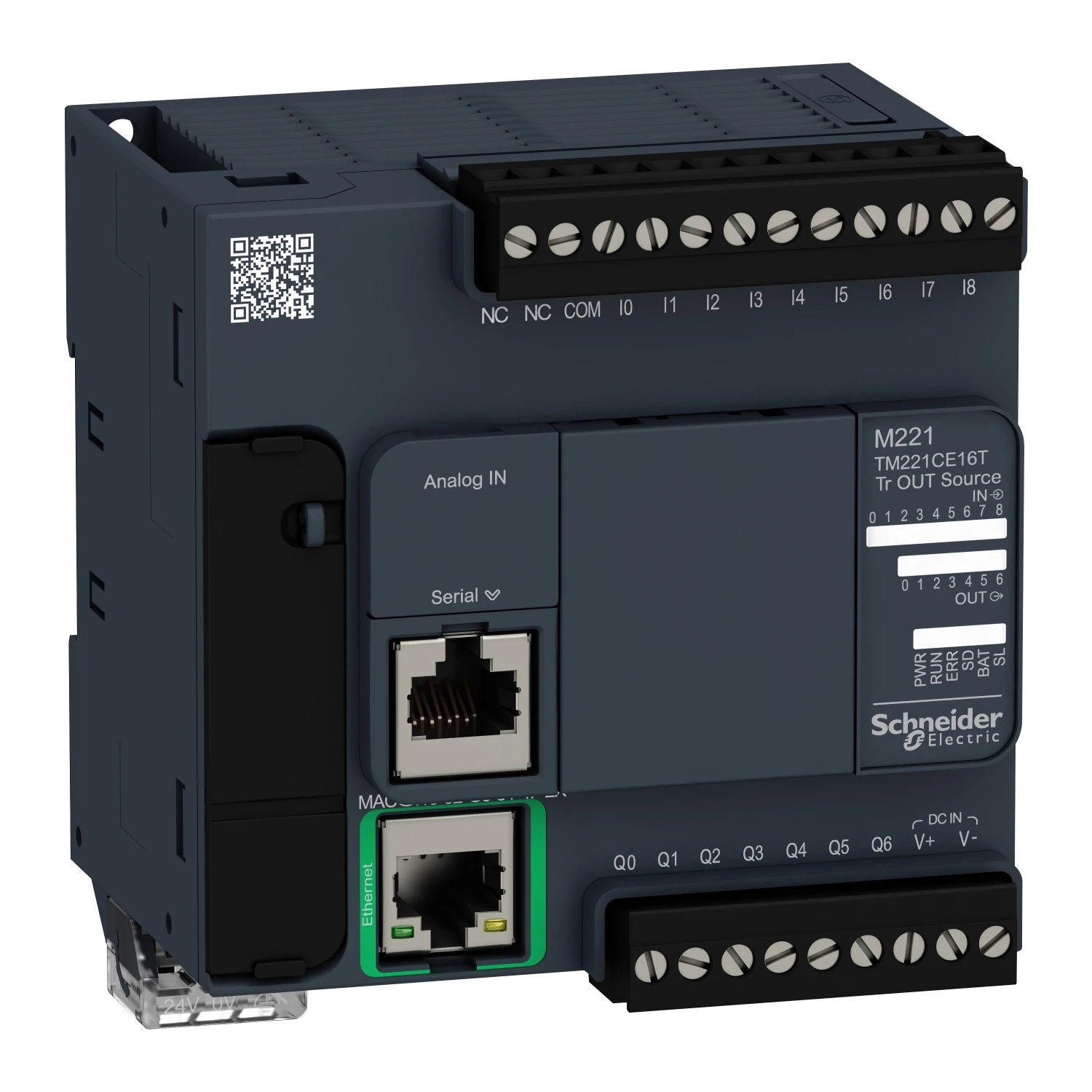

Schneider Controller Transistor Modicon 16 Discrete In/Out Ethernet
£428.92 Incl. VAT
This TM221 controller is part of the Modicon M221 Logic controller range. It has 16 logic I/O and it is supplied with 24V DC. It is supplied with removable screw terminal blocks for connecting the I/O, a removable screw terminal block for connecting the power supply, a button cell backup battery BR2032 and a cable for connecting the analog inputs. M221 logic controllers have three types of integrated communication port, Ethernet, RS 232/RS 485 serial link and USB mini-B programming port. It enables the control of simple machines. The capacity of M221 logic controllers can be enhanced with the Modicon TM3 expansion module offer. · · · This TM221 controller is part of the Modicon M221 Logic controller range. · · It has 16 logic I/O and it is supplied with 24V DC. · · It is supplied with removable screw terminal blocks for connecting the I/O, a removable screw terminal block for connecting the power supply, a button cell backup battery BR2032 and a cable for connecting the analog inputs. · · M221 logic controllers have three types of integrated communication port, Ethernet, RS 232/RS 485 serial link and USB mini-B programming port. · · It enables the control of simple machines. · · The capacity of M221 logic controllers can be enhanced with the Modicon TM3 expansion module offer.
Out of stock
Description
Technical Specifications Technical Specifications PLC CPU-module Height 70 mm Width 95 mm Max. number of time switches 255 Number of relay outputs 0 Number of HW-interfaces Wireless 0 Memory size 640 kByte Number of HW-interfaces PROFINET 0 Number of HW-interfaces USB 1 Number of HW-interfaces RS-485 1 Number of HW-interfaces RS-232 1 Number of analogue inputs 2 Number of digital outputs 7 Number of HW-interfaces industrial Ethernet 1 Number of HW-interfaces other 0 Processing time (1K, binary operation) 0.2 ms Supply voltage AC 60 Hz – – – V Supply voltage AC 50 Hz – – – V Number of analogue outputs 0 Number of digital inputs 9 Depth 70 mm Number of HW-interfaces RS-422 0 Number of HW-interfaces parallel 0 Supply voltage DC 19.2 – 28.8 V Supporting protocol for MODBUS Yes IO link master No System accessory No Redundancy No Radio standard GPRS No Radio standard GSM No Supporting protocol for INTERBUS-Safety No Supporting protocol for DeviceNet Safety No Radio standard UMTS No Supporting protocol for AS-Interface Safety at Work No Supporting protocol for PROFIsafe No Supporting protocol for SafetyBUS p No Supporting protocol for other bus systems No Radio standard Bluetooth No Additional program memory possible Yes Appendant operation agent (Ex ib) No Appendant operation agent (Ex ia) No Rack-assembly possible No Front built-in possible No Wall mounting/direct mounting Yes Rail mounting possible Yes Radio standard WLAN 802.11 No With optical interface No Supporting protocol for ASI No Supporting protocol for INTERBUS No Supporting protocol for KNX No Display No Supporting protocol for PROFIBUS No Supporting protocol for CAN No Suitable for safety functions No Supporting protocol for LON No Supporting protocol for TCP/IP Yes Supporting protocol for Data-Highway No Supporting protocol for DeviceNet No Supporting protocol for PROFINET IO No Supporting protocol for SUCONET No Supporting protocol for PROFINET CBA No Supporting protocol for SERCOS No Supporting protocol for Foundation Fieldbus No Supporting protocol for EtherNet/IP No · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2192488 · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2192601 · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2192619
