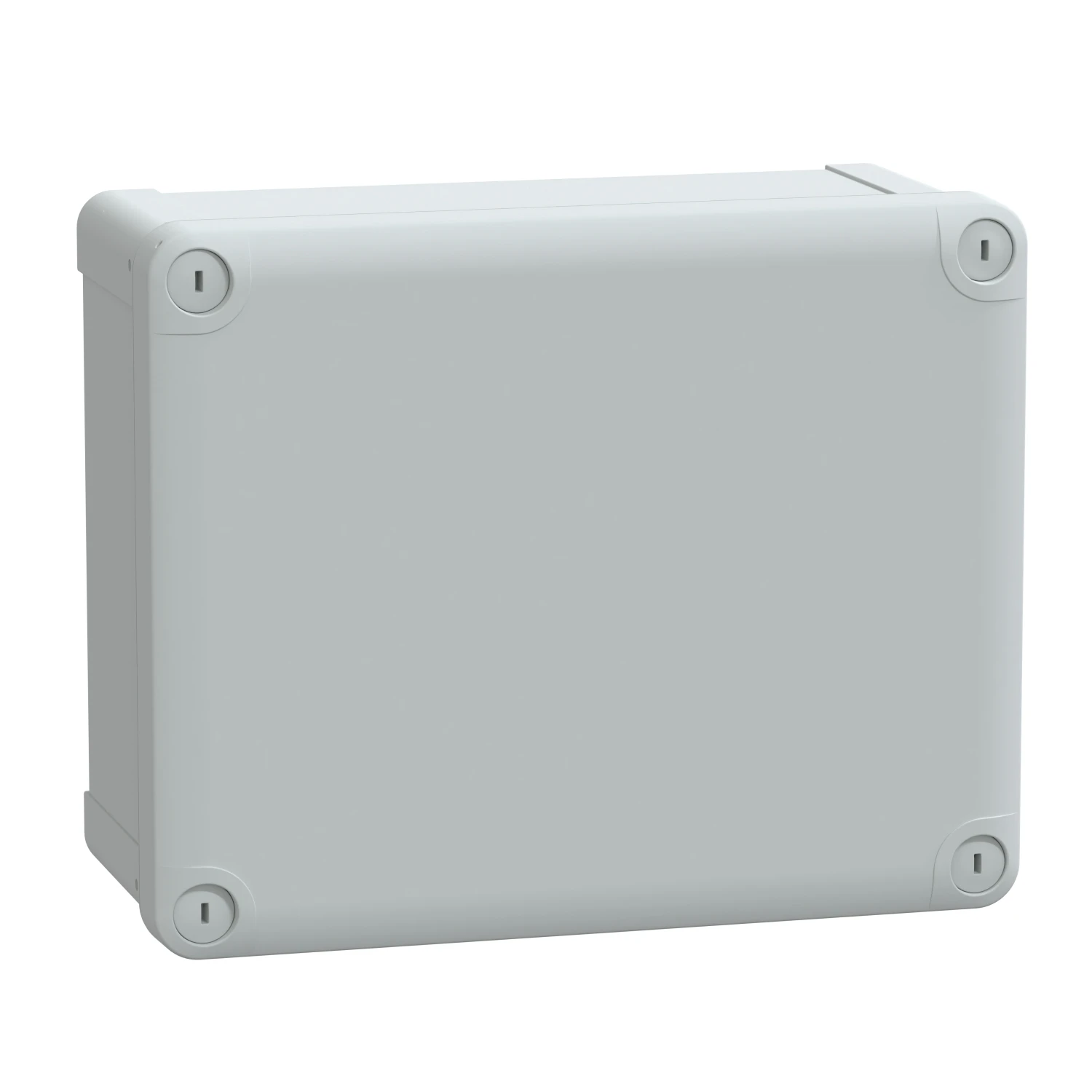

Schneider Electric ABS box IP66 IK07 RAL7035 Int.H225W175D100 Ext.H241W191D128 Opaque cov
£29.10 Incl. VAT
The Thalassa TBS industrial ABS box with opaque cover H20 is designed for multi-purpose application. The external dimensions are (H) 241 mm x (W) 194 mm x (D) 107 mm and the internal dimensions are (H) 225 mm x (W) 175 mm x (D) 100 mm. The cover is fixed by removable plastic captive screw that are flat outside the sealed area. The box is made of ABS (acrylonitrile butadiene-styrene) and offers IP66 protection against dust and water, IK07 hard impact resistance, 650°C glow wire resistance and class II insulation. The installation temperature is -15 °C to 40 °C and the operating temperature is -25 °C to 60 °C. This product is IEC 62208 certified and is qualified as green premium, with minimal use of hazardous substances. · · · Keep your equipment safe from external hazards · · Total electrical insulation (Class II) to avoid electric risks · · Hard impact resistance (IK07) · · Easy to use : only a flat-bladed screwdriver is required
Out of Stock
Description
Technical Specifications Technical Specifications Empty cabinet Depth 107.00 mm Width 194.00 mm Width in number of modular spacings – RAL number 7035.00 Plate thickness door/cover 12.50 mm Nominal current (In) – A Number of rows 0.00 Number of modules 0.00 Plate thickness cabinet 12.50 mm Recess depth – mm Height 241.00 mm Number of conduit inlets 2.00 Internal depth 100.00 mm Number of openings for flange plates 0.00 With mounting plate No Suitable for outdoor use Yes With lock No Extension possible No Transparent cover/door No Suitable for lightning protection Yes · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2192490
