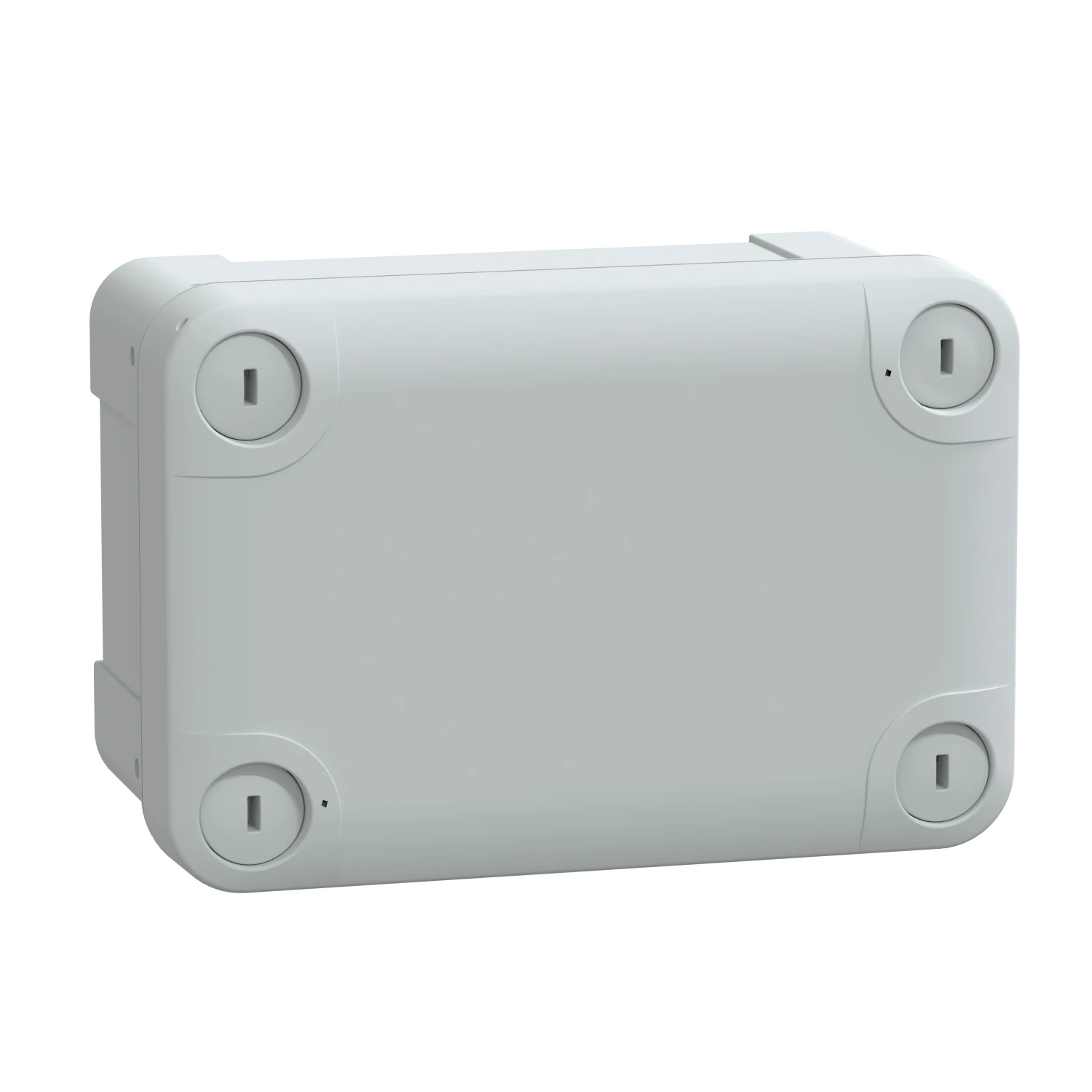

Schneider Electric ABS Box IP66 IK07 RAL7035 Internal H125W80D65 External H138W93D72 Opaque Cover H20
£10.40 Incl. VAT
ABS box IP66 IK07 RAL7035 Int.H125W80D65 Ext.H138W93D72 Opaque cover H20. range: Thalassa – product name: Thalassa TBS – device application: multi-purpose – height: 138 mm – width: 93 mm – depth: 72 mm – internal height: 125 mm – internal width: 80 mm – internal depth: 65 mm – enclosure mounting: wall mounted – device composition: 1 x body, 1 x cover, 4 x cover screw – quantity per set: set of 2 – body type: one piece moulded – cover fixing: plastic screws. · · · Thalassa TBS industrial ABS box with opaque cover H20. · · Int is 125 x 80 x 65 mm. Ext is 138 x 93 x 72 mm. · · Wall mounted enclosure. Low plain cover. Outside sealed is flat screwdriver captive screw lock. · · Certifications is DEMKO, SEMKO, TÜV. Fire resistance 650°. · · ABS (acrylonitrile butadiene-styrene).
Out of Stock
Description
Technical Specifications Technical Specifications Empty cabinet Height 116.00 mm Depth 72.00 mm RAL number 7035.00 Width in number of modular spacings – Width 93.00 mm Number of rows 0.00 Nominal current (In) – A Plate thickness door/cover 12.50 mm Recess depth – mm Number of modules 0.00 Plate thickness cabinet 12.50 mm Number of conduit inlets 2.00 Internal depth 65.00 mm Number of openings for flange plates 0.00 Suitable for lightning protection Yes Suitable for outdoor use Yes Transparent cover/door No With mounting plate No Extension possible No With lock No · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2192490
