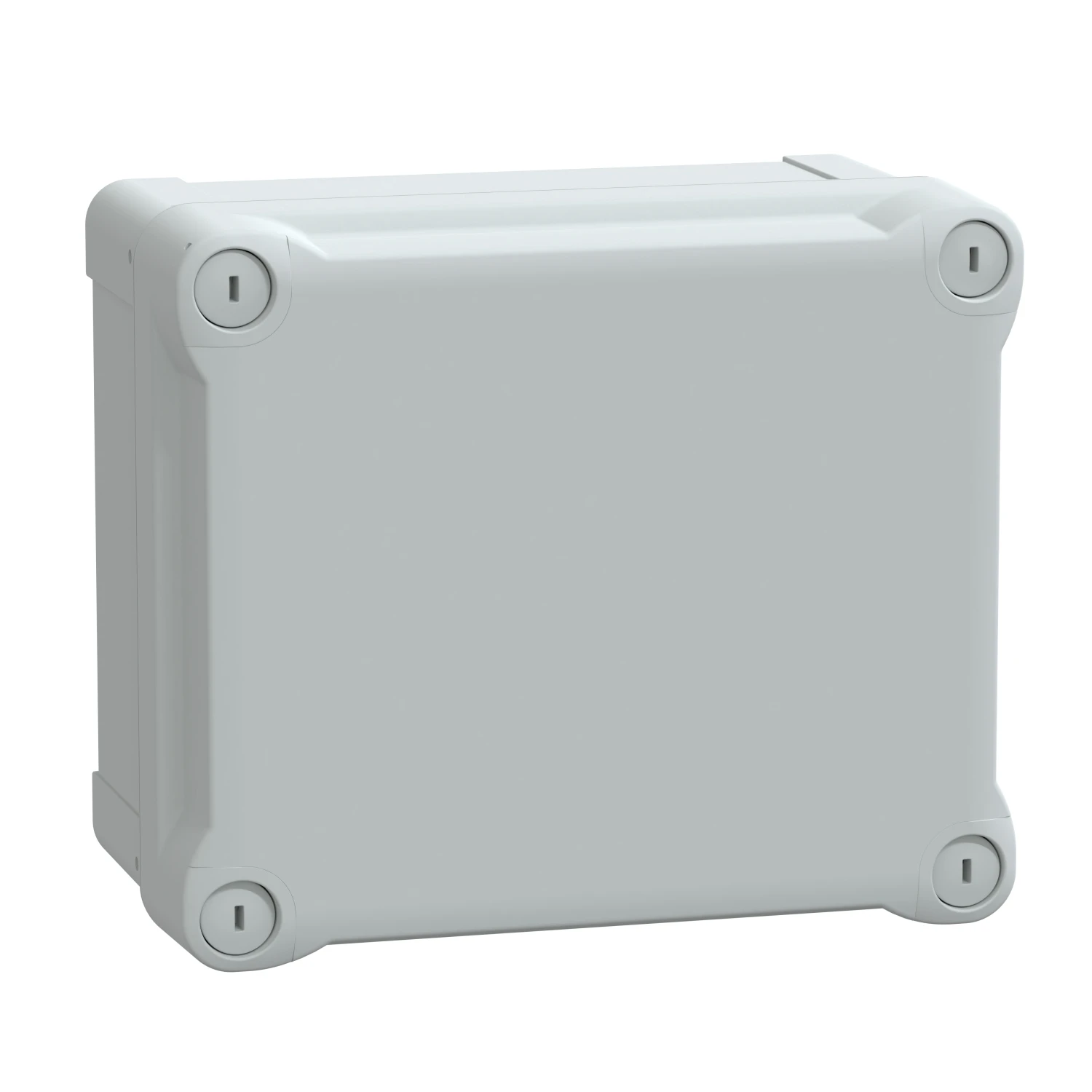

Schneider Electric ABS Box IP66 IK07 RAL7035 Internal H175W150D100 External H193W164D105 Opaque Cover H40
£25.74 Incl. VAT
Thalassa TBS industrial ABS box with opaque cover H40. Int is 175 x 150 x 100 mm. Ext is 193 x 164 x 105 mm. Wall mounted enclosure. High plain cover. Outside sealed is flat screwdriver captive screw lock. Certifications is DEMKO, SEMKO, TÜV. Fire resistance 650°. ABS (acrylonitrile butadiene-styrene). IP66 (NEMA 4.4X), IK07, Grey RAL 7035, Insulation Class II. Set of 2. Ambient temperature for storage/operation is (-15 to 40°C)/(-25 to 60°C). · · · Thalassa TBS industrial ABS box with opaque cover H40. · · Int is 175 x 150 x 100 mm. Ext is 193 x 164 x 105 mm. · · Wall mounted enclosure. High plain cover. Outside sealed is flat screwdriver captive screw lock. · · Certifications is DEMKO, SEMKO, TÜV. Fire resistance 650°. · · ABS (acrylonitrile butadiene-styrene). · · IP66 (NEMA 4.4X), IK07, Grey RAL 7035, Insulation Class II. · · Set of 2. Ambient temperature for storage/operation is (-15 to 40°C)/(-25 to 60°C).
Out of Stock
Description
Technical Specifications Technical Specifications Empty cabinet Depth 105 mm Width 164 mm Width in number of modular spacings – Plate thickness cabinet 12.5 mm Plate thickness door/cover 12.5 mm Nominal current (In) – A Number of openings for flange plates 0 Number of modules 0 Internal depth 100 mm Number of conduit inlets 2 Recess depth – mm Number of rows 0 Height 193 mm RAL number 7035 With mounting plate No Transparent cover/door No With lock No Suitable for lightning protection Yes Suitable for outdoor use Yes Extension possible No · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2192490
