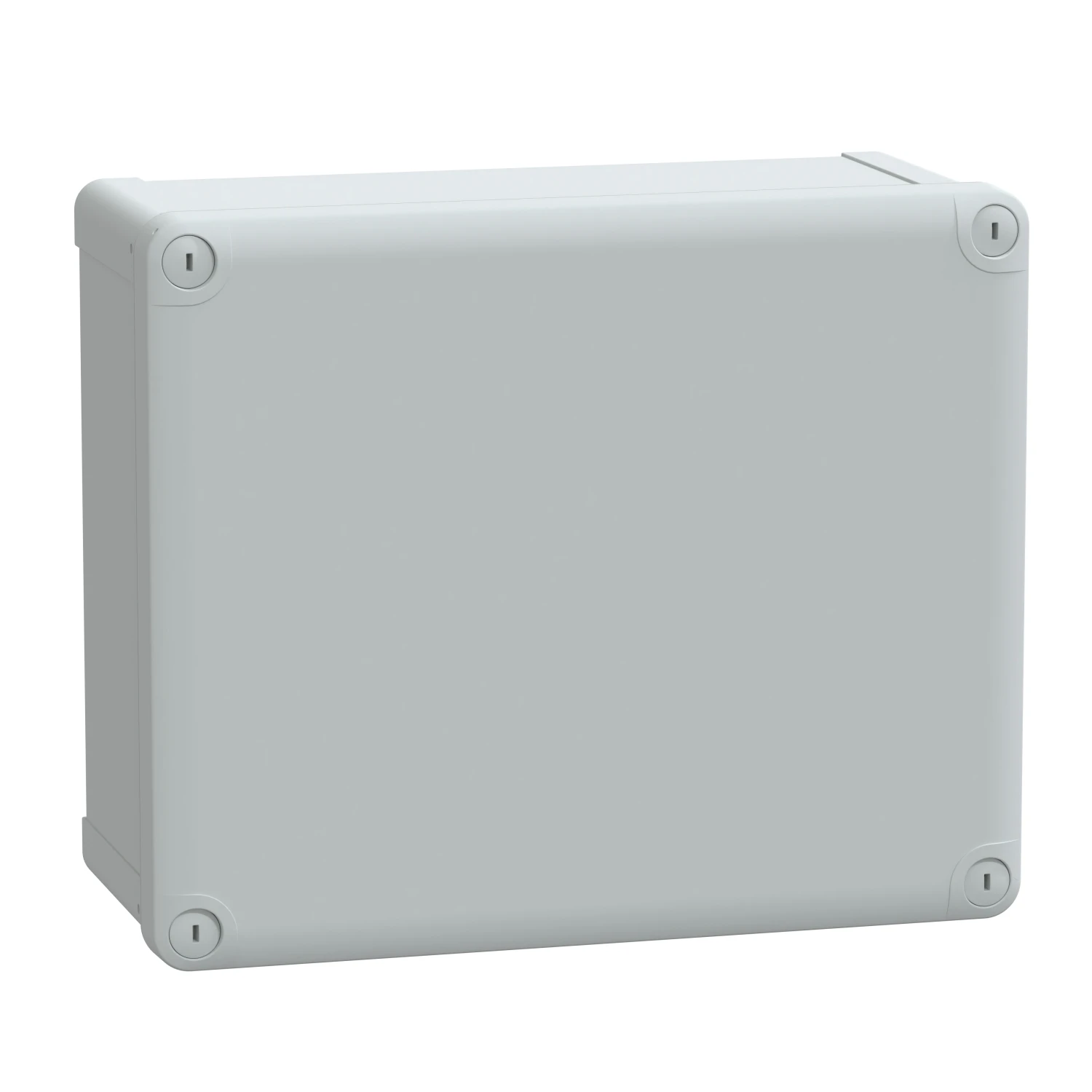

Schneider Electric ABS Box IP66 IK07 RAL7035 Internal H275W225D120 External H291W241D128 Opaque Cover H60
£51.47 Incl. VAT
Thalassa TBS industrial ABS box with opaque cover H60. Int is 275 x 225 x 120 mm. Ext is 291 x 241 x 128 mm. Wall mounted enclosure. High plain cover. Outside sealed is flat screwdriver captive screw lock. Certifications is DEMKO, SEMKO, TÜV. Fire resistance 650°. ABS (acrylonitrile butadiene-styrene). IP66 (NEMA 4.4X), IK07, Grey RAL 7035, Insulation Class II. Set of 2. Ambient temperature for storage/operation is (-15 to 40°C)/(-25 to 60°C). · · · Thalassa TBS industrial ABS box with opaque cover H60. · · Int is 275 x 225 x 120 mm. Ext is 291 x 241 x 128 mm. · · Wall mounted enclosure. High plain cover. Outside sealed is flat screwdriver captive screw lock. · · Certifications is DEMKO, SEMKO, TÜV. Fire resistance 650°. · · ABS (acrylonitrile butadiene-styrene).
Out of Stock
Description
Technical Specifications Technical Specifications Empty cabinet Depth 128.00 mm Width 241.00 mm Height 291.00 mm Width in number of modular spacings – Plate thickness door/cover 12.50 mm Nominal current (In) – A Plate thickness cabinet 12.50 mm Number of modules 0.00 Number of conduit inlets 2.00 Internal depth 120.00 mm Number of rows 0.00 Recess depth – mm Number of openings for flange plates 0.00 RAL number 7035.00 Transparent cover/door No With mounting plate No With lock No Extension possible No Suitable for outdoor use Yes Suitable for lightning protection Yes · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2192490
