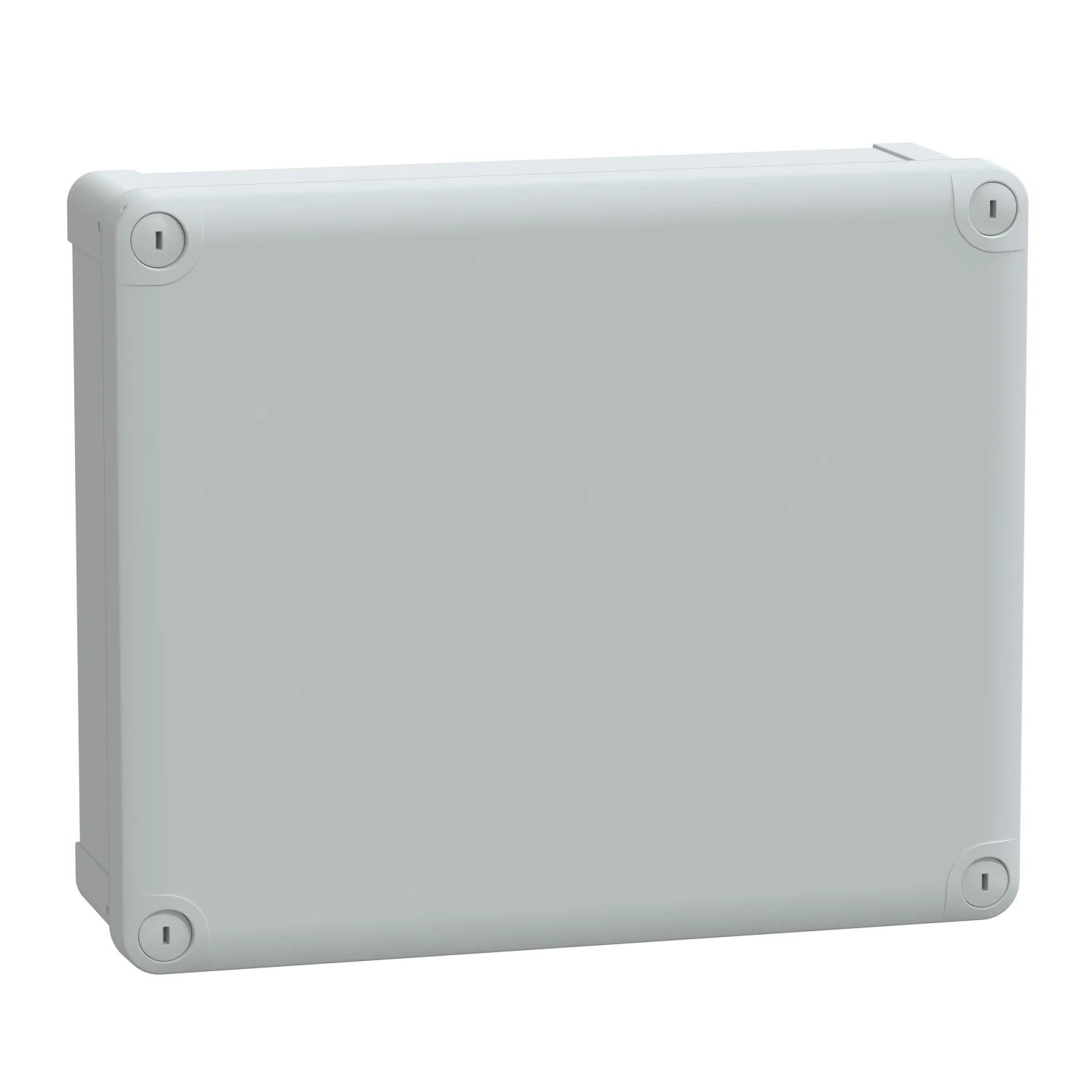

Schneider Electric ABS Box IP66 IK07 RAL7035 Internal H275W225D80 External H291W241D88 Opaque Cover H20
£46.93 Incl. VAT
Thalassa TBS industrial ABS box with opaque cover H20. Int is 275 x 225 x 160 mm. Ext is 291 x 241 x 88 mm. Wall mounted enclosure. Low plain cover. Outside sealed is flat screwdriver captive screw lock. Certifications is DEMKO, SEMKO, TÜV. Fire resistance 650°. ABS (acrylonitrile butadiene-styrene). IP66 (NEMA 4.4X), IK07, Grey RAL 7035, Insulation Class II. Set of 2. Ambient temperature for storage/operation is (-15 to 40°C)/(-25 to 60°C). · · · Thalassa TBS industrial ABS box with opaque cover H20. · · Int is 275 x 225 x 160 mm. Ext is 291 x 241 x 88 mm. · · Wall mounted enclosure. Low plain cover. Outside sealed is flat screwdriver captive screw lock. · · Certifications is DEMKO, SEMKO, TÜV. Fire resistance 650°. · · ABS (acrylonitrile butadiene-styrene). · · IP66 (NEMA 4.4X), IK07, Grey RAL 7035, Insulation Class II. · · Set of 2. Ambient temperature for storage/operation is (-15 to 40°C)/(-25 to 60°C).
Out of Stock
Description
Technical Specifications Technical Specifications Empty cabinet Height 291 mm Width 241 mm Depth 88 mm RAL number 7035 Width in number of modular spacings – Number of rows 0 Plate thickness door/cover 12.5 mm Recess depth – mm Plate thickness cabinet 12.5 mm Nominal current (In) – A Number of conduit inlets 2 Number of modules 0 Internal depth 80 mm Number of openings for flange plates 0 Suitable for lightning protection Yes Suitable for outdoor use Yes With mounting plate No Transparent cover/door No Extension possible No With lock No · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2192490
