Schneider Electric Acti 9 iDPN N Vigi, RCBO, 1p+N, 20A, B Curve, 6000A, 30mA, type A
Schneider Electric Acti 9 iDPN N Vigi, RCBO, 1p+N, 20A, B Curve, 6000A, 30mA, type A

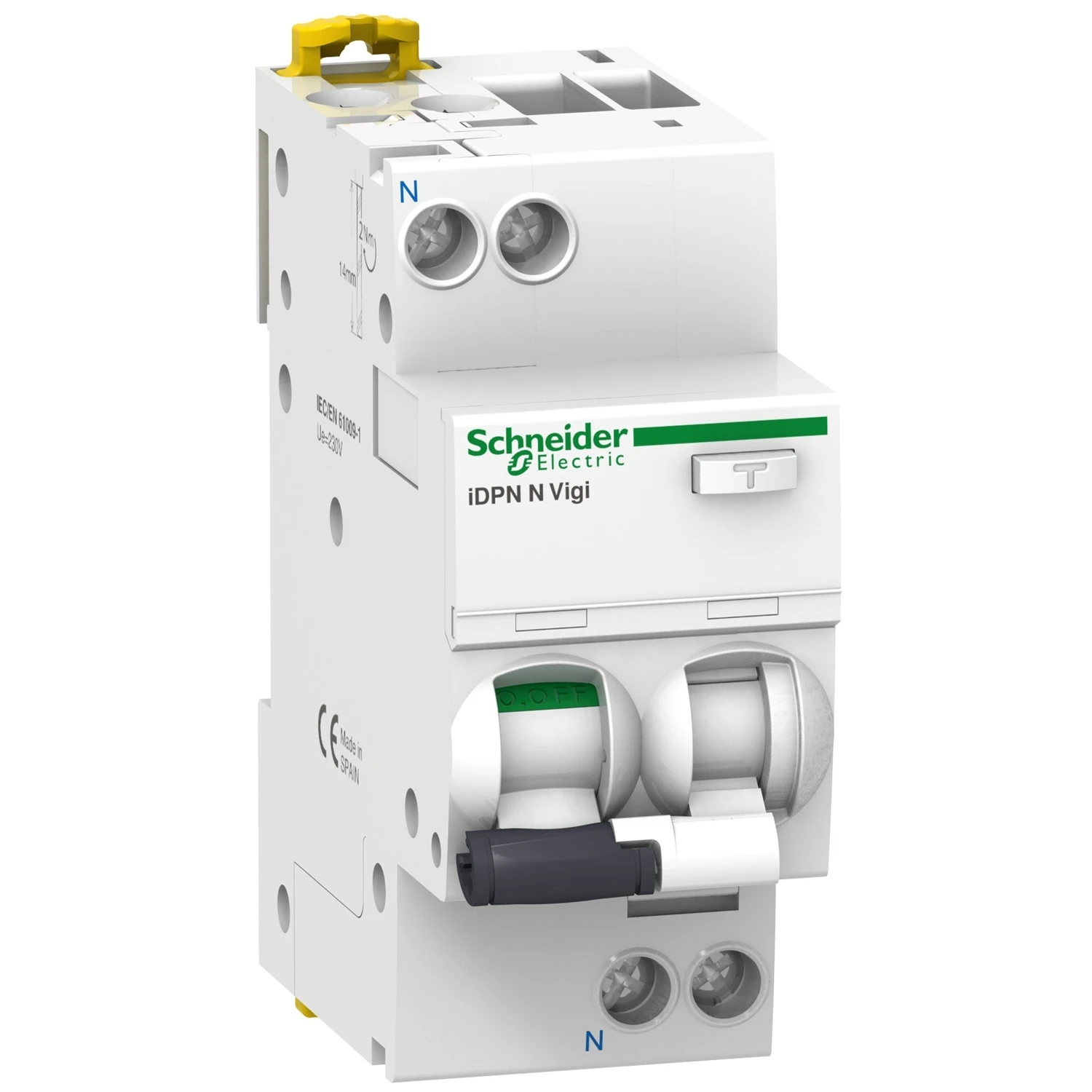

Schneider Electric Acti 9 iDPN N Vigi, RCBO, 1p+N, 20A, B Curve, 6000A, 30mA, type A - Image 2

Schneider Electric Acti 9 iDPN N Vigi, RCBO, 1p+N, 20A, B Curve, 6000A, 30mA, type A

£232.63 Incl. VAT

This Acti9 iDPN Vigi is a modular residual current breaker with overcurrent protection (RCBO). It is a 1P+N circuit breaker with 1 protected pole, 20A In rated current and B tripping curve. The earth leakage protection class is A type with a sensitivity of 30mA. The earth-leakage protection time delay is instantaneous. The Icn rated short circuit breaking capacity is up to 6000A according EN/IEC 61009-2-1 standard. This product protects against short circuit, cable overload, electrical shock by indirect contact and fire hazards. Its earth fault indicator on front face allows quick identification of the type of default. It has a longer service life thanks to its high limitation and fast closing. It has a test button. This product is compliant with EN/IEC 61009-2-1 standard. It has an electrical endurance going up to 20000 cycles and a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 220VAC to 240VAC. The Ui rated insulation voltage is 400VAC. The Uimp rated impulse withstand voltage is 4kV. The frequency is 50Hz. It is DIN rail mountable. The width in 9mm pitches is 4. The product color is white (RAL9003). The dimensions are (W) 36mm x (H) 85mm x (D) 73mm. The weight is 125g. It has an IP20 degree of protection. It becomes IP40 once in modular enclosure according to IEC/EN 60529 standard. The operating temperature is from -25°C to 60°C. The storage temperature is from -40°C to 85°C. · · · This Acti9 iDPN Vigi is a modular residual current breaker with overcurrent protection (RCBO). · · It is a 1P+N circuit breaker with 1 protected pole and 20A In rated current and B tripping curve. · · The earth leakage protection class is A type with a sensitivity of 30mA. The earth-leakage protection time delay is instantaneous. · · The Icn rated short circuit breaking capacity is up to 6000A according EN/IEC 61009-2-1 standard. · · This product protects against short circuit, cable overload, electrical shock by indirect contact and fire hazards.

Out of Stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: A9D56620 Categories: , , Brand: Product Code: 2500866960

Description

Technical Specifications  Technical Specifications Earth leakage circuit breaker/RCBO Rated voltage 230.00 V Recess depth 44.00 mm Rated current 20.00 A Rated short-circuit breaking capacity Icn according to EN 61009-1 – kA Over voltage category 3.00 Rated impulse-withstand voltage (Uimp) 4.00 kV Rated short-circuit breaking capacity according to EN 61009 – kA Surge current capacity 0.25 kA Width in number of modular spacings 2.00 Pollution degree 3.00 Number of poles (total) 2.00 Rated short-circuit breaking capacity IEC 60947-2 – kA Current limiting class 3.00 Number of protected poles 1.00 Rated fault current 0.03 A Rated insulation voltage Ui 400.00 V Connectable conductor cross section solid-core 1.00 – 16.00 mm² Connectable conductor cross section multi-wired 1.00 – 10.00 mm² Ambient temperature during operating 25.00 – 60.00 °C Concurrently switching N-neutral Yes Anti-nuisance tripping version No With interlocking device No · Technical Data Sheet – Click to Download
