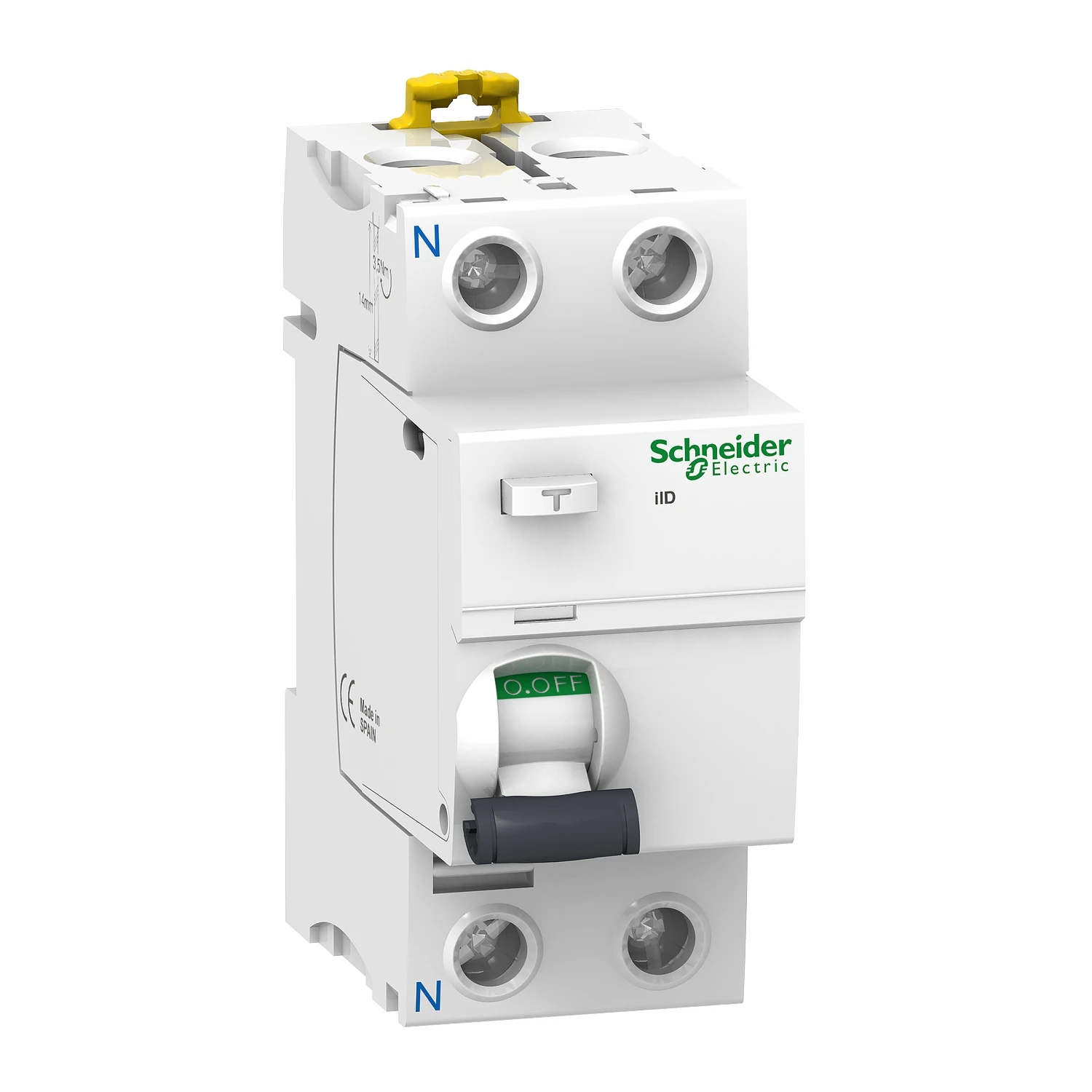

Schneider Electric Acti 9 iID, RCCB, 2p, 16A, 10mA, type AC
Schneider Electric Acti 9 iID, RCCB, 2p, 16A, 10mA, type AC
Schneider Electric Acti 9 iID, RCCB, 2p, 16A, 10mA, type AC - Image 2

Schneider Electric Acti 9 iID, RCCB, 2p, 16A, 10mA, type AC

£186.95 Incl. VAT

This Acti9 iID is a modular and reliable residual current circuit breaker (RCCB). It is a 2P circuit breaker with 16A In rated current, a sensitivity of 10mA with a AC type protection class. This product protects against electrical shock by direct or indirect contact and fire hazards. It performs the function of disconnection of electrical circuits in case of earth fault. Its unique Visitrip indicator reduces intervention time by showing the faulty device with a mechanical indicator on front face. This product also has a VisiSafe window with a green strip on the toggle indicating full opening of the poles allowing downstream maintenance This product is compliant with EN/IEC 61008-1 standard. The (Im/IΔm) rated breaking and making short circuit capacity is 1500A. The (Inc/IΔc) conditional rated short circuit current is 10kA. The mechanical endurance is going up to 20000 cycles and electrical endurance going up to 15000 cycles. The Ue operational voltage is 220VAC to 240VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 6kV. The frequency is 50Hz or 60Hz. It is DIN rail mountable. The width in 9mm pitches is 4. The product colour is white (RAL9003). The dimensions are (W) 36mm x (H) 91mm x (D) 73.5mm. The weight is 0.21kg. It has an IP20 degree of protection (as per IEC/EN 60529 standard) and becomes IP40 once in modular enclosure. The operating temperature is from -5°C to 60°C. The storage temperature is from -40°C to 85°C. · · · This Acti9 iID is a modular and reliable residual current circuit breaker (RCCB). · · It is a 2P circuit breaker with 16A In rated current, a sensitivity of 10mA with a AC type protection class. · · This product protects against electrical shock by direct or indirect contact and fire hazards. · · It performs the function of disconnection of electrical circuits in case of earth fault. · · Its unique Visitrip indicator reduces intervention time by showing the faulty device with a mechanical indicator on front face.

Out of Stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: A9R10216 Category: Brand: Product Code: 2500673551

Description

Technical Specifications  Technical Specifications Residual current circuit breaker (RCCB) Short-circuit breaking capacity (Icw) 10.00 kA Surge current capacity 0.25 kA Pollution degree 3.00 Rated impulse-withstand voltage (Uimp) 6.00 kV Rated voltage 240.00 V Rated insulation voltage Ui 500.00 V Width in number of modular spacings 2.00 Rated current 16.00 A Number of poles 2.00 Rated fault current 10.00 A Recess depth 73.50 mm Connectable conductor cross section solid-core 1.00 – 35.00 mm² Connectable conductor cross section multi-wired 1.00 – 25.00 mm² Ambient temperature during operating -5.00 – 60.00 °C Selective protection No Additional equipment possible Yes With interlocking device No Short-time delayed tripping No · Technical Data Sheet – Click to Download
