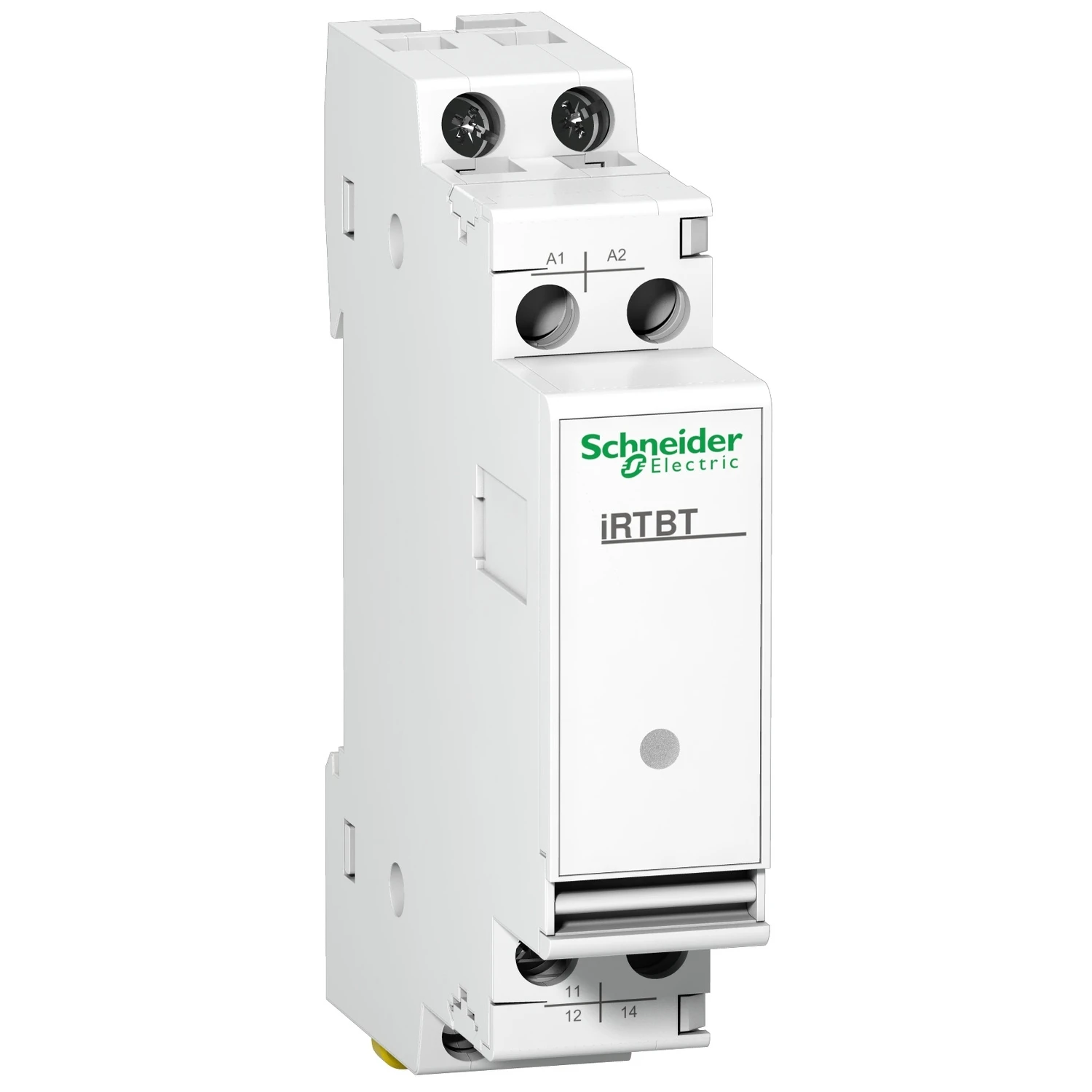

Schneider Electric Acti 9 Irtbt Extra Low Voltage Relay White
Schneider Electric Acti 9 Irtbt Extra Low Voltage Relay White
Schneider Electric Acti 9 Irtbt Extra Low Voltage Relay White - Image 2

Schneider Electric Acti 9 Irtbt Extra Low Voltage Relay White

£98.53 Incl. VAT

Actuation of low-amperage electronic circuits upon receiving an LV electrical order. Inputs of programmable logic controllers, of measuring. or supervision circuits · · · ELV orders can be issued by a programmable logic controller (24 V DC static outputs), a central fire detection unit, a regulation system, etc. · · Input Control Voltage: DC – 12…24, -15 to +10 % and AC – 12…24, ±20 % · · Operating Frequancy: 60Hz · · Operating Temprature: -5 … +55 · · Voltage presence display by green indicator lamp

Out of Stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: A9A15416 Categories: , Brand: Product Code: 2500684417

Description

Technical Specifications  Technical Specifications Installation relay Number of contacts as normally open contact 0.00 Number of contacts as normally closed contact 0.00 Number of contacts as change-over contact 1.00 Width in number of modular spacings 2.00 Rated current 5.00 A Max. incandescent lamp load – W Recess depth 65.50 mm Max. load fluorescent lamp (Duo circuit) – VA Max. load fluorescent lamp – VA Max. switching current (cos phi = 0.6) 5.00 A Max. load fluorescent lamp (parallel compensated) – VA Frequency control voltage 2 – – – Hz Supply voltage 10.00 – 250.00 V Control voltage 1 12.00 – 24.00 V Control voltage 2 12.00 – 24.00 V Frequency control voltage 1 50.00 – 60.00 Hz · Technical Data Sheet – Click to Download
