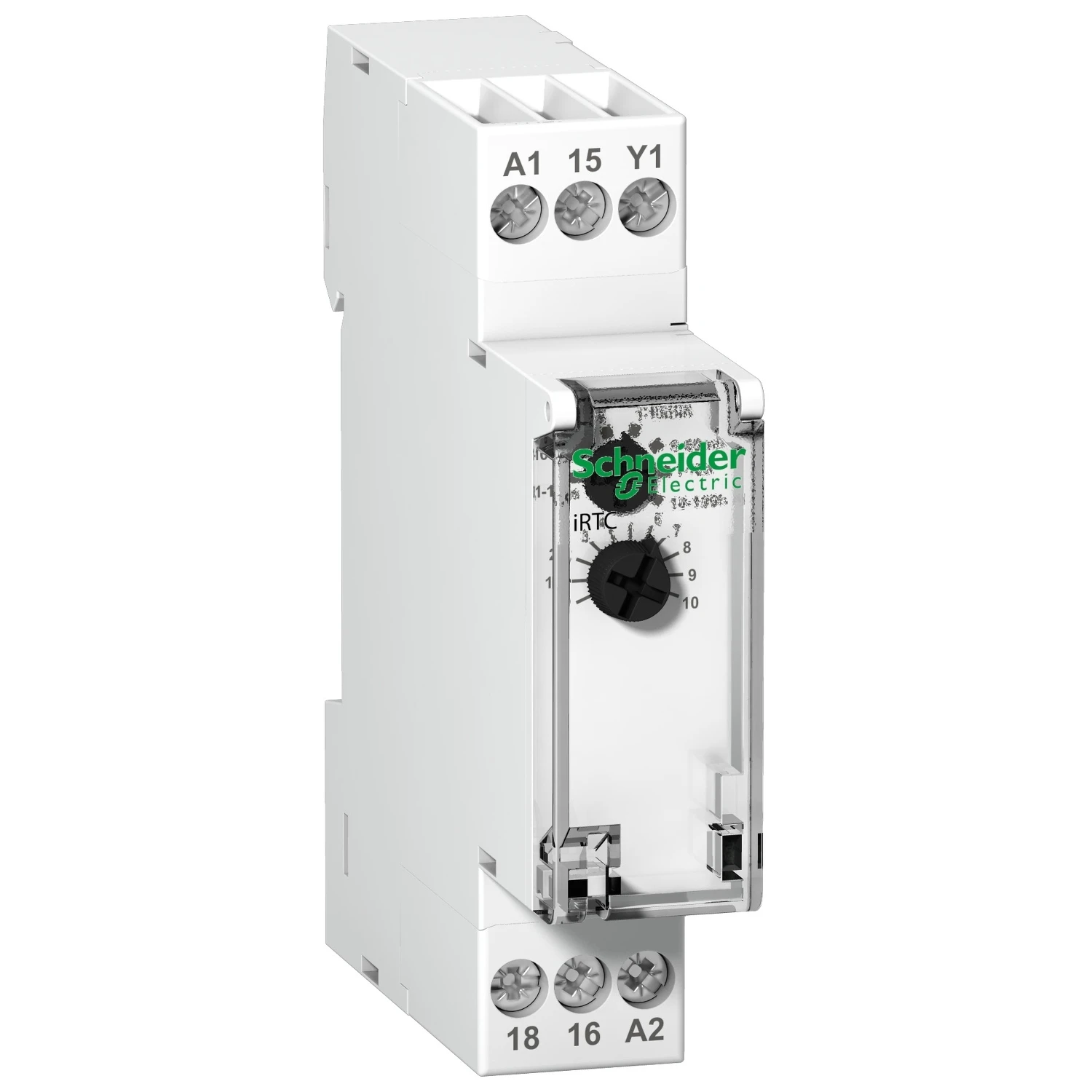

Schneider Electric Acti 9 iRTC Time Delay Relay White

This Acti 9 iRTC is a Time delay relay. The time delay range is from 0.1s to 100h. It delays de-energizing of a load upon opening of an auxiliary contact (push button). The load is de-energized at the end of time delay T. The operating frequency is 50Hz or 60Hz. The Uc control and power supply voltage is from 24VAC to 240VAC +/-10% and 24VDC +/-10%. The single time delay cycle starts only upon release of an auxiliary contact (push button). The precision of the device is +/- 10% of the full scale. The minimum duration of control impulse is 100ms. The maximum resetting time per voltage interruption is 100ms. The nominal switching current is 21A at 250VAC. The mechanical endurance under AC1 category is over 5 x 10exp6 switchning operations. The electrical endurance under AC1 category is over 10exp5 switchning operations. The type of excitation is analog (ou analogue) with single function. The device is flashing during time delay. It includes a changeover contact. The width in 9mm pitches is 2. The degree of protection is IP20. The dimensions are (W) 18mm x (H) 90mm x (D) 72mm. The weight is 65g. The operating temperature is -5°C to + 55°C. The storage temperature is -40°C to + 70°C. · · · Acti 9 is a DIN rail switchgear system that combines efficiency with safety to ensure maximum safety for you, your customers and their installations. · · Acti 9 is packed full of innovations. Acti 9 enjoys the benefits of Schneider Electric’s more than 40 years of experience. · · Acti 9 covers all applications, especially polluted environments and networks with absolute safety and improved continuity of service. Example: VisiTrip detects Faulty outgoers. · · Acti 9 is easy to choose, thanks to its meaningful part numbers. Example: A9XXX225 = 2P, 25A. · · Acti 9 is easy to install and environmentally friendly. Example: Its components are 100% recyclable and recoverable. · · Flexible, upgradeable solutions and simple operations · · Optimised design time, in particular for lighting solutions in buildings. · · Total coordination guaranteed by Schneider Electric. · · The electrical endurance under AC1 category is over 10exp5 switchning operations. · · The type of excitation is analog (ou analogue) with single function. The device is flashing during time delay.
