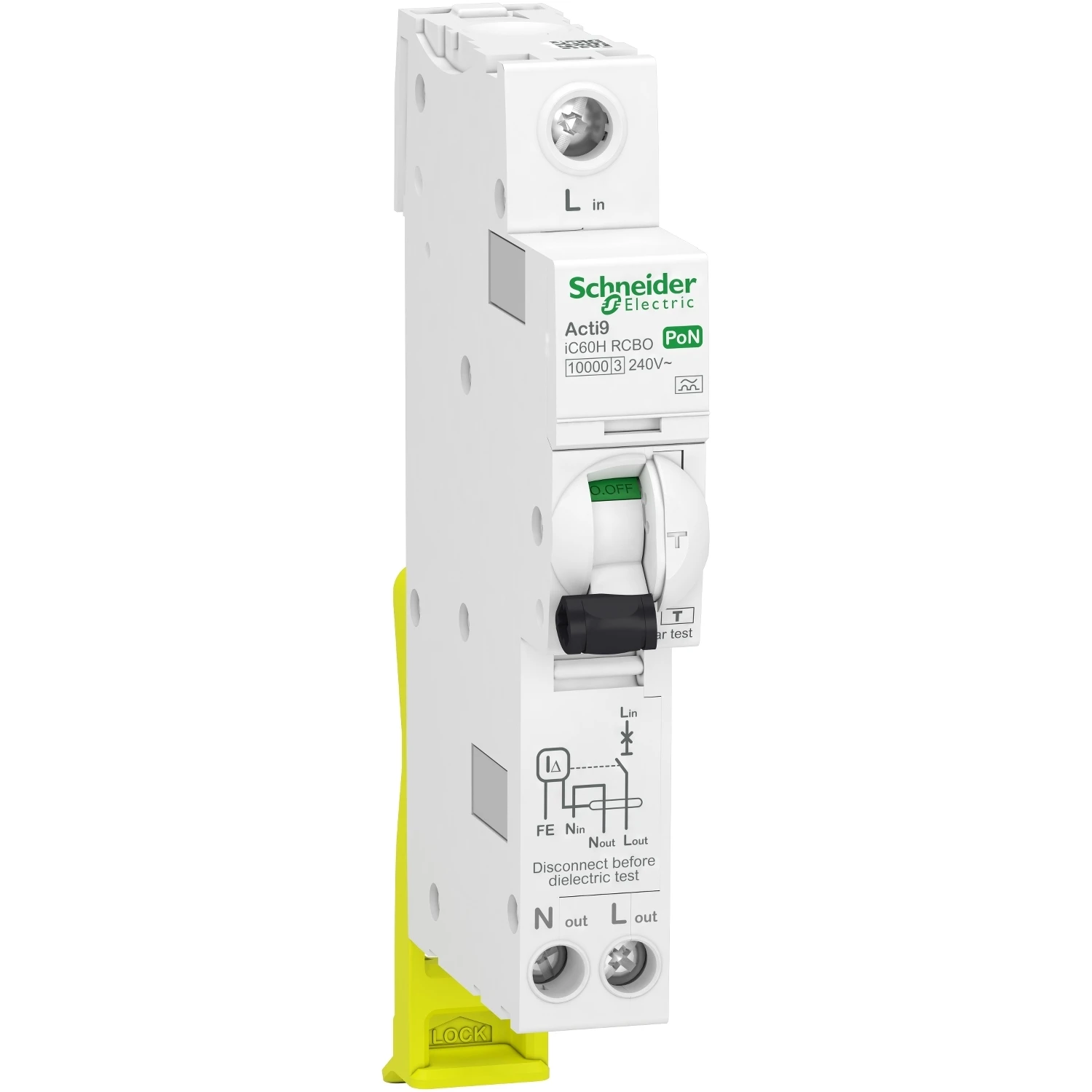

Schneider Electric Acti9 iC60H RCBO 1P+Ns 20A 10kA – Curve C – 100mA – Type A

Description

Technical Specifications  Technical Specifications Earth leakage circuit breaker/RCBO Recess depth 72.00 mm Rated short-circuit breaking capacity Icn according to EN 61009-1 10.00 kA Rated impulse-withstand voltage (Uimp) 4.00 kV Rated voltage 240.00 V Rated short-circuit breaking capacity according to EN 61009 – kA Surge current capacity 0.25 kA Pollution degree 3.00 Over voltage category 2.00 Number of poles (total) 2.00 Rated short-circuit breaking capacity IEC 60947-2 – kA Current limiting class 3.00 Rated fault current 0.10 A Rated current 20.00 A Number of protected poles 1.00 Rated insulation voltage Ui 400.00 V Width in number of modular spacings 1.00 Connectable conductor cross section solid-core 1.00 – 25.00 mm² Connectable conductor cross section multi-wired 1.00 – 16.00 mm² Ambient temperature during operating -15.00 – 60.00 °C Concurrently switching N-neutral No Anti-nuisance tripping version No With interlocking device No · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2205383
