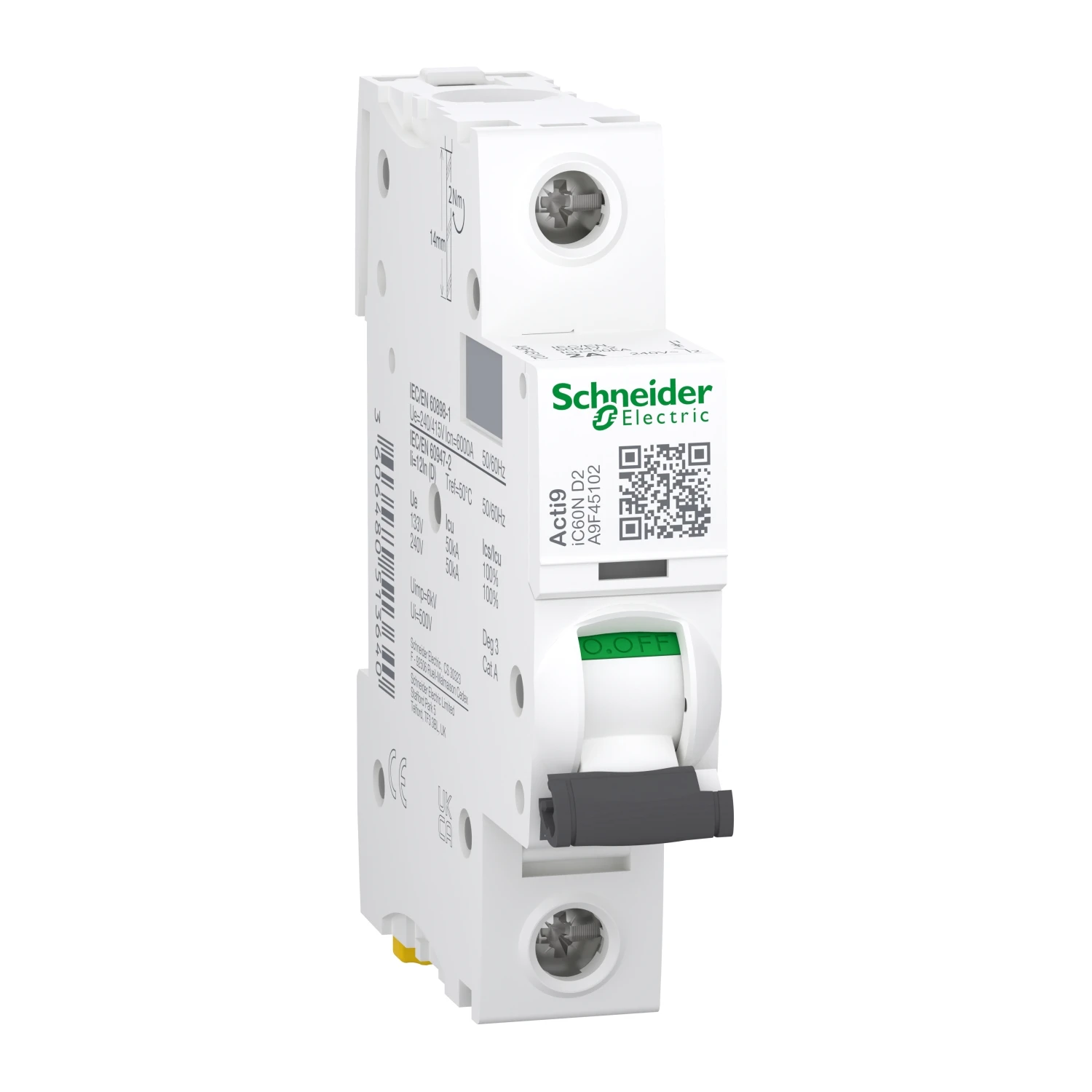

Schneider Electric Acti9 iC60N 1-Pole 2A 6/50kA Curve-D Miniature Circuit Breaker 18 x 85 x 78.5mm
£32.58 Incl. VAT
A9F45102 is a Miniature Circuit Breaker, against short-circuit currents, overload currents. It is suitable for industrial isolation according to IEC/EN 60947-2 standard. The fault tripping indication by a red mechanical indicator in circuit breaker front face. · · · This Acti9 iC60N is a low voltage miniature circuit breaker (MCB). · · It is a 1P circuit breaker with 1 protected pole, 2A rated current and D tripping curve. · · The rated short circuit breaking capacity goes up to 50kA at 220VAC to 240VAC conforming to EN/IEC 60947-2 standard and 6000A at 240VAC conforming to EN/IEC 60898-1 standard. · · It complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2. · · This miniature circuit breaker protects circuits against short circuit and overload current. · · Top or bottom electrical feeding · · Remote indication, open/closed/tripped, by optional auxiliary contact · · Overvoltage resistance by high level of industrial performances conception · · High performance limitation · · Fast closing independent of the speed of actuation of the toggle
Out of Stock
Description
Technical Specifications Technical Specifications Miniature circuit breaker (MCB) Tripping characteristic (type/curve) D Rated current 2.00 A Recess depth 44.50 mm Rated voltage 240.00 V Rated insulation voltage Ui 500.00 V Over voltage category 4.00 Number of protected poles 1.00 Pollution degree 3.00 Current limiting class 3.00 Number of poles (total) 1.00 Rated short-circuit breaking capacity Icn EN 60898 at 230 V 6.00 kA Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V 50.00 kA Rated impulse-withstand voltage (Uimp) 6.00 kV Width in number of modular spacings 1.00 Frequency 50.00 – 60.00 Hz Connectable conductor cross section solid-core 1.00 – 25.00 mm² Connectable conductor cross section multi-wired 1.00 – 16.00 mm² Ambient temperature during operating 35.00 – 70.00 °C Additional equipment possible Yes Concurrently switching N-neutral No · Technical Data Sheet – Click to Download
