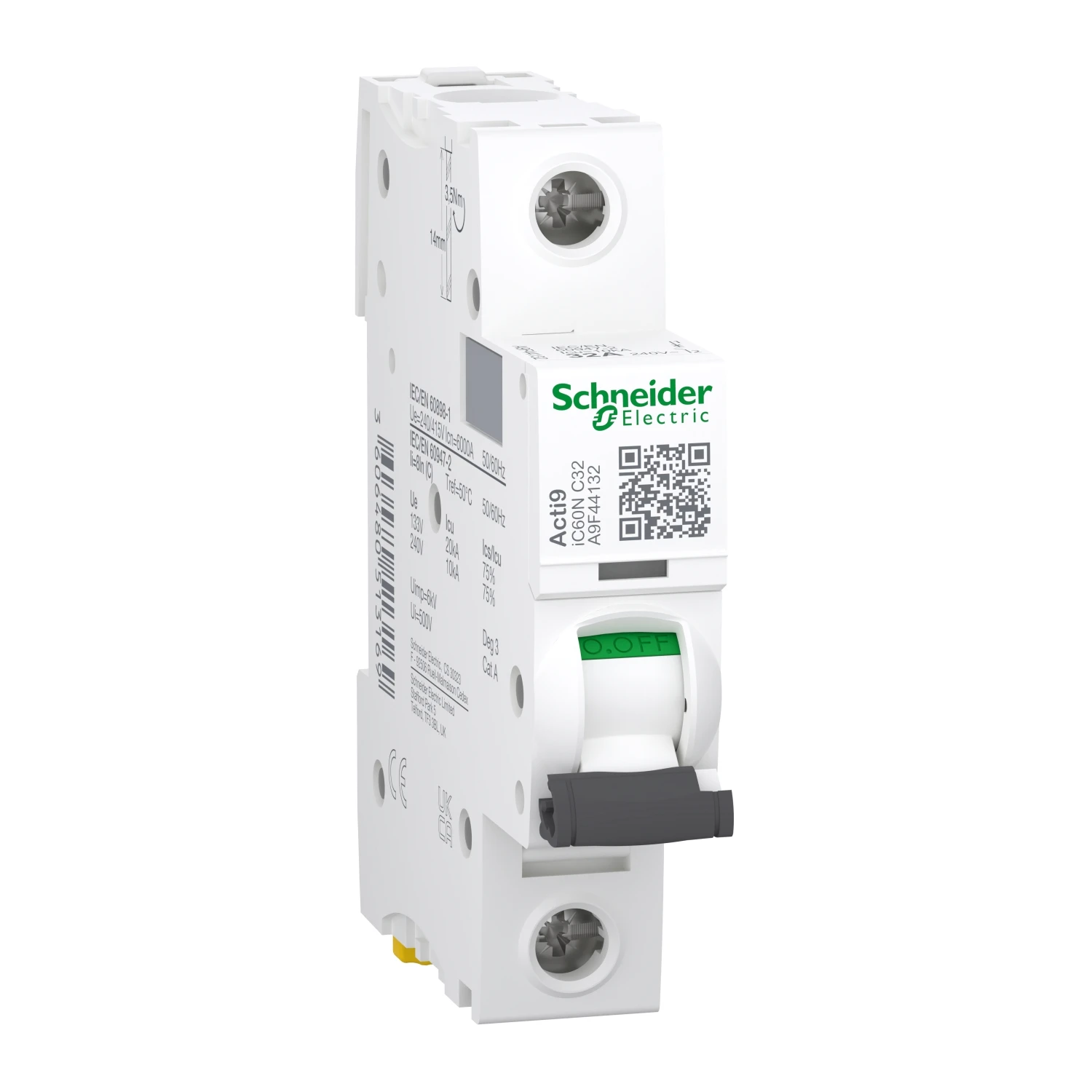

Schneider Electric Acti9 iC60N 1p 32A C Miniature Circuit breaker

Description

Technical Specifications  Technical Specifications Miniature circuit breaker (MCB) Rated current 32.00 A Recess depth 44.50 mm Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V 10.00 kA Rated short-circuit breaking capacity Icu IEC 60947-2 at 400 V – kA Rated impulse-withstand voltage (Uimp) 6.00 kV Rated short-circuit breaking capacity Icn EN 60898 at 230 V 6.00 kA Number of protected poles 1.00 Pollution degree 3.00 Number of poles (total) 1.00 Rated short-circuit breaking capacity Icn EN 60898 at 400 V – kA Over voltage category 4.00 Current limiting class 3.00 Rated insulation voltage Ui 500.00 V Rated voltage 240.00 V Width in number of modular spacings 1.00 Frequency 50.00 – 60.00 Hz Connectable conductor cross section solid-core 1.00 – 35.00 mm² Connectable conductor cross section multi-wired 1.00 – 25.00 mm² Ambient temperature during operating 35.00 – 70.00 °C Concurrently switching N-neutral No Additional equipment possible Yes · Technical Data Sheet – Click to Download
