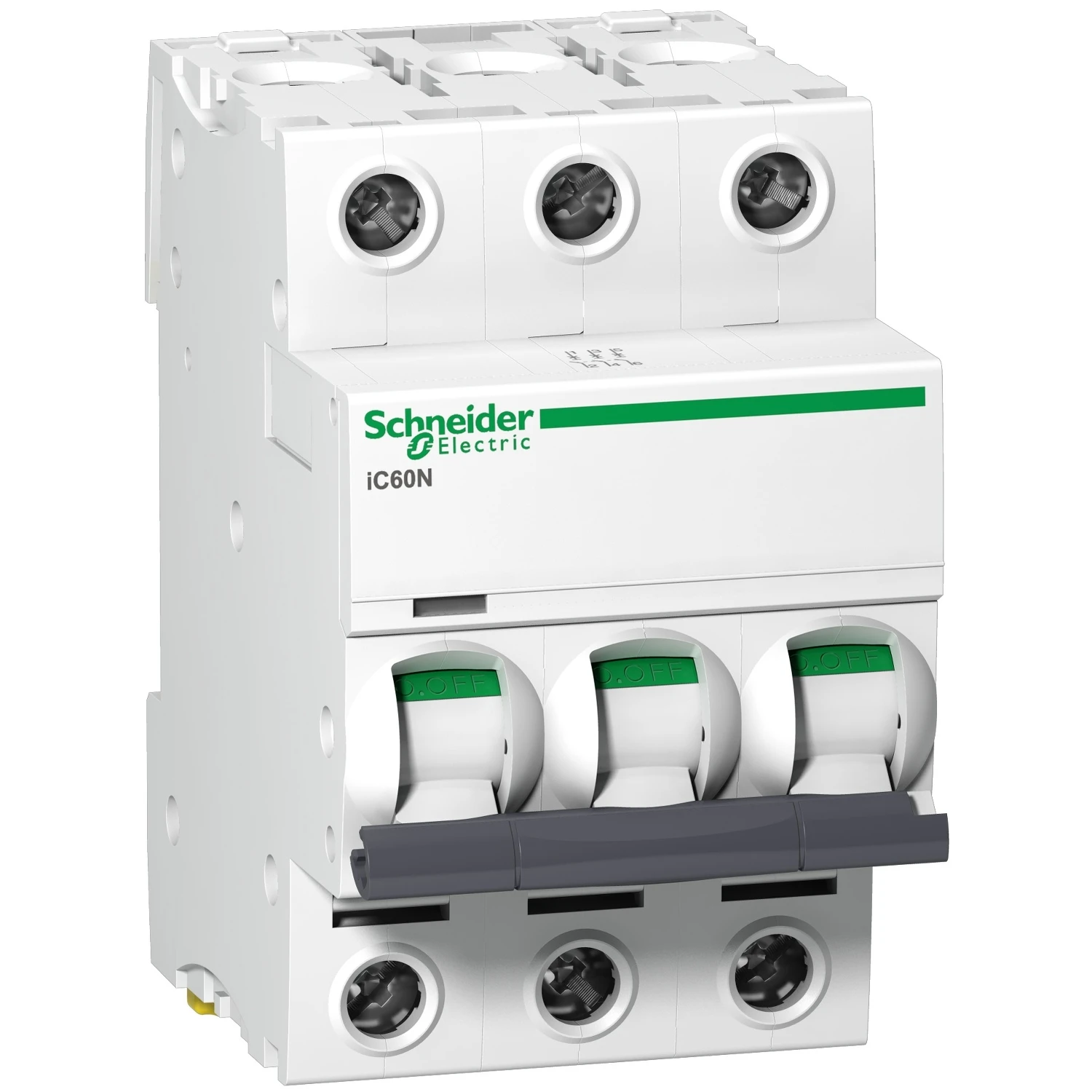

Schneider Electric Acti9 iC60N 3p 10A C Miniature Circuit breaker
£106.56 Incl. VAT
ACTI9 IC60N 3P 10A C MCB · · · This Acti9 iC60N is a low voltage miniature circuit breaker (MCB). · · It is a 3P circuit breaker with 3 protected poles, 10A rated current and C tripping curve. · · The rated short circuit breaking capacity goes up to 20kA at 220VAC to 240VAC conforming to EN/IEC 60947-2 standard and 6000A at 415VAC conforming to EN/IEC 60898-1 standard. · · It complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2. · · This miniature circuit breaker protects circuits against short circuit and overload current. · · Its unique VisiTrip indicator reduces intervention time by showing the faulty circuit. · · Its VisiSafe green strip guarantees the physical opening of the contacts to allow downstream maintenance. · · Its fast closing mechanism independent of manual operation improves its service life. · · It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles. · · The Ui rated insulation voltage is 500VAC.
Out of Stock
Description
Technical Specifications Technical Specifications Miniature circuit breaker (MCB) Recess depth 44.5 mm Rated current 10 A Rated voltage 415 V Rated insulation voltage Ui 500 V Number of poles (total) 3 Number of protected poles 3 Rated short-circuit breaking capacity Icn EN 60898 at 230 V – kA Rated impulse-withstand voltage (Uimp) 6 kV Width in number of modular spacings 3 Rated short-circuit breaking capacity Icu IEC 60947-2 at 400 V 10 kA Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V 20 kA Rated short-circuit breaking capacity Icn EN 60898 at 400 V 6 kA Current limiting class 3 Over voltage category 4 Pollution degree 3 Frequency 50 – 60 Hz Connectable conductor cross section solid-core 1 – 25 mm² Connectable conductor cross section multi-wired 1 – 16 mm² Ambient temperature during operating 35 – 70 °C Concurrently switching N-neutral No Additional equipment possible Yes · Technical Data Sheet – Click to Download
