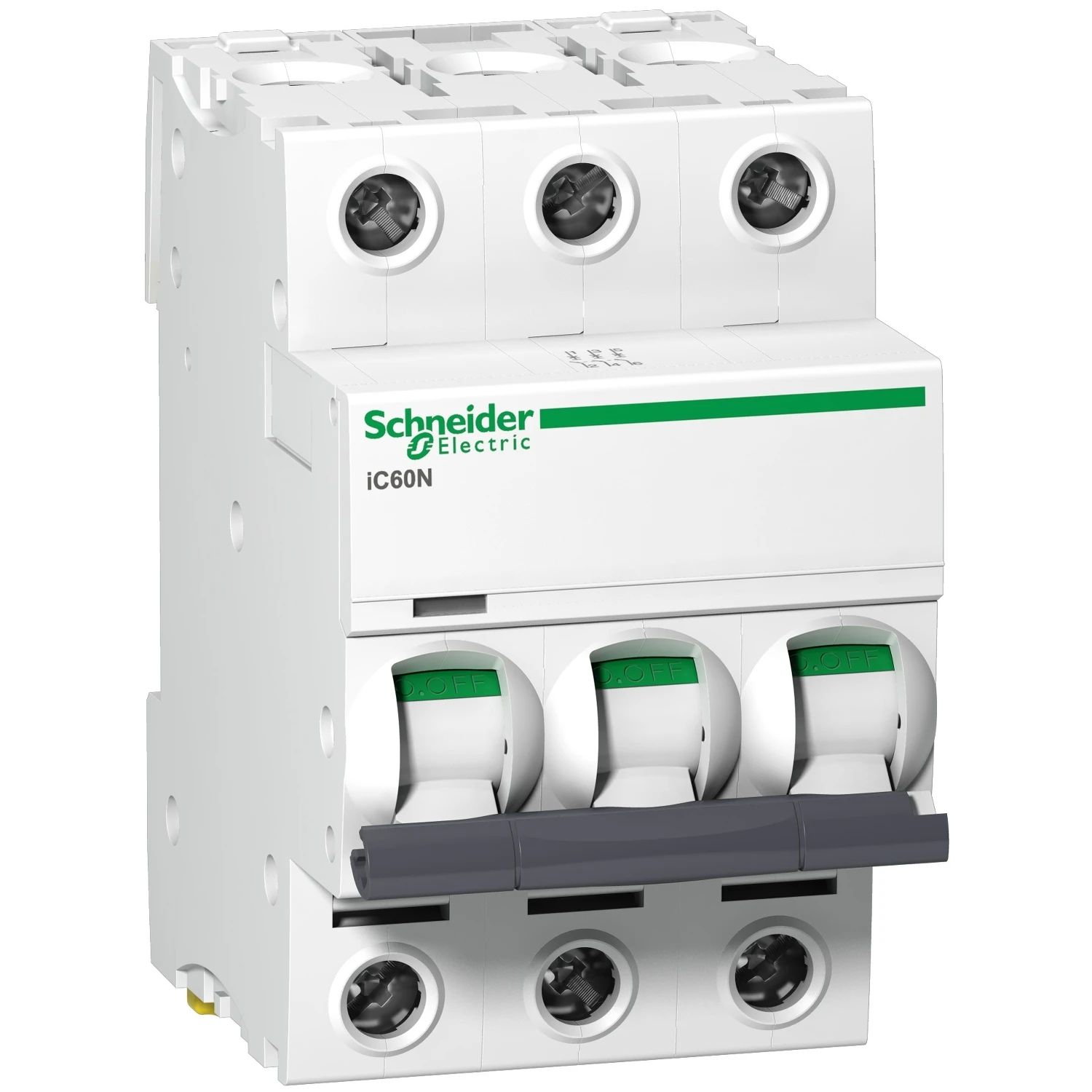

Schneider Electric Acti9 iC60N 3p 40A C Miniature Circuit breaker

Description

Technical Specifications  Technical Specifications Miniature circuit breaker (MCB) Recess depth 44.50 mm Rated current 40.00 A Rated voltage 415.00 V Width in number of modular spacings 3.00 Rated short-circuit breaking capacity Icu IEC 60947-2 at 400 V 10.00 kA Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V 20.00 kA Rated impulse-withstand voltage (Uimp) 6.00 kV Pollution degree 3.00 Number of protected poles 3.00 Rated insulation voltage Ui 500.00 V Number of poles (total) 3.00 Rated short-circuit breaking capacity Icn EN 60898 at 230 V – kA Rated short-circuit breaking capacity Icn EN 60898 at 400 V 6.00 kA Current limiting class 3.00 Over voltage category 4.00 Frequency 50.00 – 60.00 Hz Connectable conductor cross section solid-core 1.00 – 35.00 mm² Connectable conductor cross section multi-wired 1.00 – 25.00 mm² Ambient temperature during operating 35.00 – 70.00 °C Additional equipment possible Yes Concurrently switching N-neutral No · Technical Data Sheet – Click to Download
