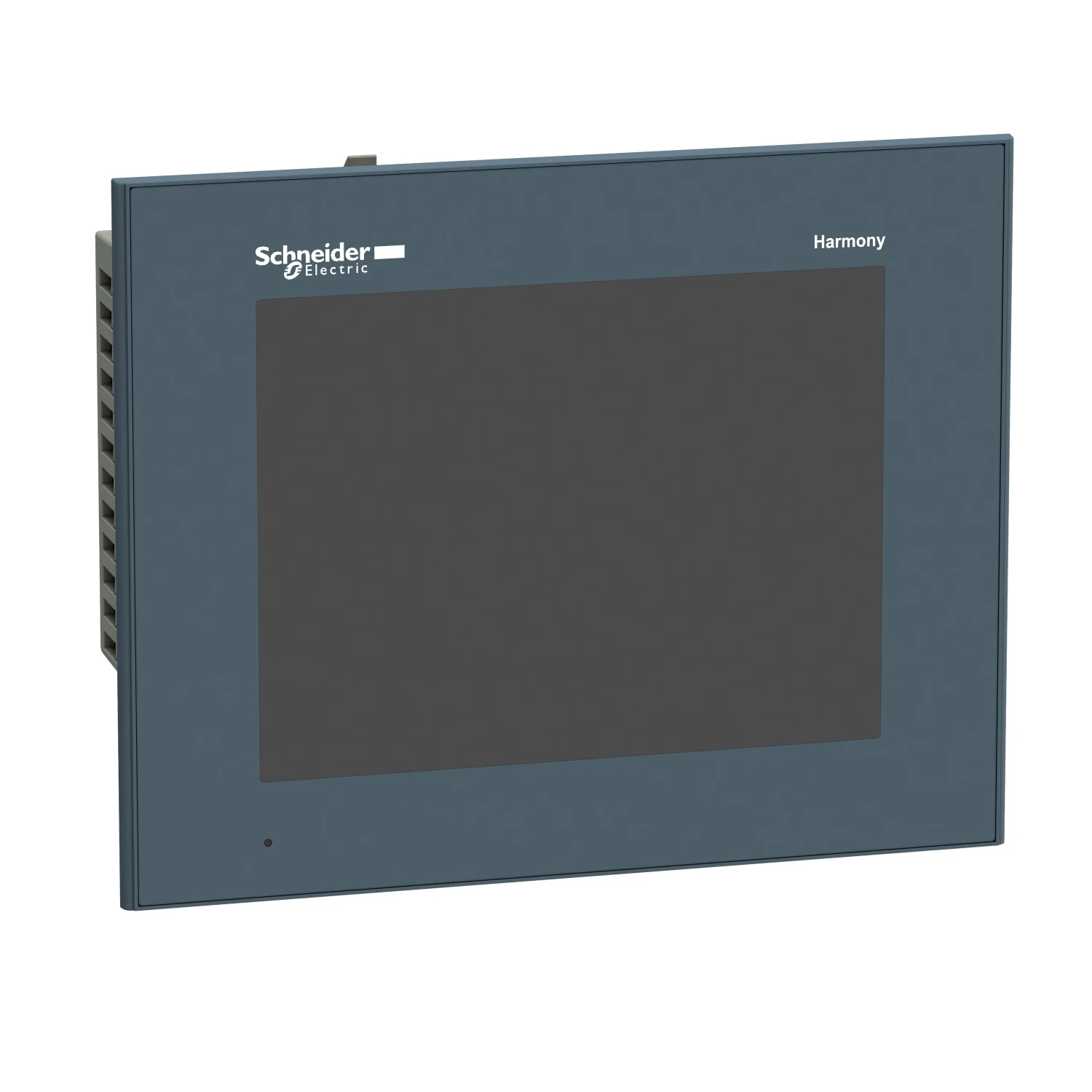

Schneider Electric advanced touchscreen panel 640 x 480 pixels VGA- 7.5" - TFT - 96 MB
Schneider Electric advanced touchscreen panel 640 x 480 pixels VGA- 7.5" - TFT - 96 MB
Schneider Electric advanced touchscreen panel 640 x 480 pixels VGA- 7.5" - TFT - 96 MB - Image 2

Schneider Electric advanced touchscreen panel 640 x 480 pixels VGA- 7.5″ – TFT – 96 MB

£2,326.28 Incl. VAT

This Magelis GTO IP65 touchscreen operator interface (HMI) is supplied with 24V DC, has a 7.5- color TFT LCD display, 640 x 480 pixels (VGA) and 96MB EPROM. It also has 1 SD card slot, 1 host + 1 mini-B USB ports, 1 RS232C port, 1 RS485 port and 1 Ethernet TCP/IP port. It is ideal for optimized information and communication with automation systems in industry and infrastructure such as compact machines, handling systems, food & beverage machines and pharmaceutical industry. The screen displays text messages, graphic objects and mimic diagrams, control and configuration of data. Its RS485 host port makes it ideal to supervise and control simple systems and machines. It is easily programmable with Vijeo Designer, with almost not coding needed. · · · This Magelis GTO IP65 touchscreen operator interface (HMI) is supplied with 24V DC, has a 7.5″ color TFT LCD display, 640 x 480 pixels (VGA) and 96MB EPROM. · · It also has 1 SD card slot, 1 host + 1 mini-B USB ports, 1 RS232C port, 1 RS485 port and 1 Ethernet TCP/IP port. · · It is ideal for optimized information and communication with automation systems in industry and infrastructure such as compact machines, handling systems, food & beverage machines and pharmaceutical industry. · · The screen displays text messages, graphic objects and mimic diagrams, control and configuration of data. · · Its RS485 host port makes it ideal to supervise and control simple systems and machines. · · It is easily programmable with Vijeo Designer, with almost not coding needed. · · It is easily programmable with Vijeo Designer, with almost not coding needed

Out of Stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: HMIGTO4310 Category: Brand: Product Code: 2500651751

Description

Technical Specifications  Technical Specifications Graphic panel Screen diagonal 7.5 inch Recess depth 60 mm Height of the front 173 mm Width of the front 218 mm Number of HW-interfaces RS-422 0 Number of HW-interfaces serial TTY 0 Number of HW-interfaces RS-232 1 Number of HW-interfaces RS-485 1 Number of HW-interfaces parallel 0 Number of HW-interfaces other 1 Number of HW-interfaces industrial Ethernet 2 Number of HW-interfaces USB 2 Number of HW-interfaces Wireless 0 Number of colours of the display 65536 Number of function buttons, programmable 0 Number of HW-interfaces PROFINET 0 Number of pixels, vertical 480 Number of pixels, horizontal 640 Number of buttons with LED 0 Number of system buttons 0 Number of grey-scales/blue-scales of display 16 Useful project memory/user memory 96000 kByte Number of password levels 0 Number of online languages 0 Operating temperature 0 – 50 °C Supply voltage AC 50 Hz – – – V Supply voltage AC 60 Hz – – – V Supply voltage DC 24 – 24 V With numeric keyboard No With colour display Yes Supporting protocol for other bus systems Yes Supporting protocol for MODBUS Yes Supporting protocol for SERCOS No Supporting protocol for PROFINET CBA No Supporting protocol for PROFINET IO No Radio standard WLAN 802.11 No Radio standard Bluetooth No Supporting protocol for SafetyBUS p No Supporting protocol for PROFIsafe No Supporting protocol for INTERBUS-Safety No Supporting protocol for DeviceNet Safety No Supporting protocol for AS-Interface Safety at Work No Supporting protocol for Foundation Fieldbus No Suitable for safety functions No Supporting protocol for PROFIBUS No Supporting protocol for TCP/IP No Supporting protocol for LON No Supporting protocol for SUCONET No Supporting protocol for DeviceNet No Supporting protocol for Data-Highway No Supporting protocol for ASI No Supporting protocol for KNX No Supporting protocol for INTERBUS No Supporting protocol for CAN No Wall mounting/direct mounting Yes With message system (incl. buffer and confirmation) Yes Process value representation (output) possible Yes With alpha numeric keyboard No With SW interfaces Yes With message indication Yes Rail mounting possible No IO link master Yes Supporting protocol for EtherNet/IP Yes Radio standard UMTS No Radio standard GSM No Radio standard GPRS No Process default value (input) possible Yes With recipes Yes Printer output available Yes Additional software components, loadable Yes · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2192605 · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2199821
