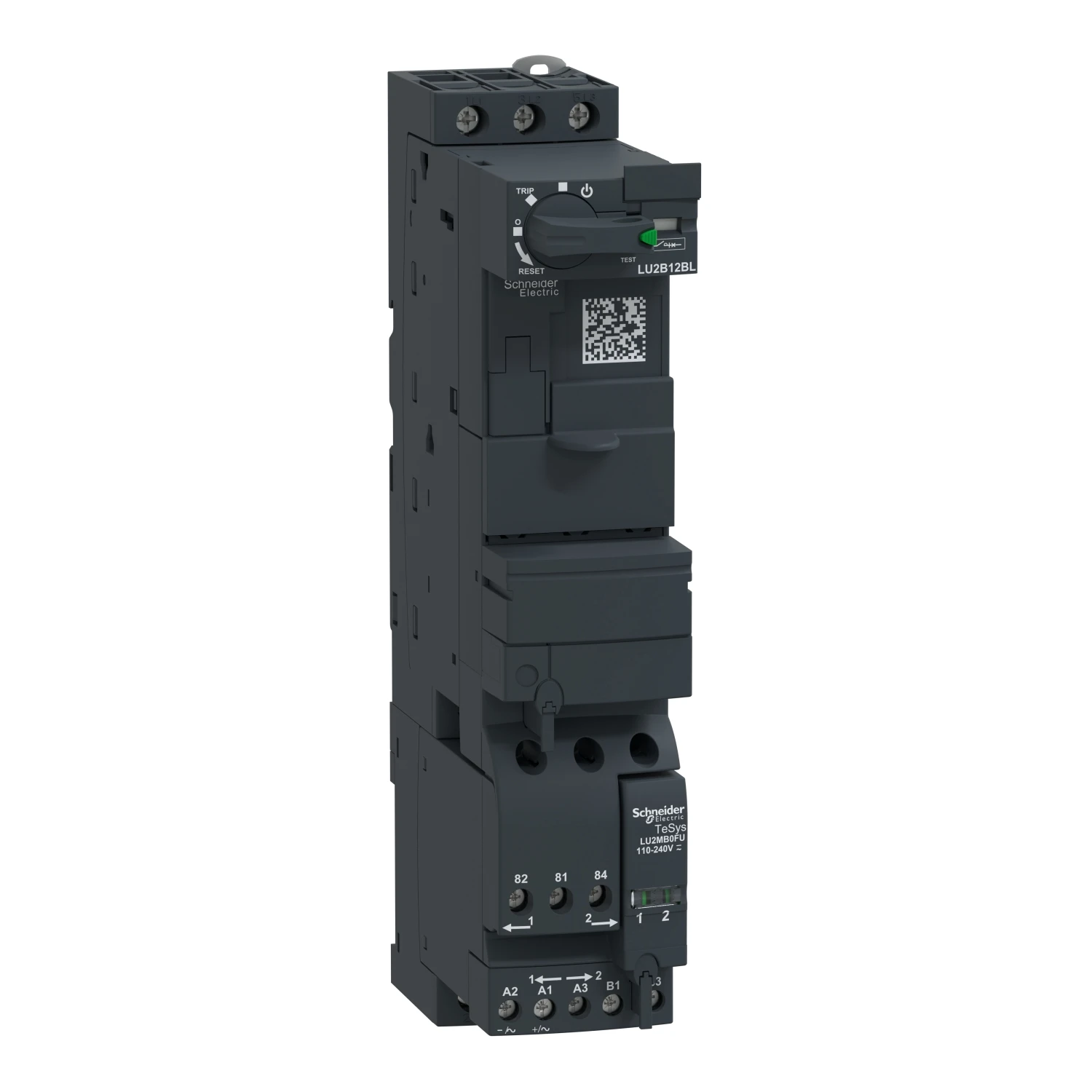

Schneider Electric Base Power For Reversing Direct On Line12A 24V Preassembled Screw Terminal
Schneider Electric Base Power For Reversing Direct On Line12A 24V Preassembled Screw Terminal
Schneider Electric Base Power For Reversing Direct On Line12A 24V Preassembled Screw Terminal - Image 2

Schneider Electric Base Power For Reversing Direct On Line12A 24V Preassembled Screw Terminal

£196.76 Incl. VAT

TeSys U standard reversing power base, 3 poles (3NO), rated 12A/690V, to be completed with a control unit LUC to form a TeSys U reversing starter controller, for 3-phase motor applications up to 5.5kW@400V. Base composed of power contacts, control coil, rotary handle, with a modular design for additional modules to form a -all in one- reversing starter controller with basic or advanced protection and control functions. It is equipped with a reverser module LU2MB0BL to be supplied with 24V DC, auxiliary signaling contacts (1NO+1NC), a control terminal block, blanking shutters covering the empty cavities. It provides a high breaking capacity Icu 50kA@400V, start-stop control guaranteed for 3600 cycles/hour. Very compact (45mm width), DIN-rail mounting and screw fixing, with a padlockable rotary handle. Certified when used in conjunction with a LUC control unit (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh). · · · TeSys U standard reversing power base, 3 poles (3NO), rated 12A/690V, to be completed with a control unit LUC to form a TeSys U reversing starter controller, for 3-phase motor applications up to 5.5kW@400V. · · Base composed of power contacts, control coil, rotary handle, with a modular design for additional modules to form a “all in one” reversing starter controller with basic or advanced protection and control functions. · · It is equipped with a reverser module LU2MB0BL to be supplied with 24V DC, auxiliary signaling contacts (1NO+1NC), a control terminal block, blanking shutters covering the empty cavities. · · It provides a high breaking capacity Icu 50kA@400V, start-stop control guaranteed for 3600 cycles/hour. · · Very compact (45mm width), DIN-rail mounting and screw fixing, with a padlockable rotary handle. · · Certified when used in conjunction with a LUC control unit (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).

Out of Stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: LU2B12BL Categories: , , , , , Brand: Product Code: 2500238082

Description

Technical Specifications  Technical Specifications Motor starter/Motor starter combination Height 224 mm Width 45 mm Number of command positions 3 Number of auxiliary contacts as normally open contact 1 Rated operation power at AC-3, 400 V 5.5 kW Rated operation current at AC-3, 400 V 12 A Number of indicator lights 0 Number of auxiliary contacts as normally closed contact 1 Rated conditional short-circuit current, type 2, 230 V 50000 A Rated conditional short-circuit current, type 2, 400 V 50000 A Ambient temperature, upper operating limit 70 °C Depth 126 mm Rated power, 460 V, 60 Hz, 3-phase 5.5 kW Rated operation power at AC-3, 230 V, 3-phase 3 kW Rated power, 575 V, 60 Hz, 3-phase 5.5 kW Rated conditional short-circuit current, type 1, 480 Y/277 V 10000 A Rated conditional short-circuit current, type 1, 600 Y/347 V 4000 A Rated operation current Ie 12 A Rated control supply voltage at AC 50 Hz – – – V Rated control supply voltage at AC 60 Hz – – – V Overload release current setting – – – A With transformer No Rated control supply voltage at DC 24 – 24 V Supporting protocol for TCP/IP No Supporting protocol for PROFIBUS No Supporting protocol for CAN No Supporting protocol for INTERBUS No Supporting protocol for ASI No Supporting protocol for MODBUS No Supporting protocol for Data-Highway No Suitable for emergency stop No Supporting protocol for SafetyBUS p No With fuse No External reset possible No With short-circuit release Yes Rail mounting possible Yes Temperature compensated overload protection No Supporting protocol for PROFINET CBA No Supporting protocol for EtherNet/IP No Supporting protocol for AS-Interface Safety at Work No Supporting protocol for Foundation Fieldbus No Supporting protocol for DeviceNet Safety No Supporting protocol for DeviceNet No Supporting protocol for PROFIsafe No Supporting protocol for SUCONET No Supporting protocol for LON No Supporting protocol for INTERBUS-Safety No Supporting protocol for SERCOS No Supporting protocol for other bus systems No Supporting protocol for PROFINET IO No · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2188172 · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2188241 · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2188406
