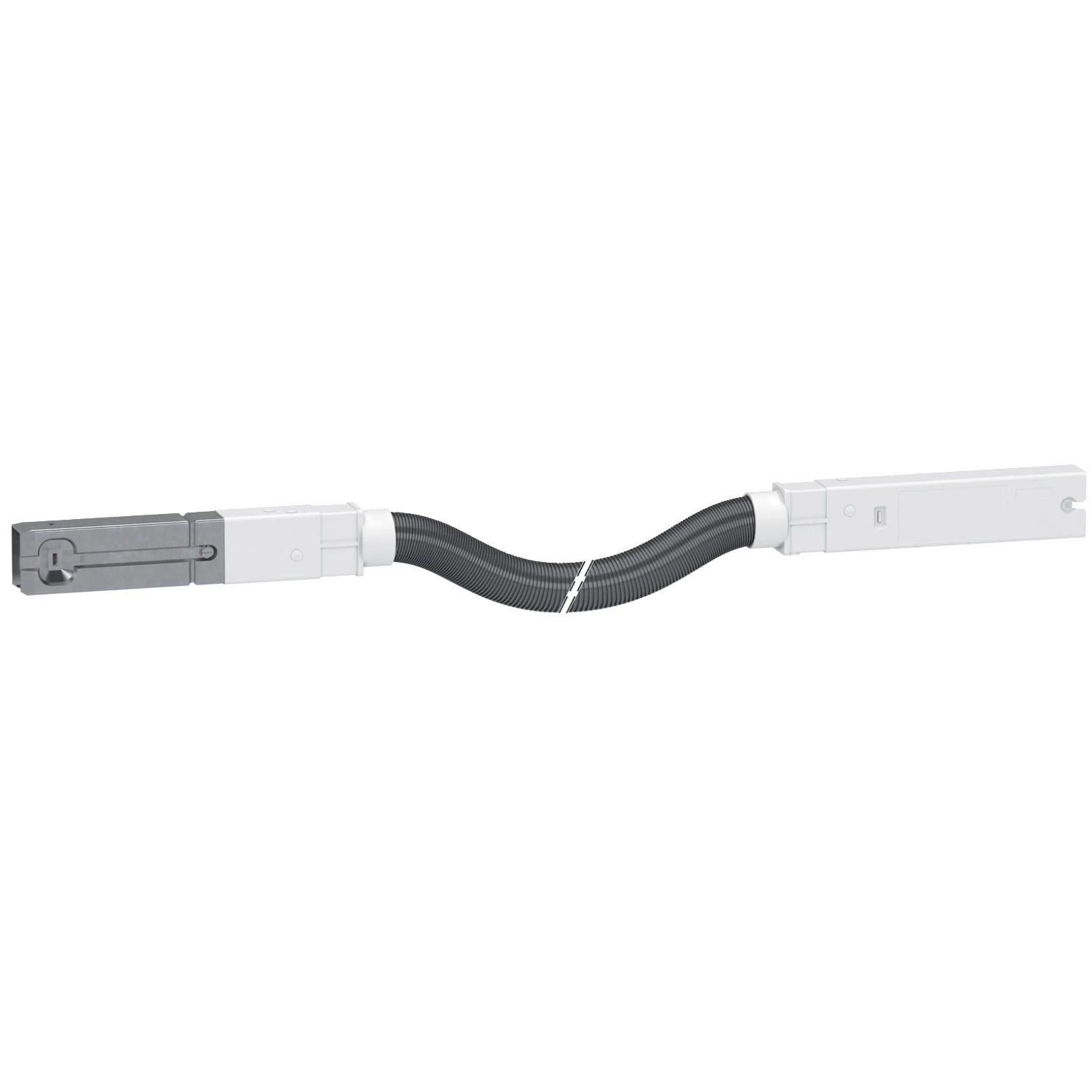

Schneider Electric Canalis Flexible Length 40A 2m White

This is a flexible length for Canalis KBA busbar trunking. Canalis KBA is designed for lighting and power socket distribution. The rated operational current is 40A at 35°C. The rated operational voltage is from 230VAC to 400VAC 50/60Hz. It embeds 1 electrical circuits with 3L+N+PE polarity. It provides IP55 protection conforming to IEC 60529 standard, which guarantees trunking protection against splashes and dust. It provides IK06 protection conforming to IEC 62262 standard against external mechanical impacts. The flexible length is 2m, and the section is 46mm x 46mm. It is made off RAL 9003 white lacquered sheet steel. Canalis KBA is compliant with IEC/EN 61439-6 standard. It is non flame propagating as per the recommendations of IEC 60332-3 standard. All the insulating and plastic materials are halogen free and have enhanced fire withstand capabilities (IEC 60695-2). · · · Part of the Canalis KBA system. · · It consists of a 2 m 40A Flexible elbow. · · All run components are delivered with a jointing unit. · · Weight: 105g · · Depth: 30mm · · Voltage: 230 – 400 V
