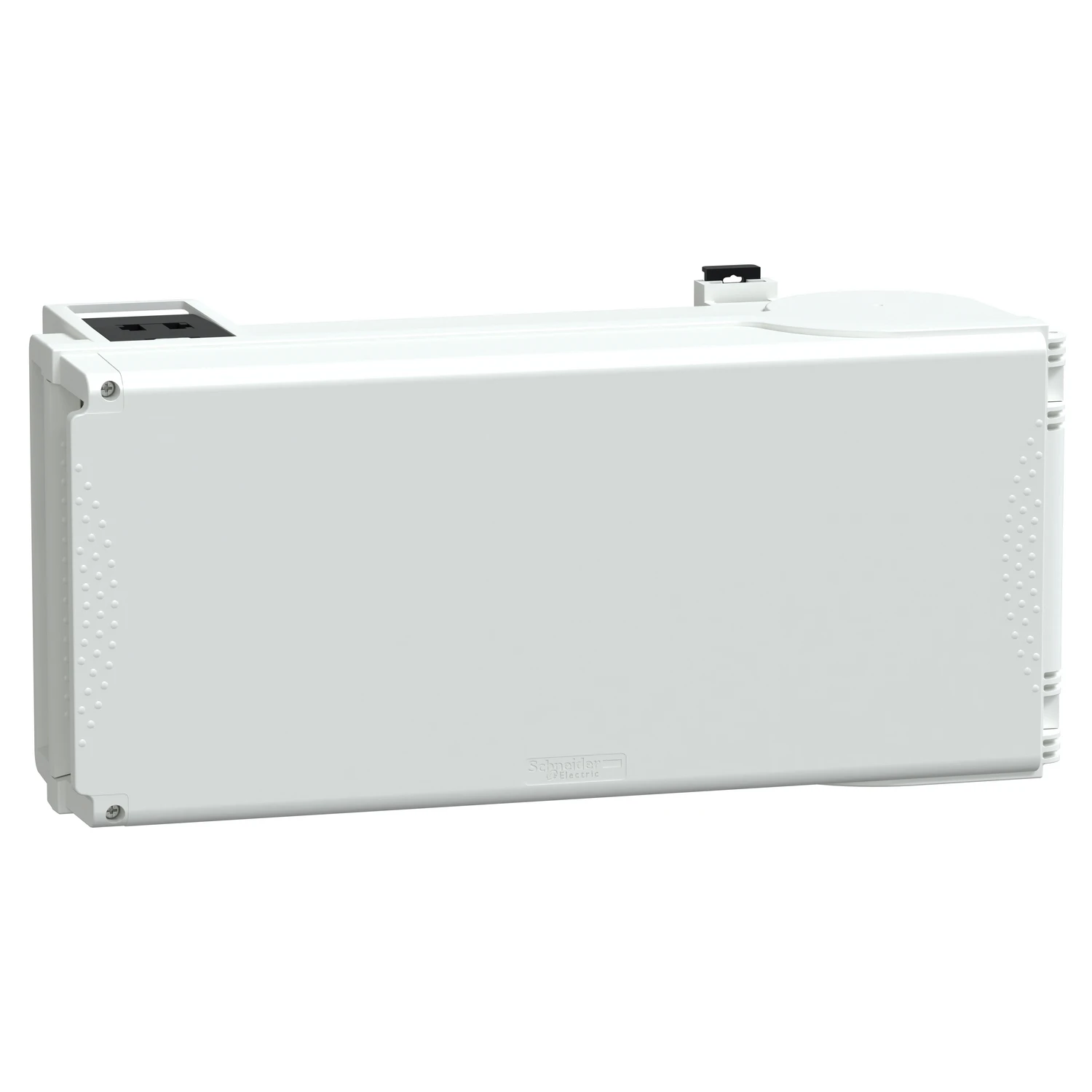

Schneider Electric Canalis Tap Off Unit 100A 3L+N+PE
£408.26 Incl. VAT
Canalis tap-off unit for KT and KS. It’s applied to medium power distribution and TT, IT and TN-S earthing system. The operational voltage is from 230VAC 50/60Hz to 690VAC 50/60Hz. The rated operational current is 100A at 35 ?. Mounting by Plug-in with fixed polarity with white RAL 9001 surface treatment and whose busbar trunking polarity is 3L + N + PE. It provided protection for size 00 fuses (Fuse to be ordered separately). It provided tap-off unit disconnection by right opening the door. Canalis KS busbar trunking compatibility with plug-in outlets, Canalis KT busbar trunking compatibility with KS type plug-in outlets. It provides IP55 protection which conforming to IEC 60529 standard. IK08 conforms to IEC 62262. It is compliant with both IEC 61439-1 and IEC 61439-6. It is also compliant with Green Premium (RoHS/REACH). · · · Canalis tap-off unit for KT and KS. · · It’s applied to medium power distribution and TT, IT and TN-S earthing system. · · The operational voltage is from 230VAC 50/60Hz to 690VAC 50/60Hz. · · The rated operational current is 100A at 35 ℃.
Out of Stock
Description
Technical Specifications Technical Specifications Tap off unit for busbar trunk Height 220.00 mm RAL number 9001.00 Width 128.00 mm Number of CEE socket outlets 0.00 Rated current at AC 50 Hz 100.00 A Number of poles 3.00 Length 444.00 mm Number of conductors (without earthing) 4.00 Number of NEMA socket outlets 0.00 Number of other socket outlets 0.00 Rated voltage at AC 50 Hz 230.00 – 690.00 V With locking No Phase selection No · Technical Data Sheet – Click to Download
