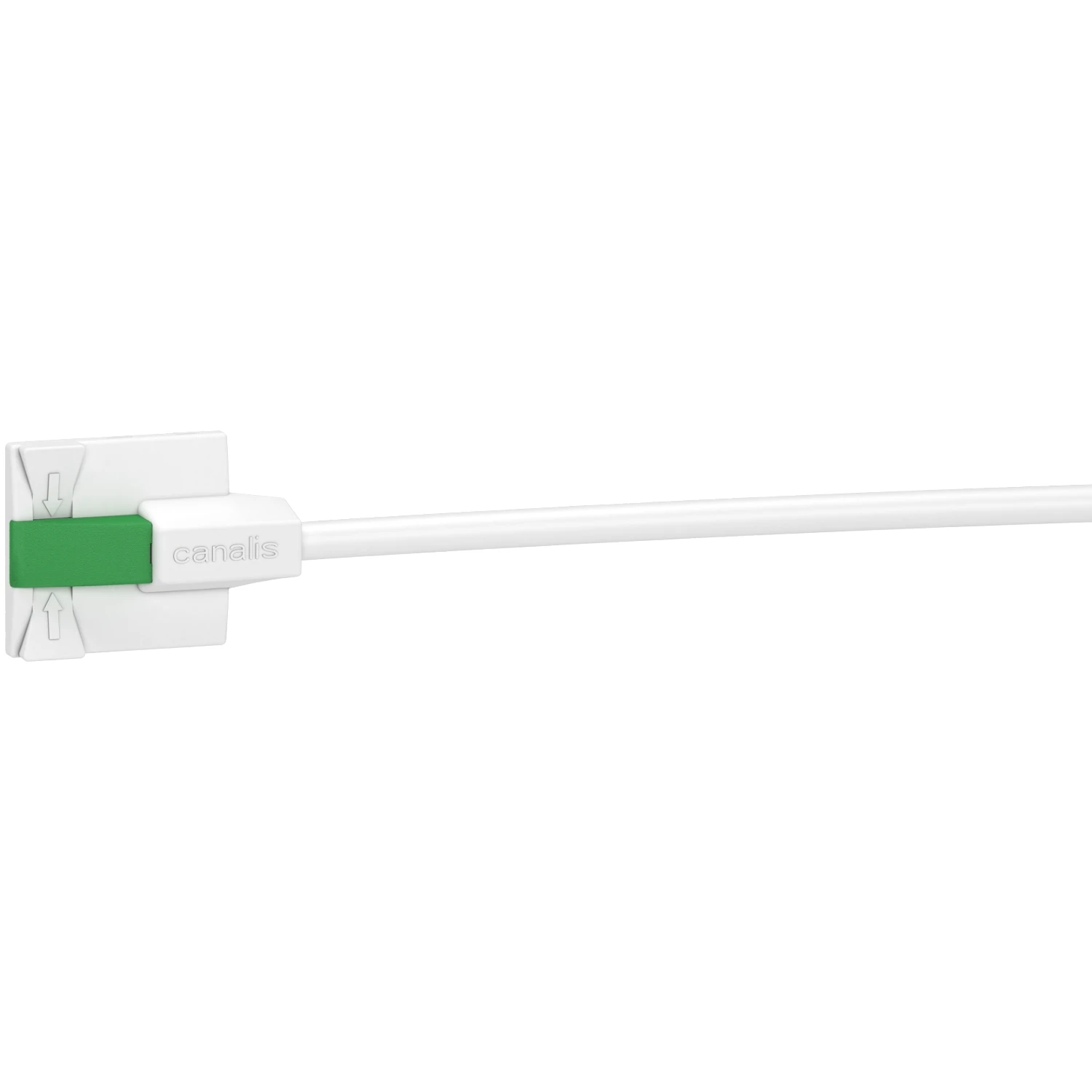

Schneider Electric Canalis Tap-Off Unit 10A Fixed Polarity Pre-Wired L1+N Green

This is a tap-off unit for direct connection on Canalis KBA, KBB and KDP busbar trunkings. Canalis KBA, KBB and KDP are designed for lighting and power socket distribution. The rated operational current is 10A at 35 °C. The operational voltage is from 230VAC 50/60Hz to 240VAC 50/60Hz. This tap-off unit is pre-wired with SO5Z1-F 3×1.5mm² cable and 0.80m long. It is a single phase tap-off unit with a fixed polarity L1+N+PE. The lock is in green colour. It provides IP55 protection conforming to IEC 60529 standard, which guarantees trunking protection against splashes and dust. It provides IK06 protection conforming to IEC 62262 standard against external mechanical impacts. Sold in lots of 10 units. Canalis products are compliant with IEC/EN 61439-6 standard. It is non flame propagating as per the recommendations of IEC 60332-3 standard. All the insulating and plastic materials are halogen free and have enhanced fire withstand capabilities (IEC 60695-2). · · · Canalis tap-off unit for KBA and KBB. · · It applied to lighting with cream RAL 9001 surface treatment. · · The operational voltage is from 230VAC 50/60Hz to 240VAC 50/60Hz. · · The rated operational current is 10A at 35 ℃. · · Depth: 12mm · · Voltage: 230 – 240 V
