Schneider Electric Canalis Tap-Off Unit 16A Without Protection Fixed Polarity 3L+N+Pe
Schneider Electric Canalis Tap-Off Unit 16A Without Protection Fixed Polarity 3L+N+Pe

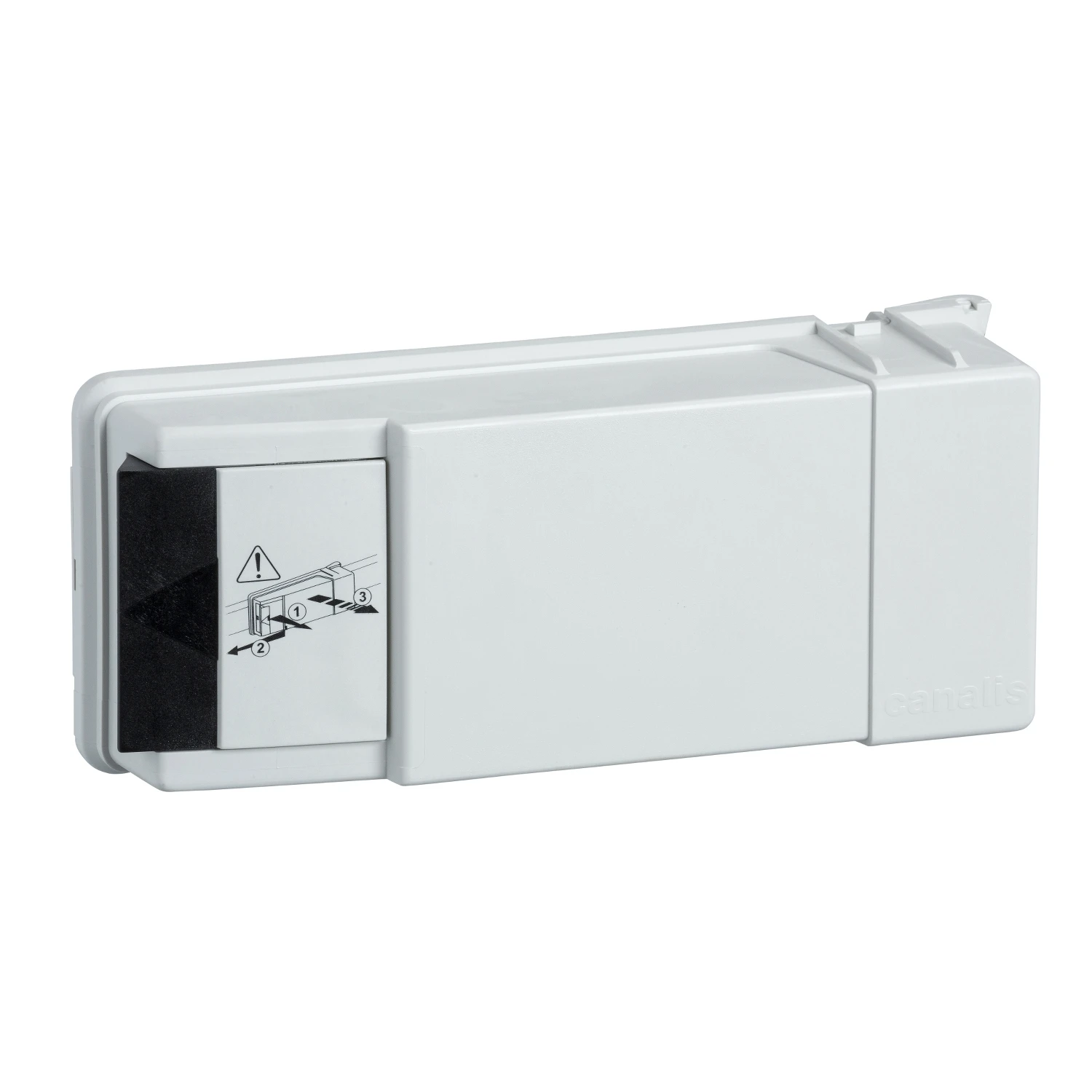

Schneider Electric Canalis Tap-Off Unit 16A Without Protection Fixed Polarity 3L+N+Pe - Image 2

Schneider Electric Canalis Tap-Off Unit 16A Without Protection Fixed Polarity 3L+N+Pe

£49.43 Incl. VAT

This is a tap-off unit for direct connection on Canalis KBA, KBB and KDP busbar trunkings. Canalis KBA, KBB and KDP are designed for lighting and power socket distribution. The rated operational current is 16A at 35 °C. The operational voltage is from 230VAC 50/60Hz to 240VAC 50/60Hz. Polarity is 3L+PE, with mobile studs. It provides IP55 protection conforming to IEC 60529 standard, which guarantees trunking protection against splashes and dust. It provides IK06 protection conforming to IEC 62262 standard against external mechanical impacts. Canalis products are compliant with IEC/EN 61439-6 standard. It is non flame propagating as per the recommendations of IEC 60332-3 standard. All the insulating and plastic materials are halogen free and have enhanced fire withstand capabilities (IEC 60695-2). · · · Canalis tap-off unit for KBA and KBB. · · It applied to lighting with cream RAL 9001 surface treatment. · · The operational voltage is from 230VAC 50/60Hz to 240VAC 50/60Hz. · · The rated operational current is 16A at 35 ℃. · · Depth: 38mm · · Voltage: 230 – 240 V

Out of Stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: KBC16DCB40 Category: Brand: Product Code: 2500147020

Description

Technical Specifications  Technical Specifications Tap off unit for busbar trunk Width 38.00 mm Height 68.00 mm Number of CEE socket outlets 0.00 RAL number 9001.00 Rated current at AC 50 Hz 16.00 A Number of conductors (without earthing) 4.00 Number of poles 5.00 Length 205.00 mm Number of NEMA socket outlets 0.00 Rated voltage at AC 50 Hz 230.00 – 400.00 V With locking Yes Phase selection Yes Number of other socket outlets 0.00 · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2189611
