Schneider Electric Circuit Breaker Drawout Four Pole 2500A No Micrologic

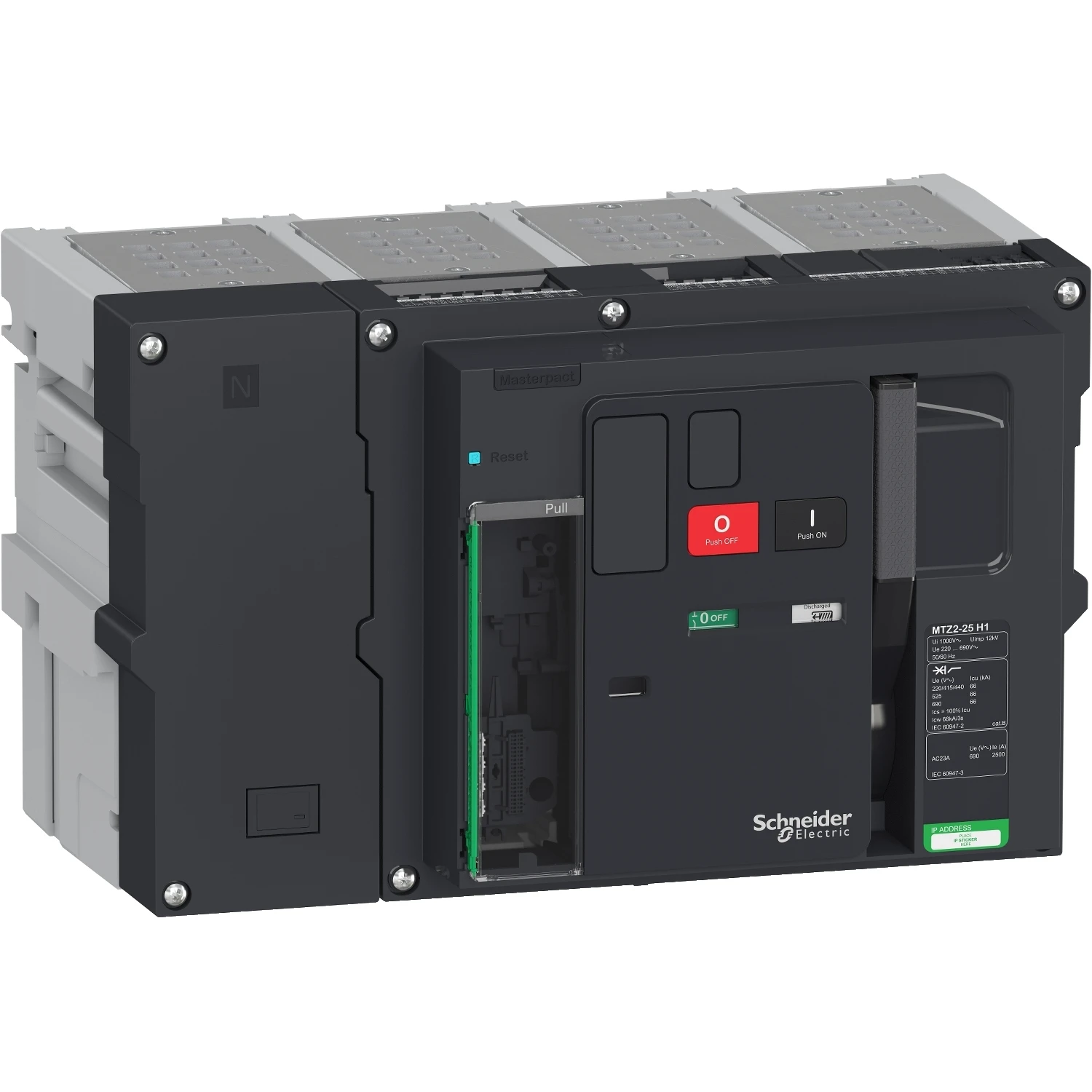

MTZ2 H1 2500A 4P D/O w/o MLogic · · · This is a basic frame for 4 poles Masterpact MTZ2 25H1 drawout circuit breaker. · · Masterpact MTZ is the last generation of high current air circuit breakers up to 6300 A embedding advanced digital technologies. · · Masterpact MTZ is designed to protect electrical systems from damage caused by overloads, short circuits and equipment ground faults. · · The breaking capacity (Icu) is 66kA rms at 440VAC 50/60Hz. · · The rated current is 2500A. · · The basic frame must be associated with the corresponding chassis which has also to be ordered separately. · · This basic frame is compatible with Micrologic X control unit which has to be ordered separately. · · With Micrologic X control unit, Masterpact MTZ contributes to safety and energy efficiency. · · It can be equipped with a variety of optional functions and accessories. · · The dimensions are 556mm (W) x 439mm (H) x 403mm (D).
