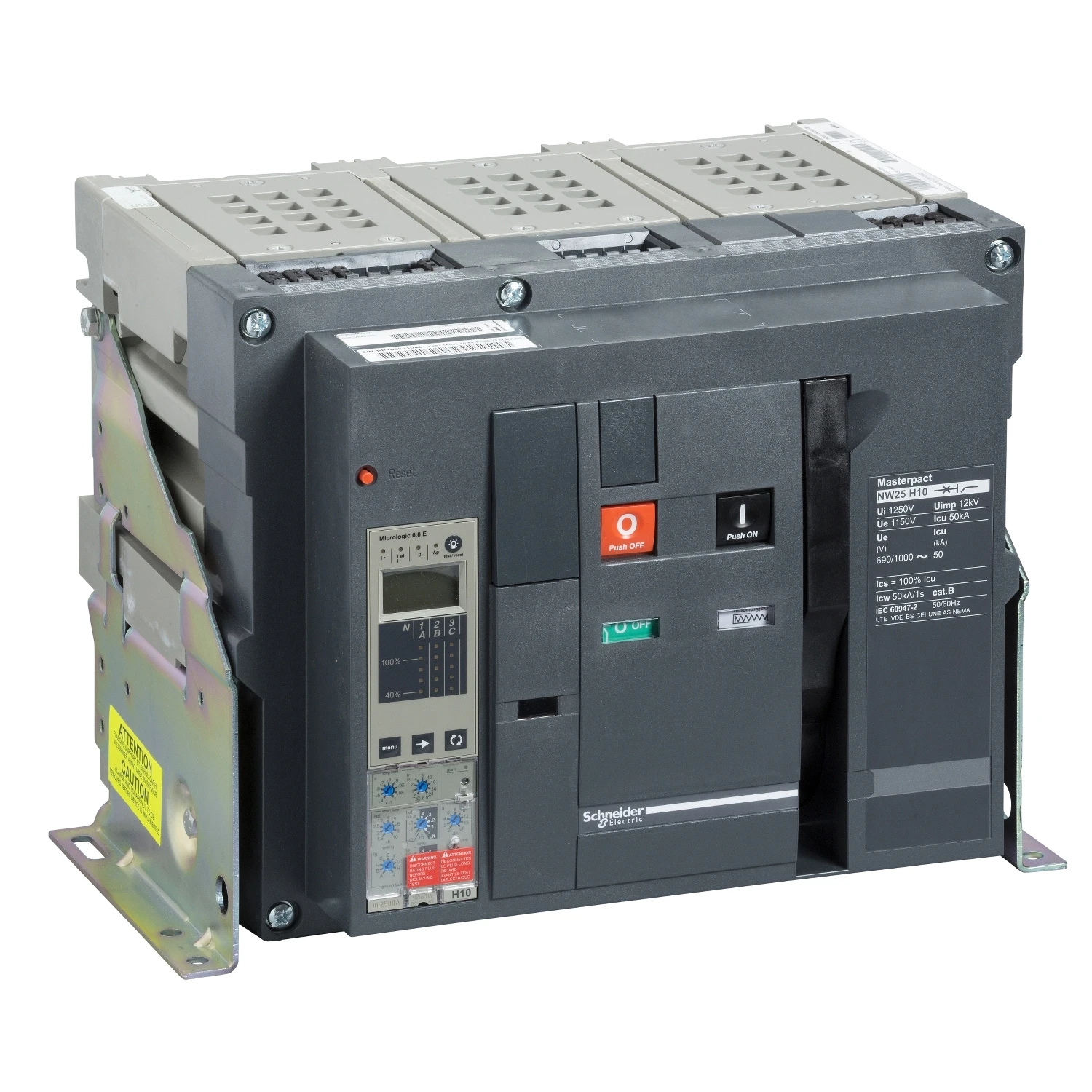

Schneider Electric Circuit breaker Masterpact NW20H1, 2000A, 3p, drawout, w/o trip unit
£9,958.02 Incl. VAT
circuit breaker Masterpact NW20H1 – 2000 A – 3 poles – drawout – w/o trip unit. · · · Circuit breakers to protect lines up to 6300 A · · Part of PacT Series · · The worldwide benchmark for high current circuit breakers
Out of Stock
Description
Technical Specifications Technical Specifications Moulded case circuit breaker (MCCB) Number of auxiliary contacts as normally open contact 0 Number of poles 3 Rated permanent current Iu 2000 A Number of auxiliary contacts as change-over contact 5 Rated short-circuit breaking capacity Icu at 400 V, 50 Hz 65 kA Rated voltage 690 – 690 V Number of auxiliary contacts as normally closed contact 0 Motor drive integrated No Motor drive optional Yes Switched-off indicator available No Integrated earth fault protection No Suitable for DIN rail (top hat rail) mounting No · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2186649
