Schneider Electric Climasys forced vent. 54m3/h, 230V, 2metal grilles and 2 anti-insect f
£69.72 Incl. VAT

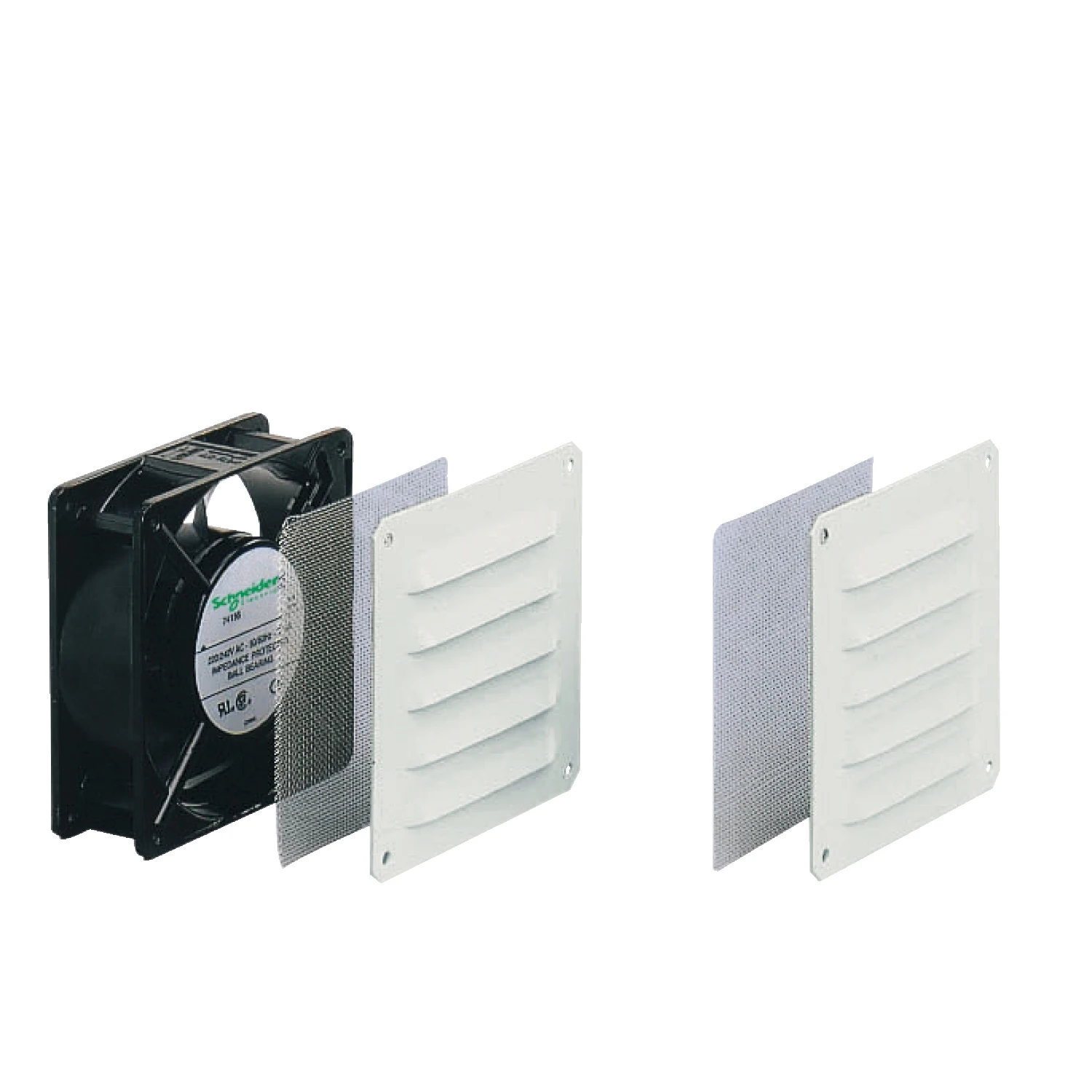

ClimaSys CV Axial motor ventilator with 2 metal outlet grilles and 2 anti-insect filters. 230V 50Hz or 60Hz. 22 W 50 Hz, 20 W 60 Hz. Free flow rate of 170 m3/h at 50 Hz and 208 m3/h at 60 Hz. 120 x 120 x 38 mm. Cut-out dimensions of 96 x 96 mm. Metal Outlet grilles, Steel made, epoxy-polyester powder finish, Grey RAL 7035, IP33 Protection, IK10 Power cable included. 2 protective grilles on the front and rear surfaces. Protection IP33. · · · Free flow rate of 170 m3/h at 50 Hz and 208 m3/h at 60 Hz. · · 22 W 50 Hz, 20 W 60 Hz. · · Cut-out dimensions of 96 x 96 mm.
Out of Stock
Description
Technical Specifications Technical Specifications Ventilator for enclosure RAL number 7035 Height 120 mm Width 120 mm Depth 38 mm Number of fans 1 Rated power 18 W Noise emission 50 dB(A) Volume flow, freeblowing 54 m³/h Operating voltage at DC – – – V EMC-version No Operating voltage at AC 60 Hz 230 – 230 V Operating voltage at AC 50 Hz 230 – 230 V Suitable for 19 inch rack mounting No Suitable for wall built-in No With protective cover Yes Built as slide-in ventilator Yes Air circulator Yes With filter Yes Roof ventilator No · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2188624 · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2191431
