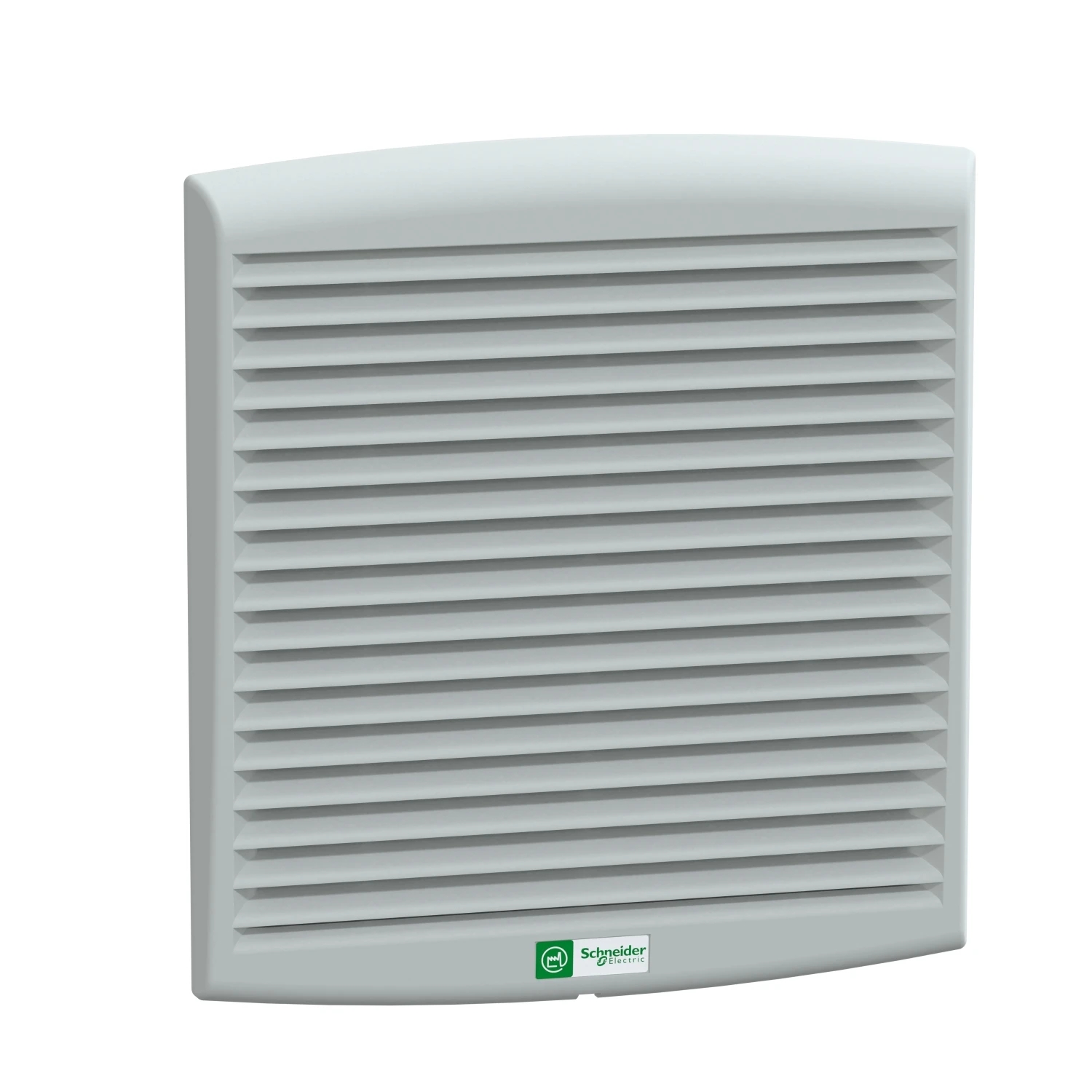

Schneider Electric ClimaSys forced vent. IP54, 165m3/h, 24V DC, with outlet grille and fi
£266.18 Incl. VAT
ClimaSys forced vent. IP54, 165m3/h, 24V DC, with outlet grille and filter G2. range: ClimaSys – product name: ClimaSys CV – product or component type: fan – type of ventilation filter: standard. · · · Provides efficient and reliable cooling for various applications. · · Made of injected thermoplastic (ASA PC) for a reliable and efficient cooling system compliant to UL 94 V-0. · · Comes with a filter, outlet grille, and protective grilles. · · Features an anti-insect filter for added convenience. · · 5.Noise level between 50-51 dB for quiet operation. · · IP54 degree of protection for superior resistance to dust and water. · · Versatile usage in ambient air temperatures ranging from -10 to 70°C. · · Ball-bearing type with maximum pressure of 50 Pa and power range of 7.6 W.
Out of Stock
Description
Technical Specifications Technical Specifications Ventilator for enclosure Width 248.00 mm Depth 104.00 mm Number of fans 1.00 Volume flow, freeblowing 165.00 m³/h Rated power 8.00 W Noise emission 51.00 dB(A) Height 268.00 mm RAL number 7035.00 Operating voltage at DC 24.00 – 24.00 V Operating voltage at AC 50 Hz – – – V Operating voltage at AC 60 Hz – – – V Suitable for wall built-in No EMC-version No Suitable for 19 inch rack mounting No With protective cover Yes Built as slide-in ventilator Yes Air circulator Yes With filter Yes Roof ventilator No · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2191431 · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2192470
