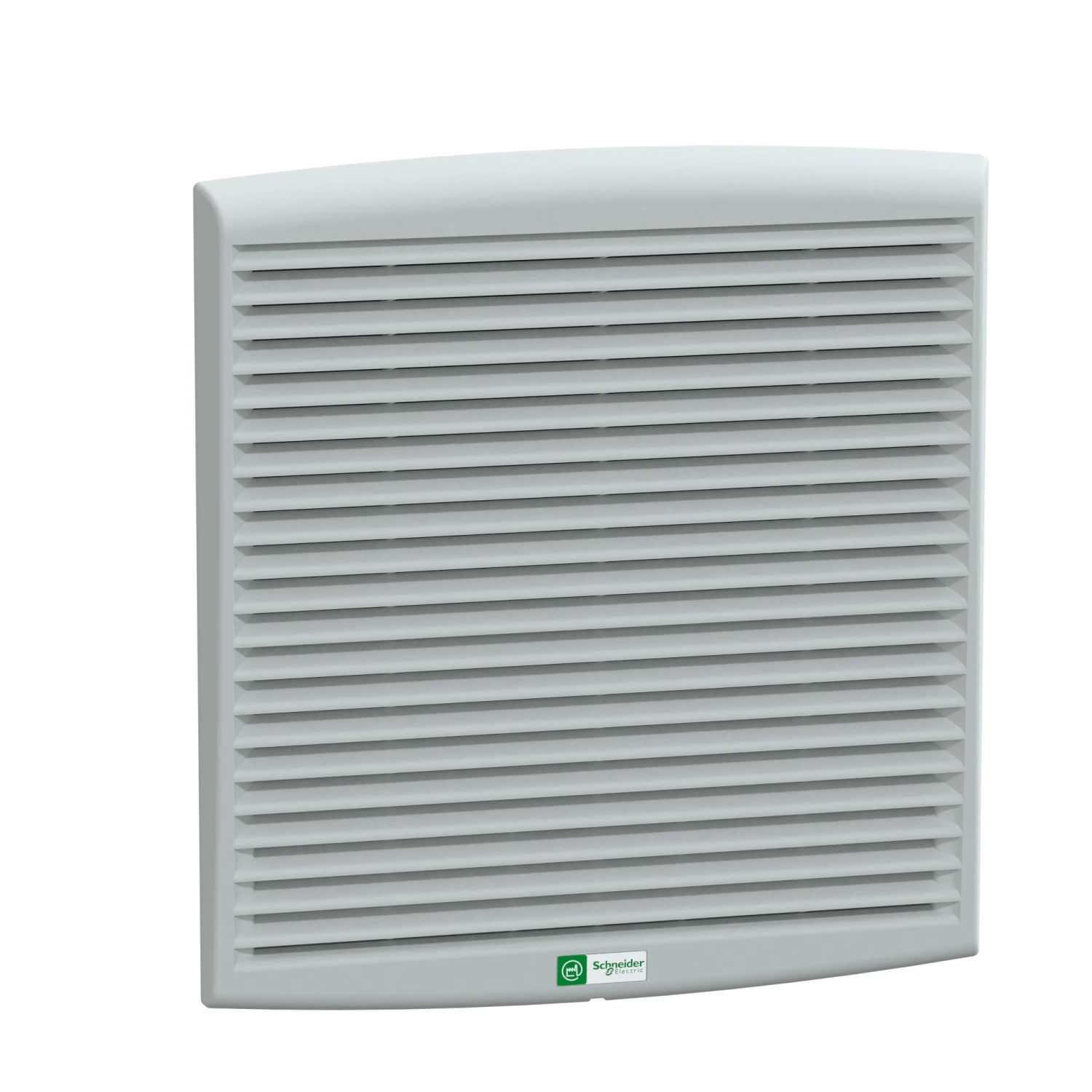

Schneider Electric ClimaSys forced vent. IP54, 560m3/h, 115V, with outlet grille and filt
£192.25 Incl. VAT
ClimaSys forced vent. IP54, 560m3/h, 115V, with outlet grille and filter G2. range: ClimaSys – product name: ClimaSys CV – product or component type: fan – type of ventilation filter: standard – air flow: free flow rate with standard filter: 562 m3/h at 50 Hz, free flow rate with standard filter: 586 m3/h at 60 Hz. · · · Reliable and highly efficient cooling performance. · · Constructed with injected thermoplastic (ASA PC). · · Available in grey color (RAL 7035). · · Features a ball bearing type and maximum pressure of 140 Pa. · · Offers a noise level of 59-59 dB for quiet operation. · · Includes a filter, outlet grille, and protective grilles. · · Resistant to dust and water with an IP54 protection rating. · · Comes with an anti-insect filter included for added convenience.
Out of Stock
Description
Technical Specifications Technical Specifications Ventilator for enclosure Width 316 mm RAL number 7035 Height 336 mm Depth 161 mm Rated power 65 W Volume flow, freeblowing 562 m³/h Number of fans 1 Noise emission 59 dB(A) Operating voltage at AC 50 Hz 115 – 115 V Operating voltage at AC 60 Hz 115 – 115 V EMC-version No Operating voltage at DC – – – V Suitable for 19 inch rack mounting No Suitable for wall built-in No With protective cover Yes Roof ventilator No Built as slide-in ventilator Yes Air circulator Yes With filter Yes · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2191431 · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2192470
