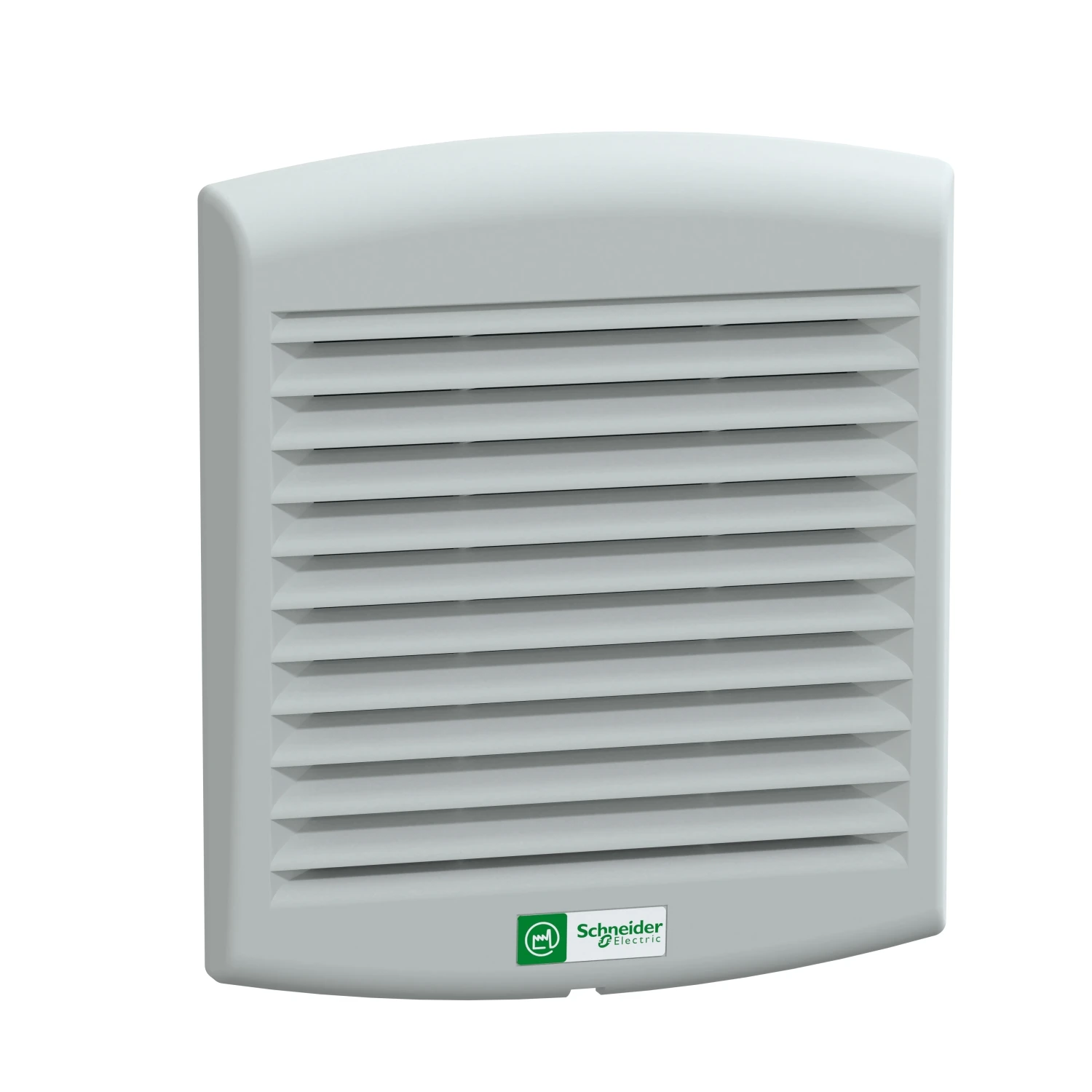

Schneider Electric ClimaSys forced vent. IP54, 85m3/h, 24V DC, with outlet grille and fil
£154.72 Incl. VAT
ClimaSys CV Axial motor ventilator. 24V DC 50Hz or 60Hz. 7.6W 50 Hz. Free flow rate with standard filter of 80 m3/h at 50 Hz. 170 x 150 x 62 mm. Cut-out dimensions of 125 x 125 mm. Outlet grille injected thermoplastic (ASA PC), Grey RAL 7035. Connections terminals by cable. 2 protective grille on the front and rear surfaces. Protection IP54. · · · ClimaSys CV Axial motor ventilator. · · 24V DC 50Hz or 60Hz. · · 7.6W 50 Hz. · · Free flow rate with standard filter of 80 m3/h at 50 Hz. · · 170 x 150 x 62 mm. · · Cut-out dimensions of 125 x 125 mm. · · Outlet grille injected thermoplastic (ASA PC), Grey RAL 7035. · · Connections terminals by cable. · · 2 protective grille on the front and rear surfaces. · · Protection IP54.
Out of Stock
Description
Technical Specifications Technical Specifications Ventilator for enclosure Width 150 mm Depth 62 mm Height 170 mm RAL number 7035 Noise emission 49 dB(A) Volume flow, freeblowing 80 m³/h Number of fans 1 Rated power 7.6 W Operating voltage at DC 24 – 24 V Operating voltage at AC 50 Hz – – – V Suitable for wall built-in No Operating voltage at AC 60 Hz – – – V EMC-version No With protective cover Yes Roof ventilator No Suitable for 19 inch rack mounting No Built as slide-in ventilator Yes Air circulator Yes With filter Yes · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2191431 · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2192470
