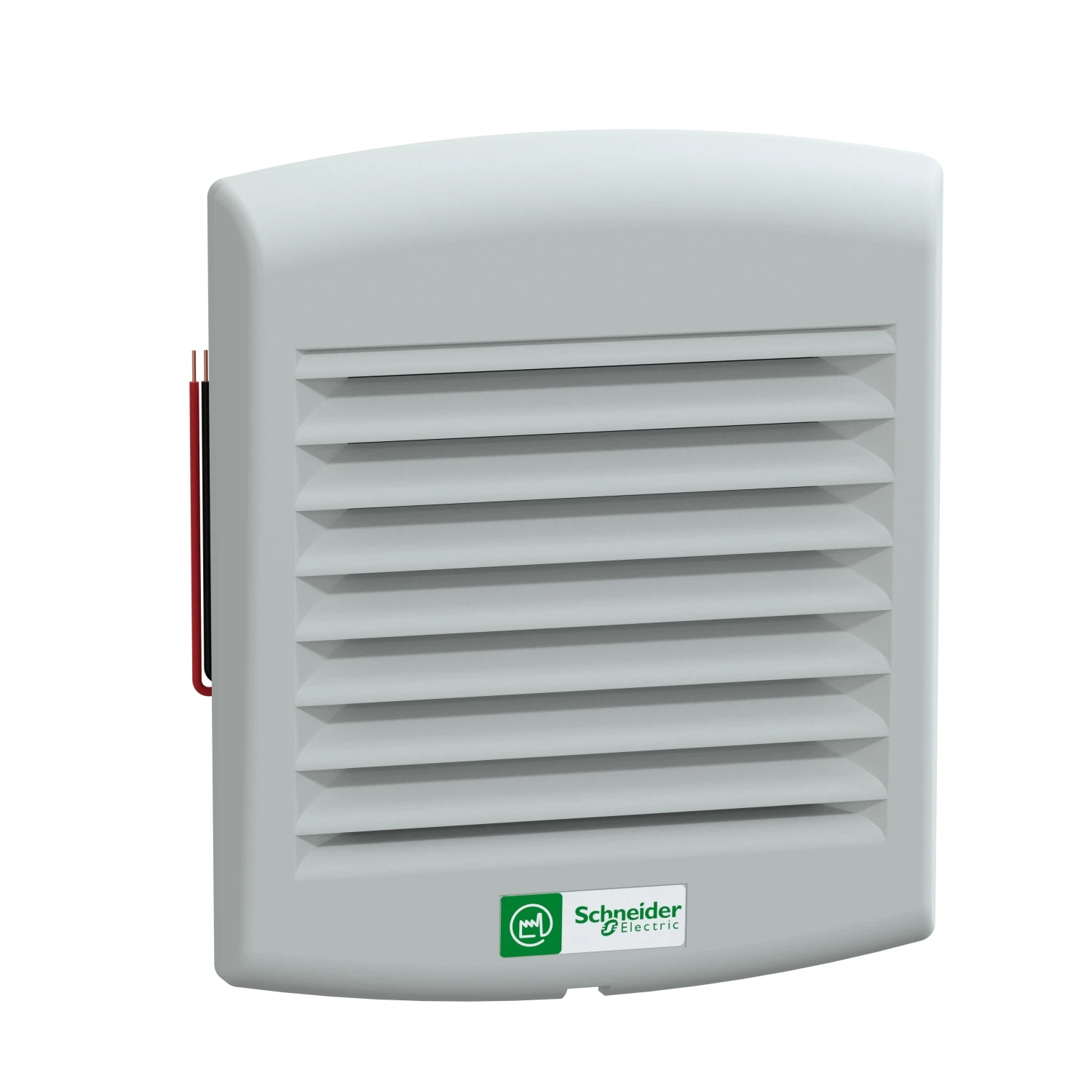

Schneider Electric Climasys Forced Ventilation IP54 38M3/H 24V DC with Outlet Grille & Filter G2
Schneider Electric Climasys Forced Ventilation IP54 38M3/H 24V DC with Outlet Grille & Filter G2
Schneider Electric Climasys Forced Ventilation IP54 38M3/H 24V DC with Outlet Grille & Filter G2 - Image 2

Schneider Electric Climasys Forced Ventilation IP54 38M3/H 24V DC with Outlet Grille & Filter G2

£112.73 Incl. VAT

ClimaSys CV Axial motor ventilator. 24V DC 50Hz or 60Hz. 3.6W 50 Hz. Free flow rate with standard filter of 58 m3/h at 50 Hz. 137 x 117 x 49 mm. Cut-out dimensions of 92 x 92 mm. Outlet grille injected thermoplastic (ASA PC), Grey RAL 7035. Connections terminals by cable. 2 protective grille on the front and rear surfaces. Protection IP54. · · · ClimaSys CV Axial motor ventilator. · · 24V DC 50Hz or 60Hz. · · 3.6W 50 Hz. · · Free flow rate with standard filter of 58 m3/h at 50 Hz. · · 137 x 117 x 49 mm.

Typically available in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: NSYCVF38M24DPF Categories: , , Brand: Product Code: 2500217281

Description

Technical Specifications  Technical Specifications Ventilator for enclosure Height 137.00 mm Width 117.00 mm RAL number 7035.00 Rated power 3.60 W Volume flow, freeblowing 38.00 m³/h Number of fans 1.00 Depth 49.00 mm Noise emission 41.00 dB(A) Operating voltage at AC 50 Hz – – – V Operating voltage at AC 60 Hz – – – V Suitable for wall built-in No Operating voltage at DC 24.00 – 24.00 V Roof ventilator No Suitable for 19 inch rack mounting No Built as slide-in ventilator Yes Air circulator Yes With filter Yes EMC-version No With protective cover Yes · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2191431 · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2192470
