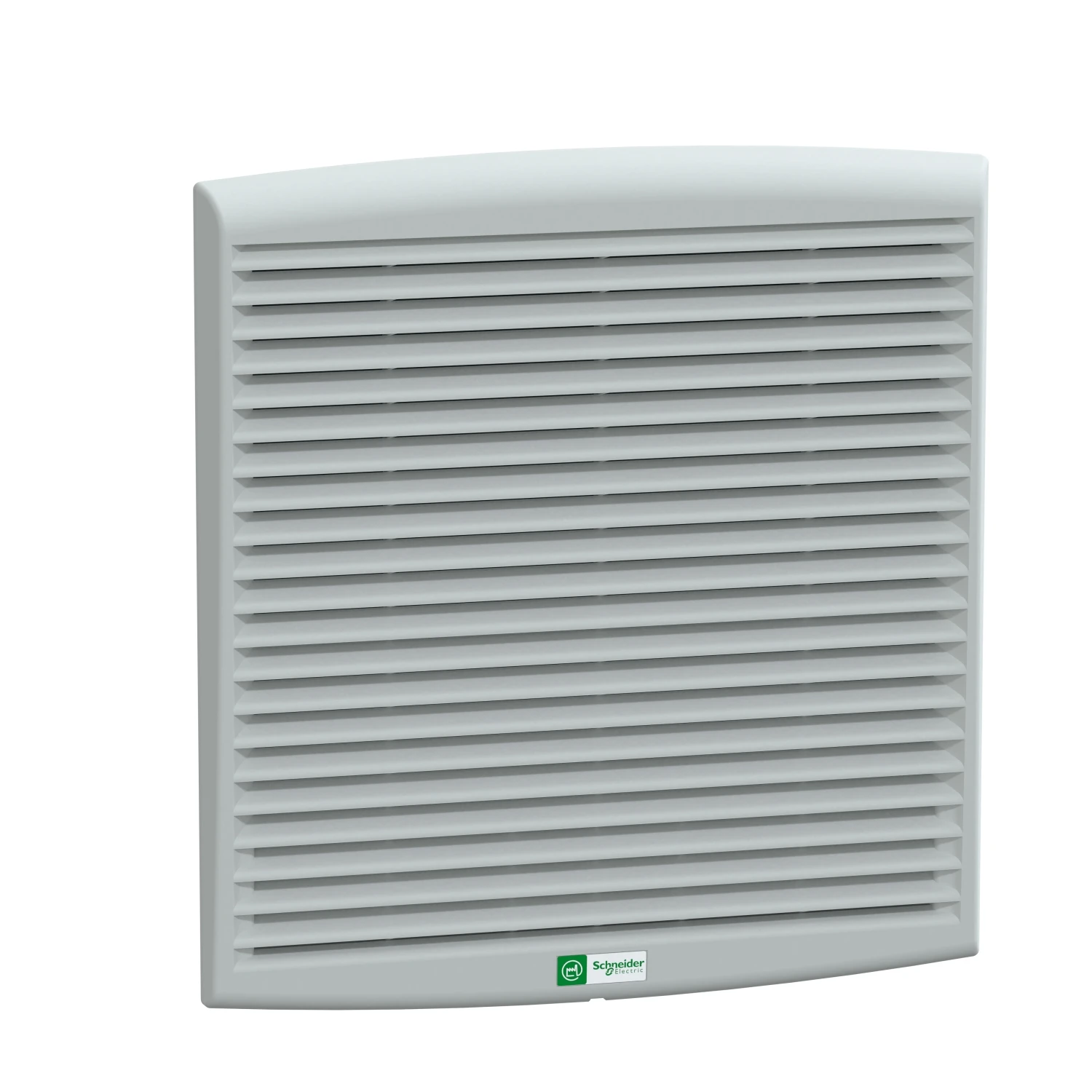

Schneider Electric Climasys Forced Ventilation IP54 560M3/H 230V with Outlet Grille & Filter G2
£151.32 Incl. VAT
ClimaSys forced vent. IP54, 560m3/h, 230V, with outlet grille and filter G2. range: ClimaSys – product name: ClimaSys CV – product or component type: fan – range compatibility: Prisma G, Prisma P – type of ventilation filter: standard – air flow: free flow rate with standard filter: 562 m3/h at 50 Hz, free flow rate with standard filter: 586 m3/h at 60 Hz. · · · ClimaSys CV Axial motor ventilator. · · 230V 50Hz or 60Hz. · · 68 W 50 Hz, 85 W 60 Hz. · · Free flow rate of 550 m3/h at 50 Hz and 60 Hz. · · 336 x 316 x 161 mm. · · Cut-out dimensions of 291 x 291 mm. · · Outlet grille injected thermoplastic (ASA PC), Grey RAL 7035. · · Connections terminals by cable. · · 2 protective grille on the front and rear surfaces. · · Protection IP54.
Out of Stock
Description
Technical Specifications Technical Specifications Ventilator for enclosure RAL number 7035 Depth 161 mm Width 316 mm Noise emission 59 dB(A) Height 336 mm Volume flow, freeblowing 562 m³/h Number of fans 1 Rated power 68 W Operating voltage at AC 50 Hz 230 – 230 V Operating voltage at DC – – – V EMC-version No Operating voltage at AC 60 Hz 230 – 230 V Suitable for wall built-in No Suitable for 19 inch rack mounting No With protective cover Yes Built as slide-in ventilator Yes Air circulator Yes With filter Yes Roof ventilator No · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2191431 · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2192470
