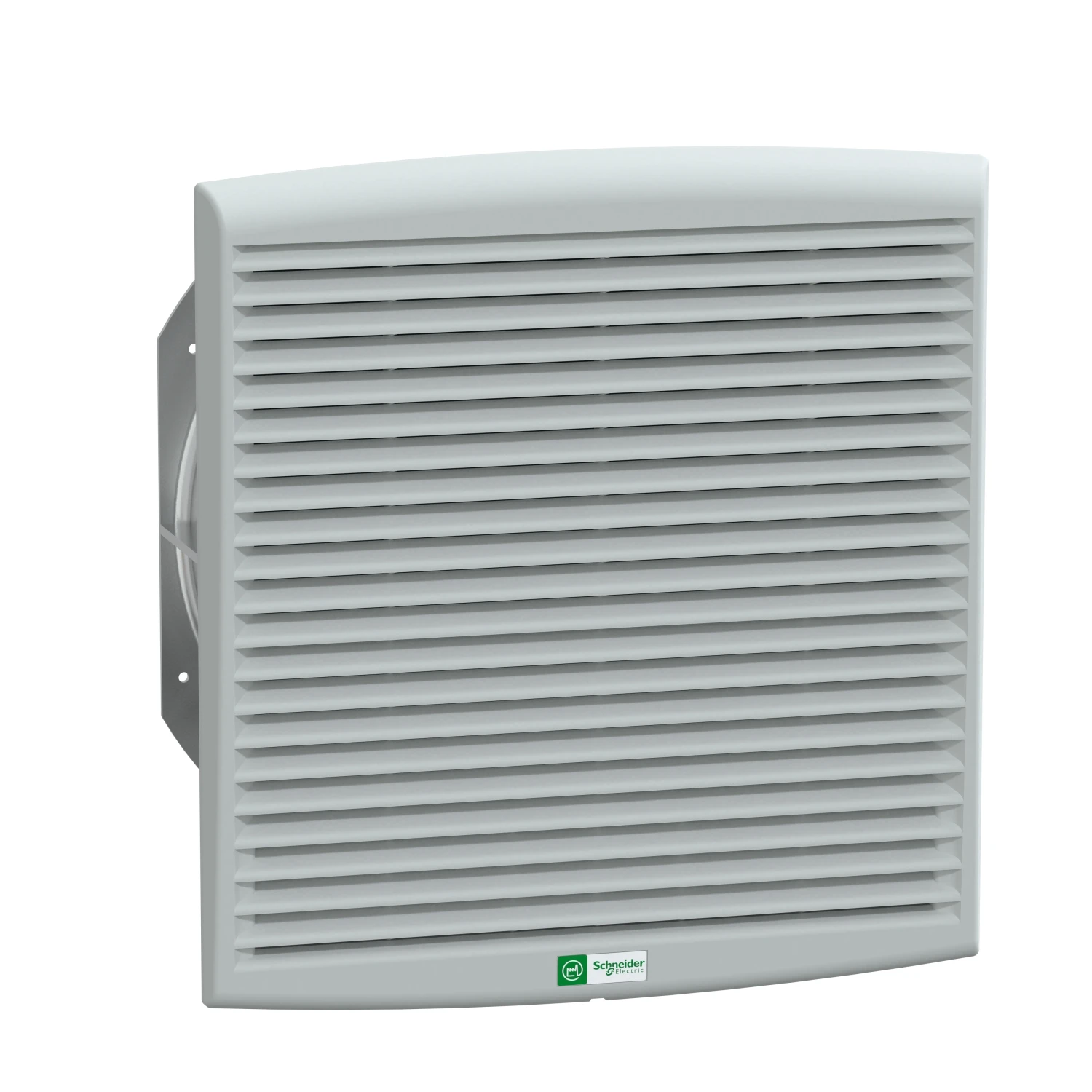

Schneider Electric Climasys Forced Ventilation IP54 850M3/H 230V with Outlet Grille & Filter G2
£192.25 Incl. VAT
ClimaSys CV Axial motor ventilator. 230V 50Hz or 60Hz. 150W 50 Hz, 195W 60 Hz. Free flow rate with standard filter of 803 m3/h at 50 Hz and 838 m3/h at 60 Hz. 336 x 316 x 162 mm. Cut-out dimensions of 291 x 291 mm. Outlet grille injected thermoplastic (ASA PC), Grey RAL 7035. Connections terminals by cable. 2 protective grille on the front and rear surfaces. Protection IP54. · · · ClimaSys CV Axial motor ventilator. · · 230V 50Hz or 60Hz. · · 150W 50 Hz, 195W 60 Hz. · · Free flow rate with standard filter of 803 m3/h at 50 Hz and 838 m3/h at 60 Hz. · · 336 x 316 x 162 mm. · · Cut-out dimensions of 291 x 291 mm. · · Outlet grille injected thermoplastic (ASA PC), Grey RAL 7035. · · Connections terminals by cable. · · 2 protective grille on the front and rear surfaces. · · Protection IP54.
Out of Stock
Description
Technical Specifications Technical Specifications Ventilator for enclosure Width 316 mm RAL number 7035 Depth 162 mm Height 336 mm Volume flow, freeblowing 838 m³/h Rated power 150 W Number of fans 1 Noise emission 78 dB(A) Operating voltage at DC – – – V Operating voltage at AC 50 Hz 230 – 230 V Operating voltage at AC 60 Hz 230 – 230 V EMC-version No Suitable for wall built-in No Suitable for 19 inch rack mounting No With protective cover Yes Built as slide-in ventilator Yes Air circulator Yes With filter Yes Roof ventilator No · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2191431 · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2192470
