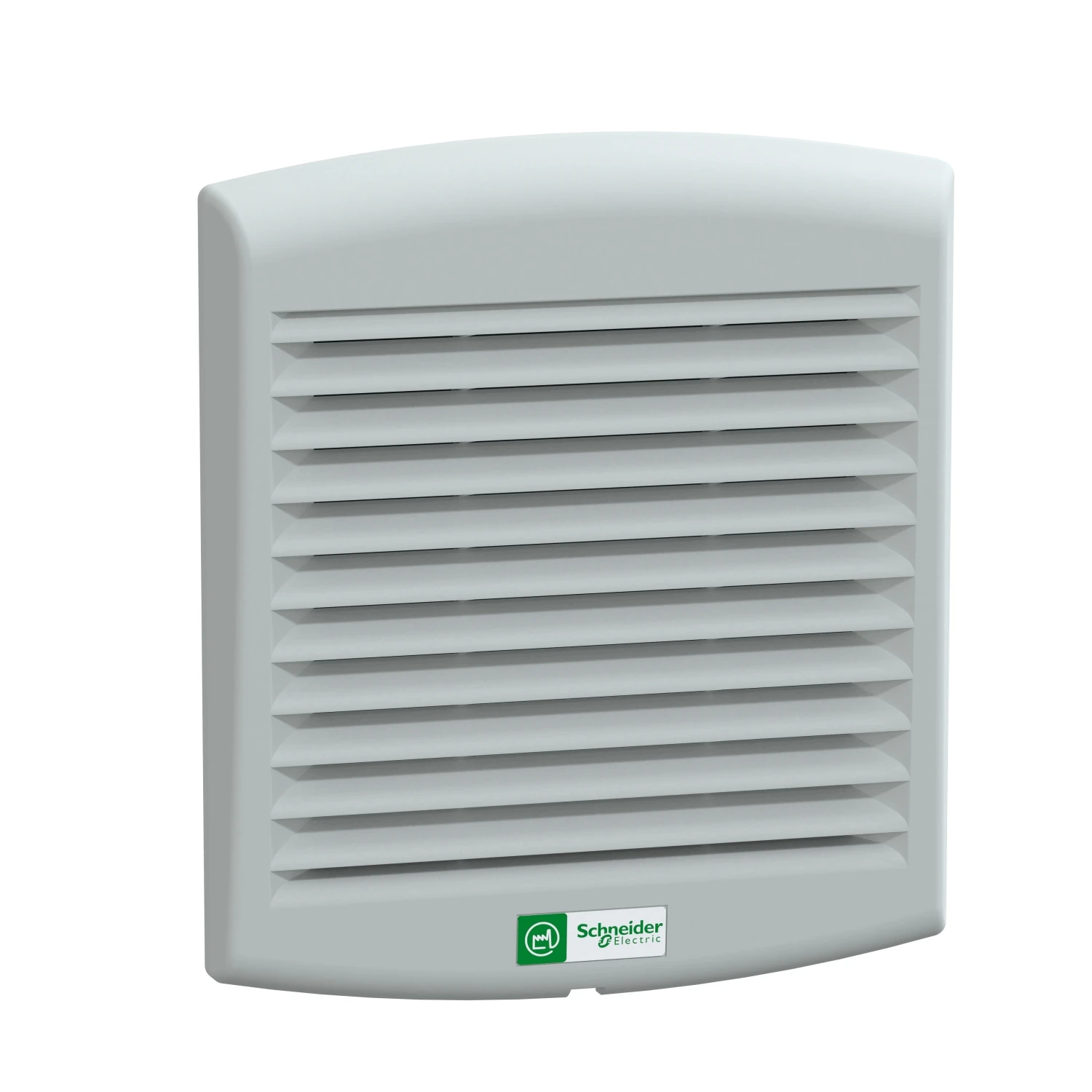

Schneider Electric Climasys Forced Ventilation IP54 85M3/H 230V with Outlet Grille & Filter G2
Schneider Electric Climasys Forced Ventilation IP54 85M3/H 230V with Outlet Grille & Filter G2
Schneider Electric Climasys Forced Ventilation IP54 85M3/H 230V with Outlet Grille & Filter G2 - Image 2

Schneider Electric Climasys Forced Ventilation IP54 85M3/H 230V with Outlet Grille & Filter G2

£93.29 Incl. VAT

ClimaSys CV Axial motor ventilator. 230V 50Hz or 60Hz. 17 W 50 Hz, 15 W 60 Hz. Free flow rate with standard filter of 85 m3/h at 50 Hz and 98 m3/h at 60 Hz. 170 x 150 x 62 mm. Cut-out dimensions of 125 x 125 mm. Outlet grille injected thermoplastic (ASA PC), Grey RAL 7035. Connections terminals by cable. 2 protective grille on the front and rear surfaces. Protection IP54. · · · ClimaSys CV Axial motor ventilator. · · 230V 50Hz or 60Hz. · · 17 W 50 Hz, 15 W 60 Hz. · · Free flow rate with standard filter of 85 m3/h at 50 Hz and 98 m3/h at 60 Hz. · · 170 x 150 x 62 mm. · · Cut-out dimensions of 125 x 125 mm. · · Outlet grille injected thermoplastic (ASA PC), Grey RAL 7035. · · Connections terminals by cable. · · 2 protective grille on the front and rear surfaces. · · Protection IP54.

Out of Stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: NSYCVF85M230PF Categories: , Brand: Product Code: 2500217308

Description

Technical Specifications  Technical Specifications Ventilator for enclosure Width 150 mm Depth 62 mm RAL number 7035 Height 170 mm Number of fans 1 Rated power 17 W Volume flow, freeblowing 85 m³/h Noise emission 49 dB(A) Operating voltage at AC 50 Hz 230 – 230 V Operating voltage at DC – – – V Operating voltage at AC 60 Hz 230 – 230 V EMC-version No Suitable for wall built-in No Suitable for 19 inch rack mounting No Built as slide-in ventilator Yes Roof ventilator No Air circulator Yes With protective cover Yes With filter Yes · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2191431 · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2192470
