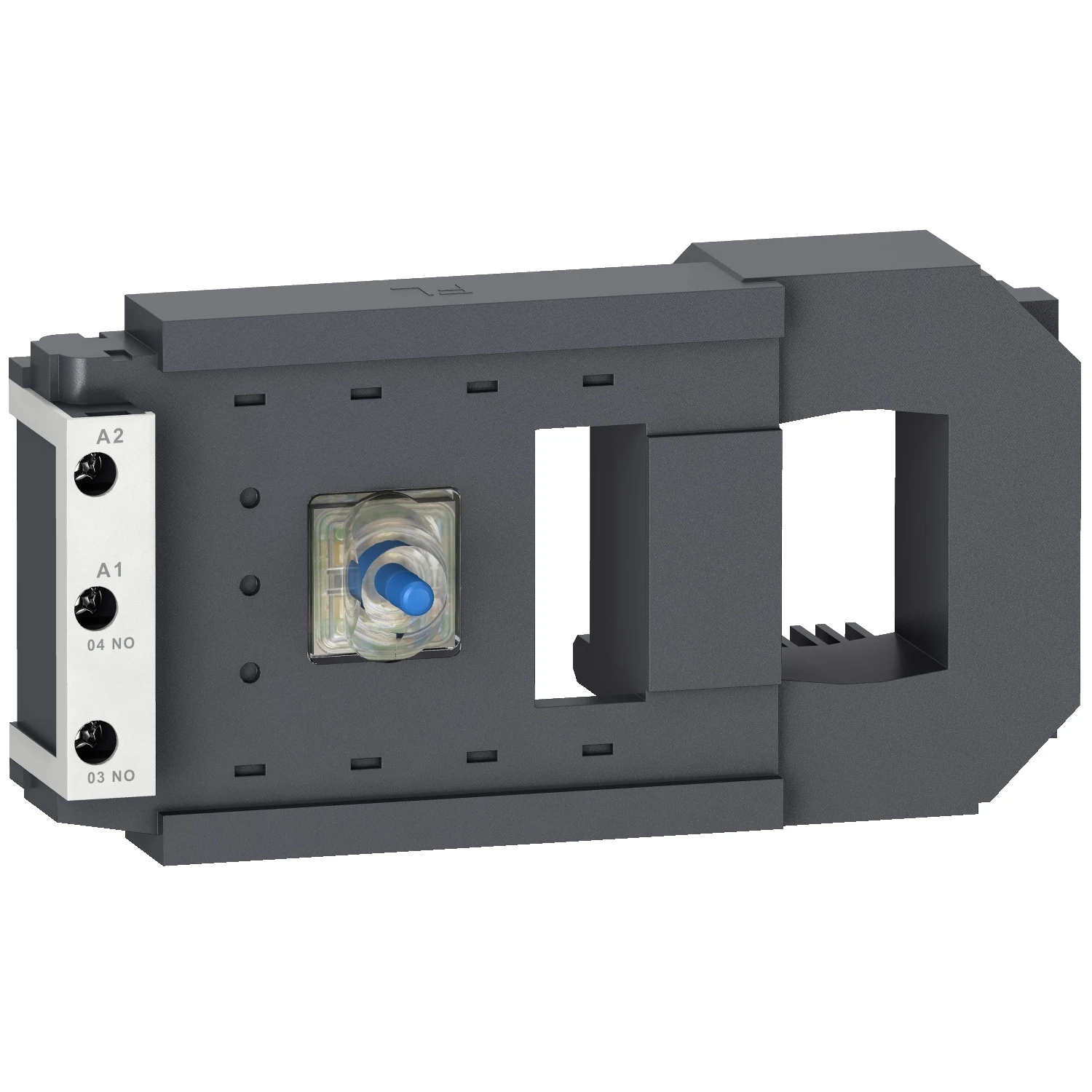

Schneider Electric Coil Low Consumption 110-115V AC 40-400Hz For Contactors

TeSys F AC coil 110/115V 40-400Hz (voltage code F7/FE7), low sealed consumption, high tolerance to voltage drops, for TeSys F 3-pole and 4-pole contactors LC1 F185, FG185, F225. It operates in voltage limits 0.85-1.1 Uc and environments until 55°C. It provides high operating rates to the contactor, until 2400 cycles/hour. Green Premium compliant (RoHS/REACh). · · · TeSys F AC coil 110/115V 40-400Hz (voltage code F7/FE7), low sealed consumption, high tolerance to voltage drops, · · for TeSys F 3-pole and 4-pole contactors LC1 F185, FG185, F225. · · Inrush/Hold-in power consumption: 1180VA/10.9VA · · It operates in voltage limits 0.85-1.1 Uc and environments until 55°C. · · It provides high operating rates to the contactor, until 2400 cycles/hour. · · Green Premium compliant (RoHS/REACh). · · Inductance of closed circuit: 1.46H · · Ambient operating temperature: -5°C to 55°C · · Mechanical durability: 10 Mcycles
