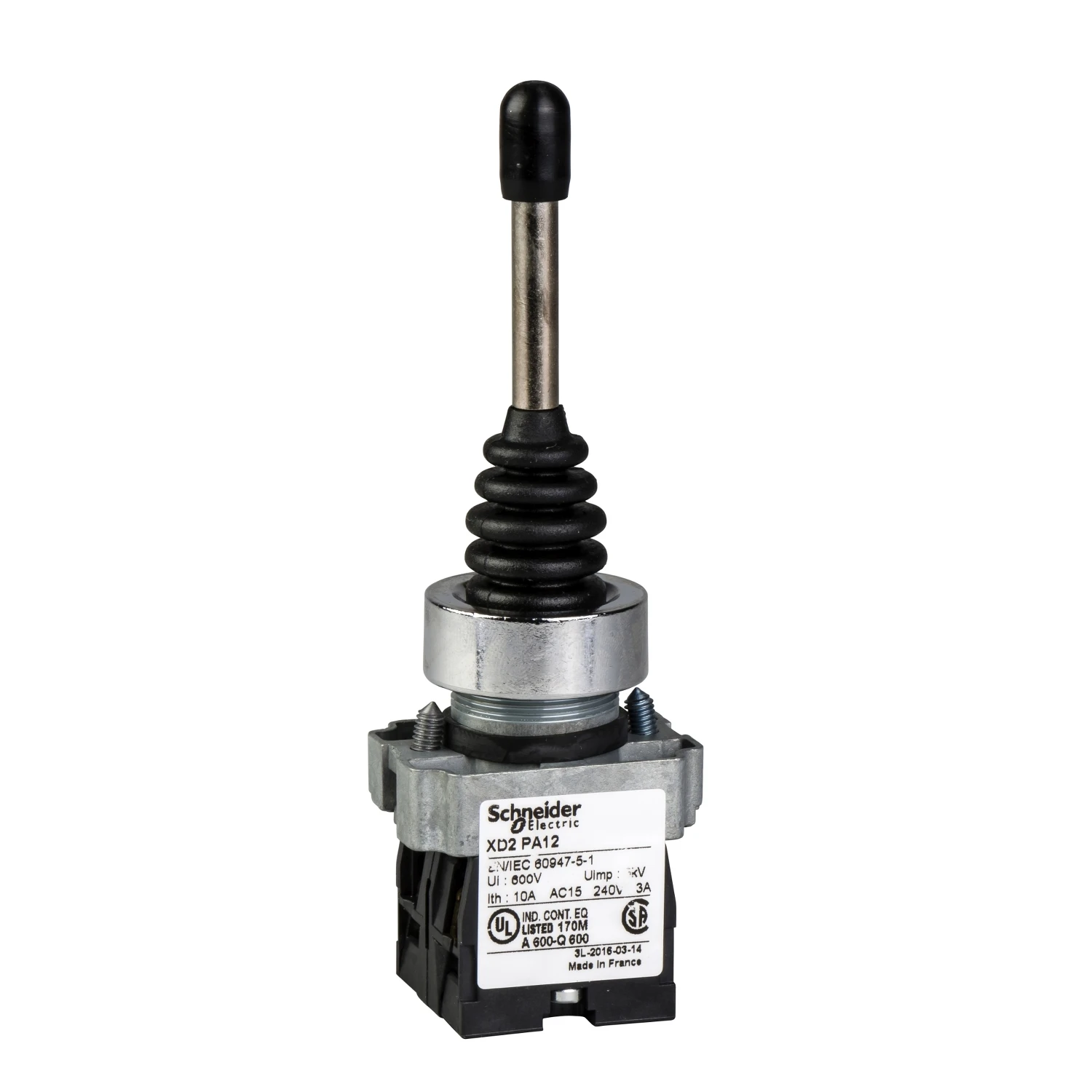

Schneider Electric Complete joystick controller, Ø22, 2 directions, 1 NO per direction
Schneider Electric Complete joystick controller, Ø22, 2 directions, 1 NO per direction
Schneider Electric Complete joystick controller, Ø22, 2 directions, 1 NO per direction - Image 2
Schneider Electric Complete joystick controller, Ø22, 2 directions, 1 NO per direction - Image 3
Schneider Electric Complete joystick controller, Ø22, 2 directions, 1 NO per direction - Image 4

Schneider Electric Complete joystick controller, Ø22, 2 directions, 1 NO per direction

£96.97 Incl. VAT

This complete joystick controller is part of the range Harmony XD. It features 2 directions with one NO contact per direction and screw connection type. It is easily installed into a standard 22mm diameter cut-out. · · · This complete joystick controller is part of the range Harmony XD. · · It features 2 directions with one NO contact per direction and screw connection type. · · It is easily installed into a standard 22mm diameter cut-out.

Out of Stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: XD2PA22 Categories: , Brand: Product Code: 2500023392

Description

Technical Specifications  Technical Specifications Control switch, Joystick Centre mounting, hole diameter 22 mm Number of normally closed contacts per actuation direction 0 Number of make-and-break contacts per direction 0 Joy stick length 79 mm Number of normally open contacts per actuation direction 1 Rated operation current Ie at AC-21, 400 V – A Number of actuation directions 2 With front ring Yes With retraction in 0-position Yes Locking in 0-position No Coder No Analogue output signal configurable No · Technical Data Sheet – Click to Download
