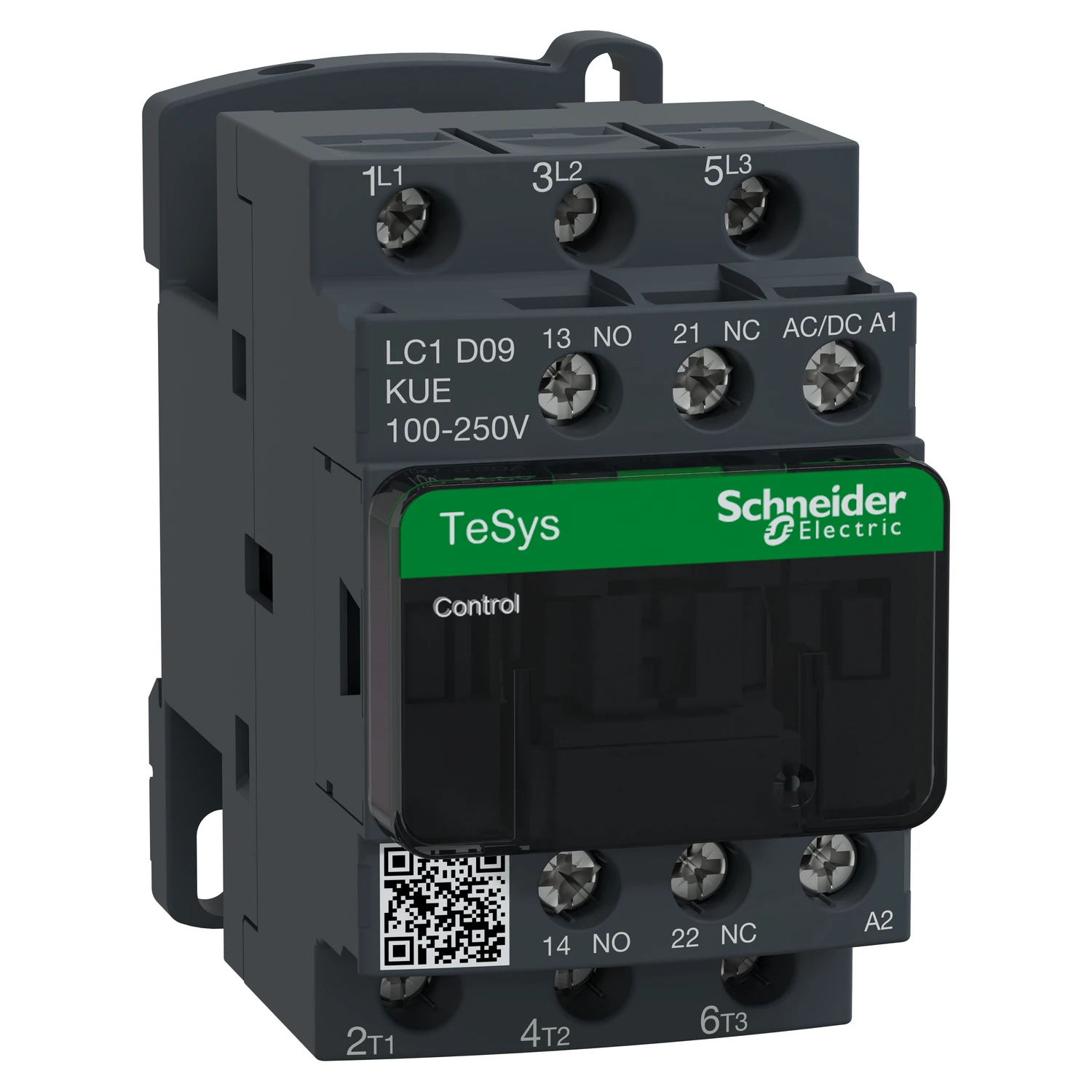

Schneider Electric Cont 9A 3P AC3 100-250VACDC coil
Schneider Electric Cont 9A 3P AC3 100-250VACDC coil
Schneider Electric Cont 9A 3P AC3 100-250VACDC coil - Image 2

Schneider Electric Cont 9A 3P AC3 100-250VACDC coil

£74.45 Incl. VAT

Cont 9A 3P AC3 100-250VACDC coil · · · TeSys D contactor, 3 poles (3NO), for motor control applications up to 9A/690V AC-3 (4kW@400V). · · It provides a low sealed consumption 100-250V AC/DC coil with electronic control, 1NO+1NC built-in auxiliary contacts (NC mirror certified), connection by screw clamp terminals. · · For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability to demanding applications. · · Compact (45mm width), DIN-rail mounting or screw fixing.

Out of Stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: LC1D09KUE Categories: , , Brand: Product Code: 2501231802

Description

Technical Specifications  Technical Specifications Power contactor, AC switching Rated operation power at AC-3, 400 V 4 kW Number of main contacts as normally open contact 3 Number of auxiliary contacts as normally open contact 1 Number of normally closed contacts as main contact 0 Rated operation current Ie at AC-4, 400 V 6 A Rated operation power NEMA – kW Rated operation current Ie at AC-1, 400 V 25 A Rated operation power at AC-4, 400 V 2.2 kW Number of auxiliary contacts as normally closed contact 1 Rated operation current Ie at AC-3, 400 V 9 A Rated control supply voltage at AC 50 Hz 100 – 250 V Rated control supply voltage at AC 60 Hz 100 – 250 V Modular version No Rated control supply voltage at DC 100 – 250 V · Technical Data Sheet – Click to Download
