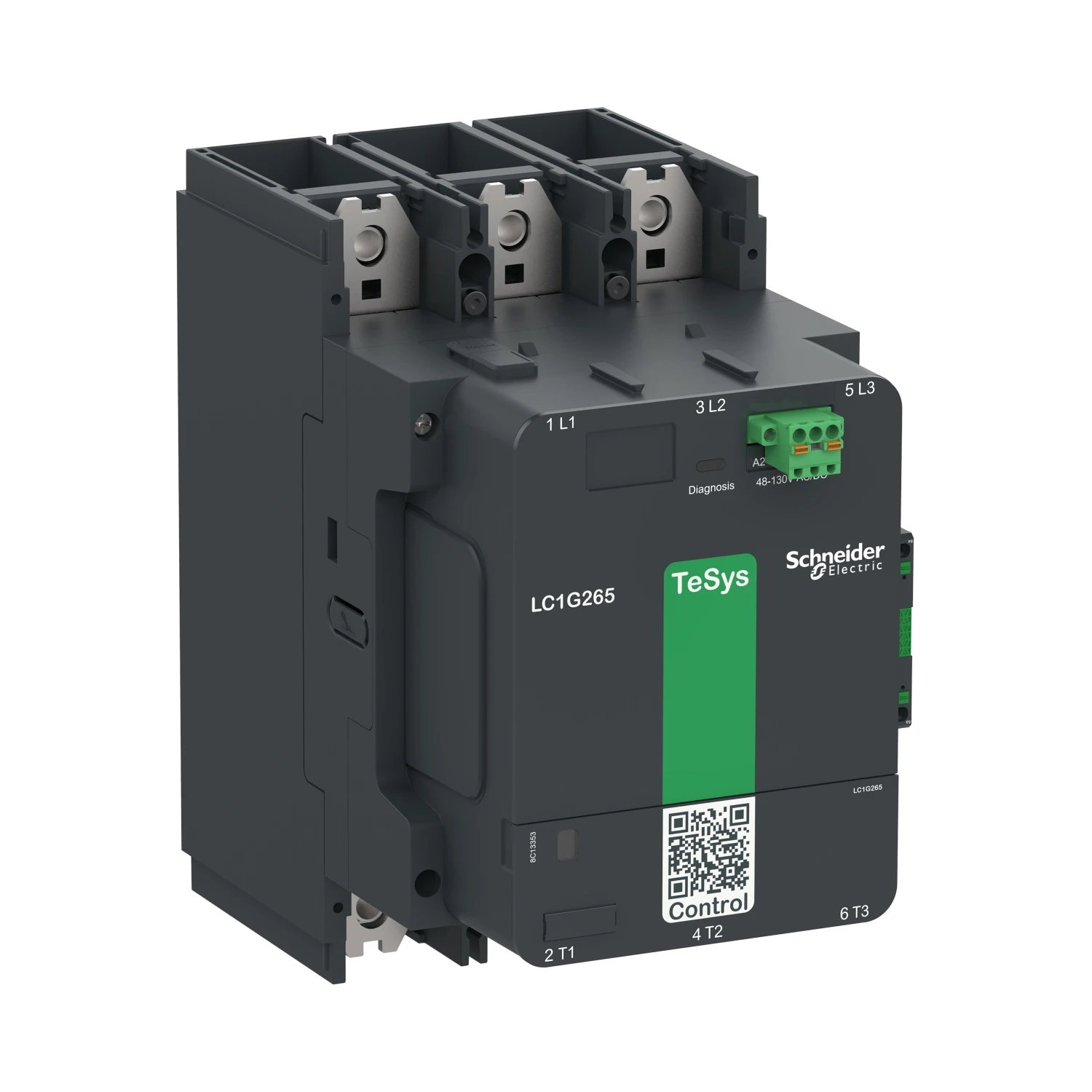

Schneider Electric Contactor 48-130V
£1,414.72 Incl. VAT
TeSys Giga contactors, Contactors to control motors up to 800 A (450 kW / 400V) or switch power up to 1050A. TeSys Giga is the range of high current contactors from 115 A to 800 A for AC-3 (motor) applications and from 250 A to 1050 A for AC-1 (resistive) applications.
Out of Stock
Description
Technical Specifications Technical Specifications Power contactor, AC switching Type of electrical connection of main circuit Bolt connection Voltage type for actuating AC/DC Rated operation power at AC-3, 400 V 160 kW Number of main contacts as normally open contact 3 Number of normally closed contacts as main contact 0 Number of auxiliary contacts as normally open contact 1 Rated operation power NEMA 250 kW Rated operation current Ie at AC-4, 400 V 330 A Rated operation power at AC-4, 400 V 160 kW Rated operation current Ie at AC-1, 400 V 440 A Rated operation current Ie at AC-3, 400 V 330 A Number of auxiliary contacts as normally closed contact 1 Rated control supply voltage at AC 60 Hz 48 – 130 V Rated control supply voltage at AC 50 Hz 48 – 130 V Rated control supply voltage at DC 48 – 130 V Modular version No · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2194119
