Schneider Electric Contc 25A 110V DC
Schneider Electric Contc 25A 110V DC
Schneider Electric Contc 25A 110V DC - Image 2

Schneider Electric Contc 25A 110V DC

£119.14 Incl. VAT

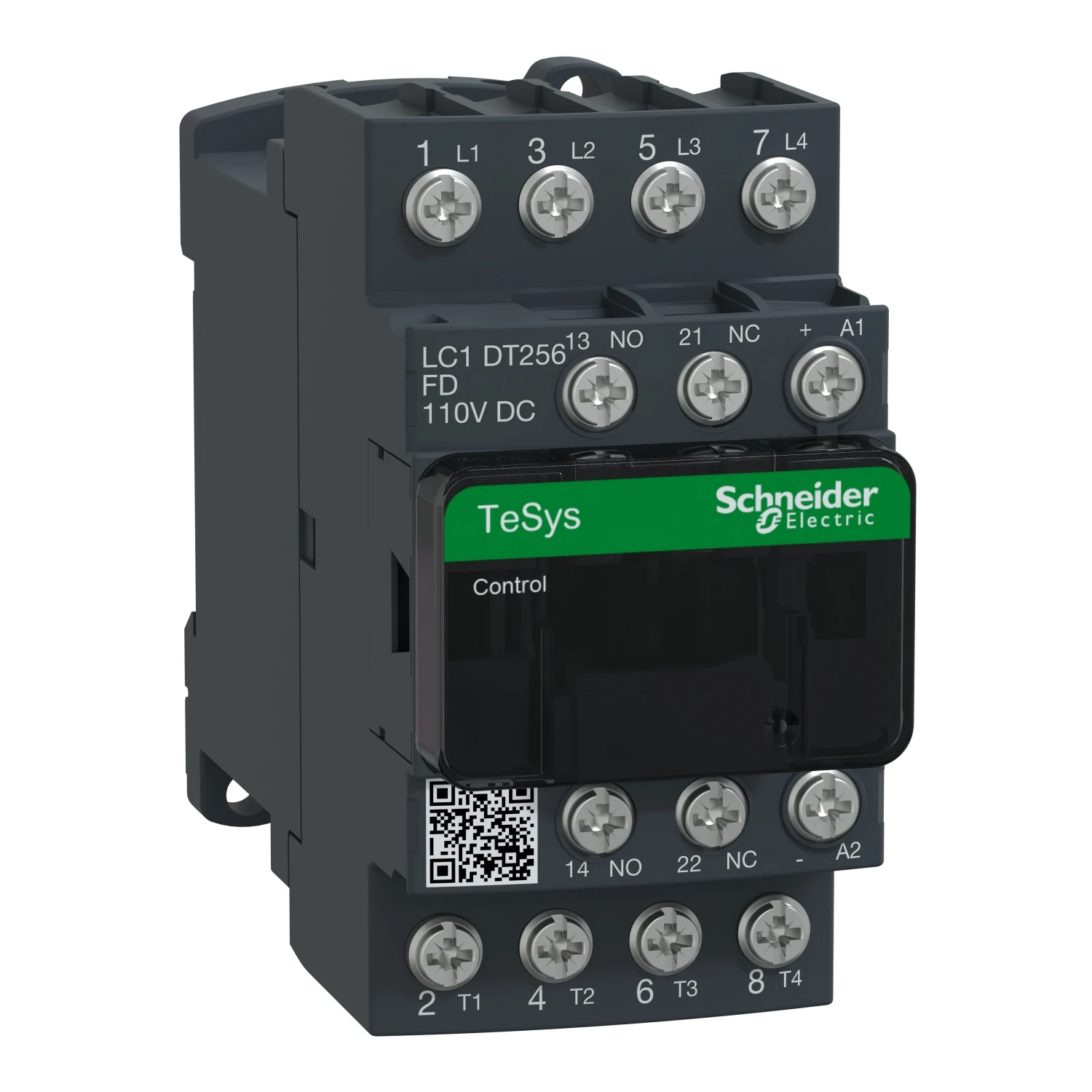

TeSys D contactor, 4 poles (4NO), for non-inductive load applications up to 25A/690V AC-1. It provides a 110V DC coil with transient suppressor module, 1NO+1NC built-in auxiliary contacts (NC mirror certified), connection by spring terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (45mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh). · · · New modern look & feel of all machines · · Designed to meet the requirements of Electro domestic and HVAC applications · · With IEC60335-1 compliance, improved fire resistance, and dustproof auxiliaries · · Maintenance guide via EcoStruxureTM Facility Expect

Out of Stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: LC1DT256FD Categories: , , Brand: Product Code: 2500882893

Description

Technical Specifications  Technical Specifications Power contactor, AC switching Number of normally closed contacts as main contact 0 Rated operation power at AC-3, 400 V – kW Number of main contacts as normally open contact 4 Rated operation current Ie at AC-4, 400 V – A Rated operation power at AC-4, 400 V – kW Rated operation power NEMA – kW Rated operation current Ie at AC-1, 400 V 25 A Number of auxiliary contacts as normally open contact 1 Rated operation current Ie at AC-3, 400 V – A Number of auxiliary contacts as normally closed contact 1 Rated control supply voltage at AC 60 Hz – – – V Rated control supply voltage at AC 50 Hz – – – V Rated control supply voltage at DC 110 – 110 V Modular version No · Technical Data Sheet – Click to Download
