Schneider Electric Control Unit Micrologic 5.0 x Drawout For MTZ2/Mtz3

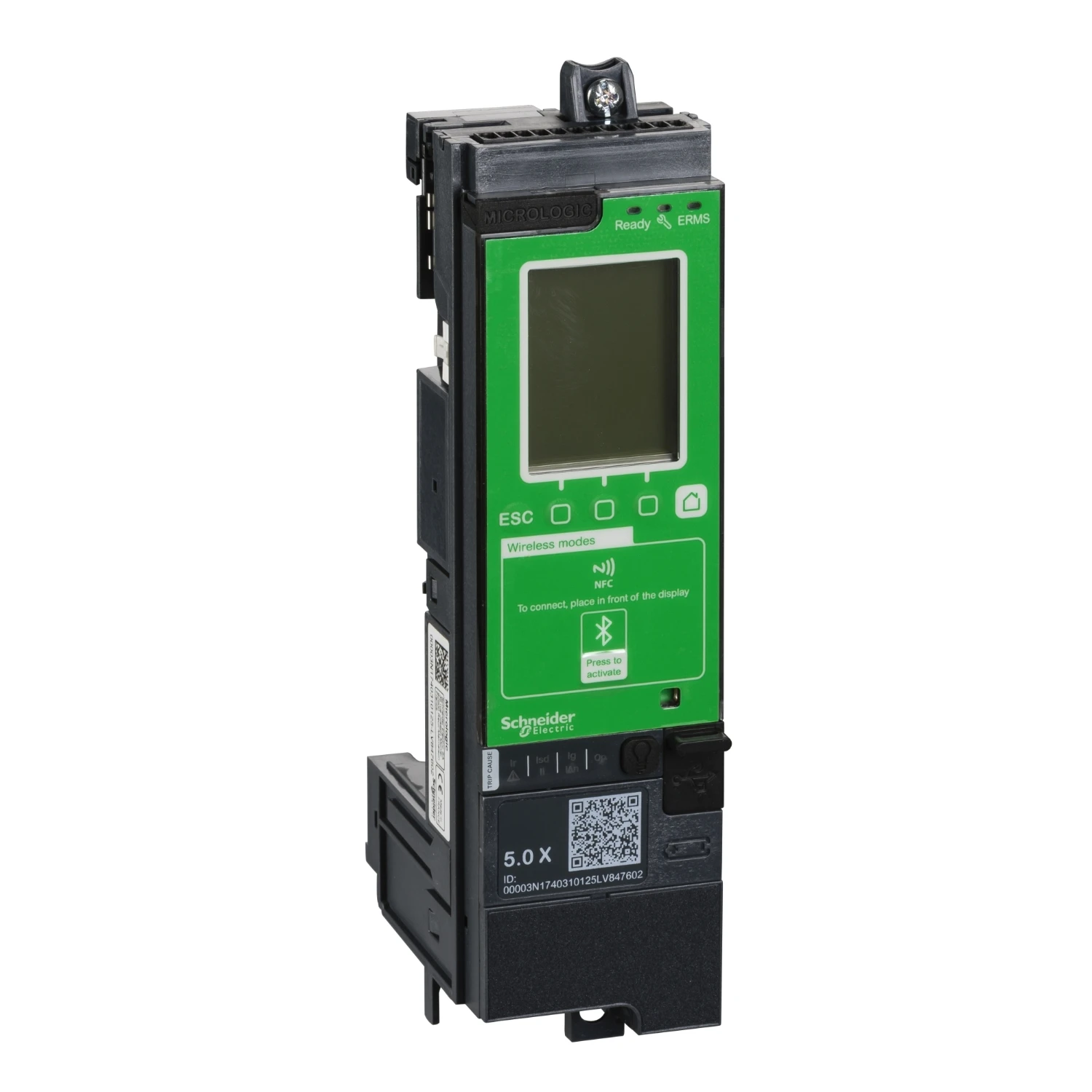

MTZ2/3 Drawout – Micrologic 5.0 X · · · This Micrologic 5.0 X is an electronic control unit used on Masterpact MTZ2 and MTZ3 drawout circuit breakers. · · This control unit is compatible with MTZ 08 to MTZ2 40, MTZ3 40 to MTZ3 63, all in drawout version. · · Masterpact MTZ is the last generation of high current air circuit breakers up to 6300 A embedding advanced digital technologies. · · Masterpact MTZ is designed to protect electrical systems from damage caused by overloads, short circuits and equipment ground faults. · · It is possible to customize Micrologic X control unit anytime with digital modules to add new protection, measurement or diagnosis functionalities. · · Micrologic X control units incorporate several channels of communication, including Ethernet, Modbus SL and wireless communication facilities. · · Micrologic 5.0 X embeds adjustable long time protection against overloads. · · It provides also adjustable short-time protection and instantaneous protection against short-circuits. · · With its embedded backlight HMI, Micrologic 5.0 X allows the quick identification of alarm messages. · · The information processed by the Micrologic 5.0 X may be displayed on the embedded backlight HMI, a smartphone through Bluetooth or NFC and a PC through the USB connection.
