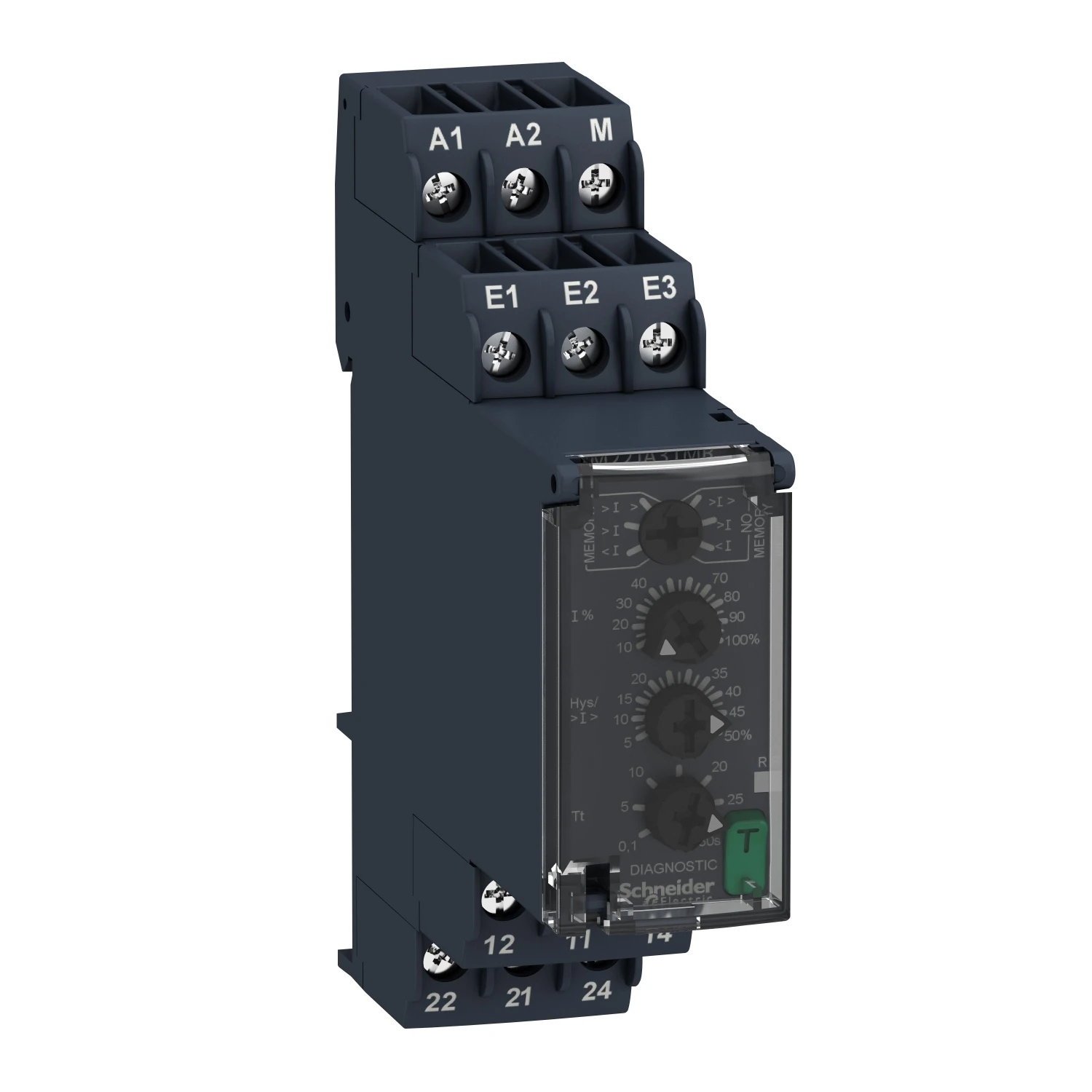

Schneider Electric Current control relay 4mA…1A, 2 C/O
Awaiting product image

Schneider Electric Current control relay 4mA…1A, 2 C/O

£275.35 Incl. VAT

Current control relay 4mA…1A, 2 C/O. range of product: Zelio Control – product or component type: modular measurement and control relays – relay type: current control relay – relay name: RM22JA – relay monitored parameters: overcurrent or undercurrent detection, overcurrent or undercurrent in window mode – switching capacity in VA: 2000 VA – measurement range: 100…1000 mA E3-M terminals, 20…200 mA E2-M terminals, 4 mA…1 A current AC/DC 50/60 Hz, 4…40 mA E1-M terminals. · · · This Zelio RM22JA control relay allows monitoring of current control. · · This modular control relay is ideal for monitoring of electrical values and current variation in industrial and building control panels. · · It applies to a wide type of industrial automation applications such as hoisting, packaging, lifts, textile, water. · · It has one of market slim form-factors with 22.5mm width, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 1-pole DIN device. · · It also offers a selectable memory function, integral LED for indicating control status, sealable cover, with simple and precise settings with screw trimmers.

Out of Stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: RM22JA31MR Categories: , , Brand: Product Code: 2500892991

Description

Technical Specifications  Technical Specifications Current monitoring relay Width 22.50 mm Depth 73.00 mm Height 90.00 mm Min. adjustable off-delay time 0.10 s Max. permitted off-delay time 30.00 s Number of contacts as normally open contact 2.00 Number of contacts as change-over contact 2.00 Number of contacts as normally closed contact 2.00 Current measurement range 0.00 – 1.00 A Contains function DC-voltage under current Yes Three-phase hysteresis possible No Contains function DC-voltage over current Yes Function DC-current hysteresis Yes Single-phase hysteresis possible Yes Three-phase over current possible No Three-phase under current possible No Single-phase under current possible Yes Single-phase over current possible Yes Curent transformer No With detachable clamps No · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2205366
