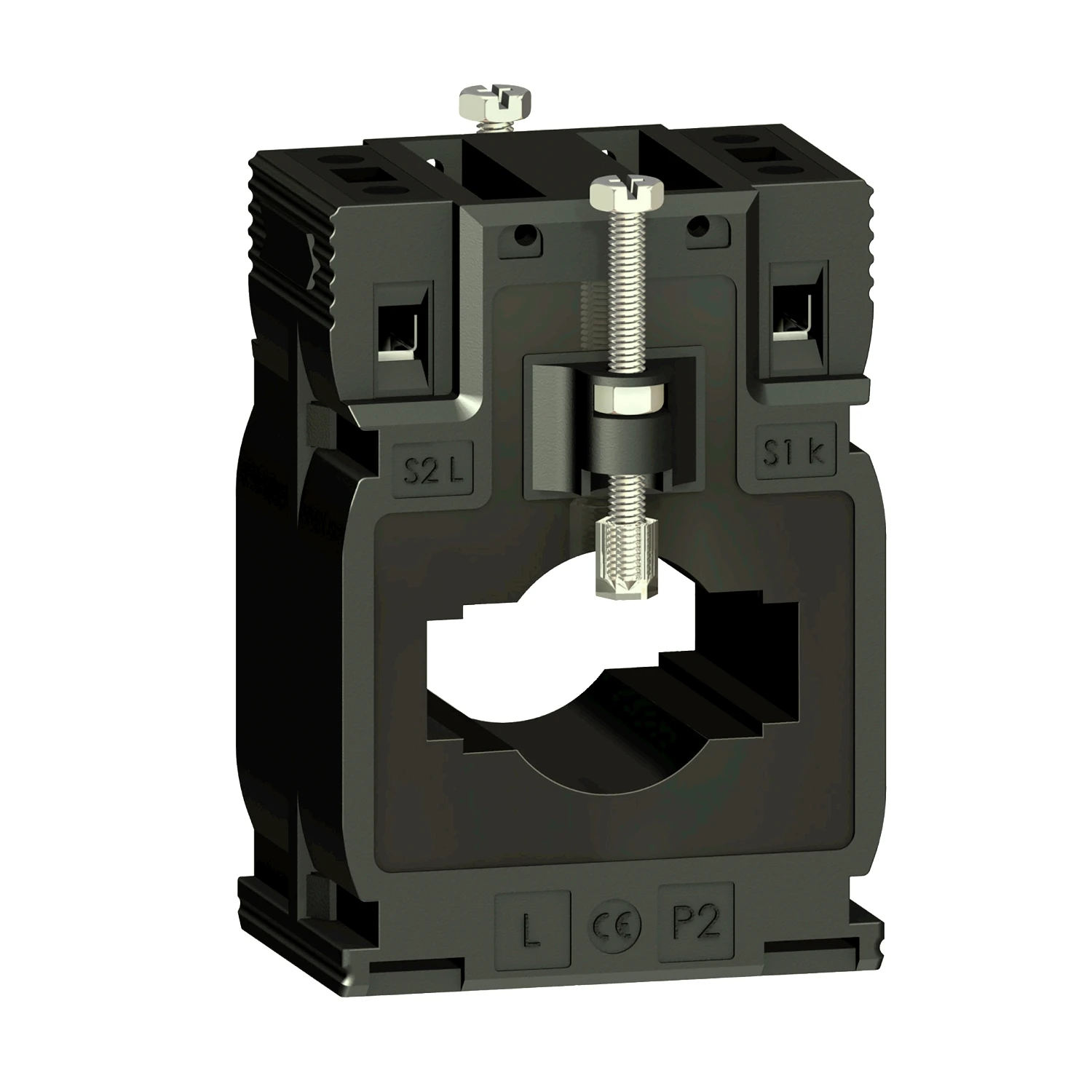

Schneider Electric Current transformer tropicalised DIN mount 400 5 cables d. 26, bars 12
£75.04 Incl. VAT
This current transformer, tropicalised for busbar and cable, has a line rated current of 400 A and a secondary current rating of 5 A. This current transformer allow a maximum cable outer diameter of 26 mm. Compatible with a double output for bar: 40.5 mm x 12.5 mm or 32.5 mm x 15.5 mm. Burden and accuracy class as follows: class 0.5 maximum power: 6 VA, class 1 maximum power: 8 VA. · · · This current transformer, tropicalised for busbar and cable, has a line rated current of 400 A and a secondary current rating of 5 A. · · This current transformer allow a maximum cable outer diameter of 26 mm. · · Compatible with a double output for bar: 40.5 mm x 12.5 mm or 32.5 mm x 15.5 mm. · · Burden and accuracy class as follows: class 0.5 maximum power: 6 VA, class 1 maximum power: 8 VA.
Out of Stock
Description
Technical Specifications Technical Specifications Current transformer Number of primary inputs 1.00 Rated primary current 400.00 A Rated secondary current 5.00 A Rated secondary apparent power 8.00 VA Opening diameter 26.00 mm Snap mounting No With shock protection No With copper rail No · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2188810
