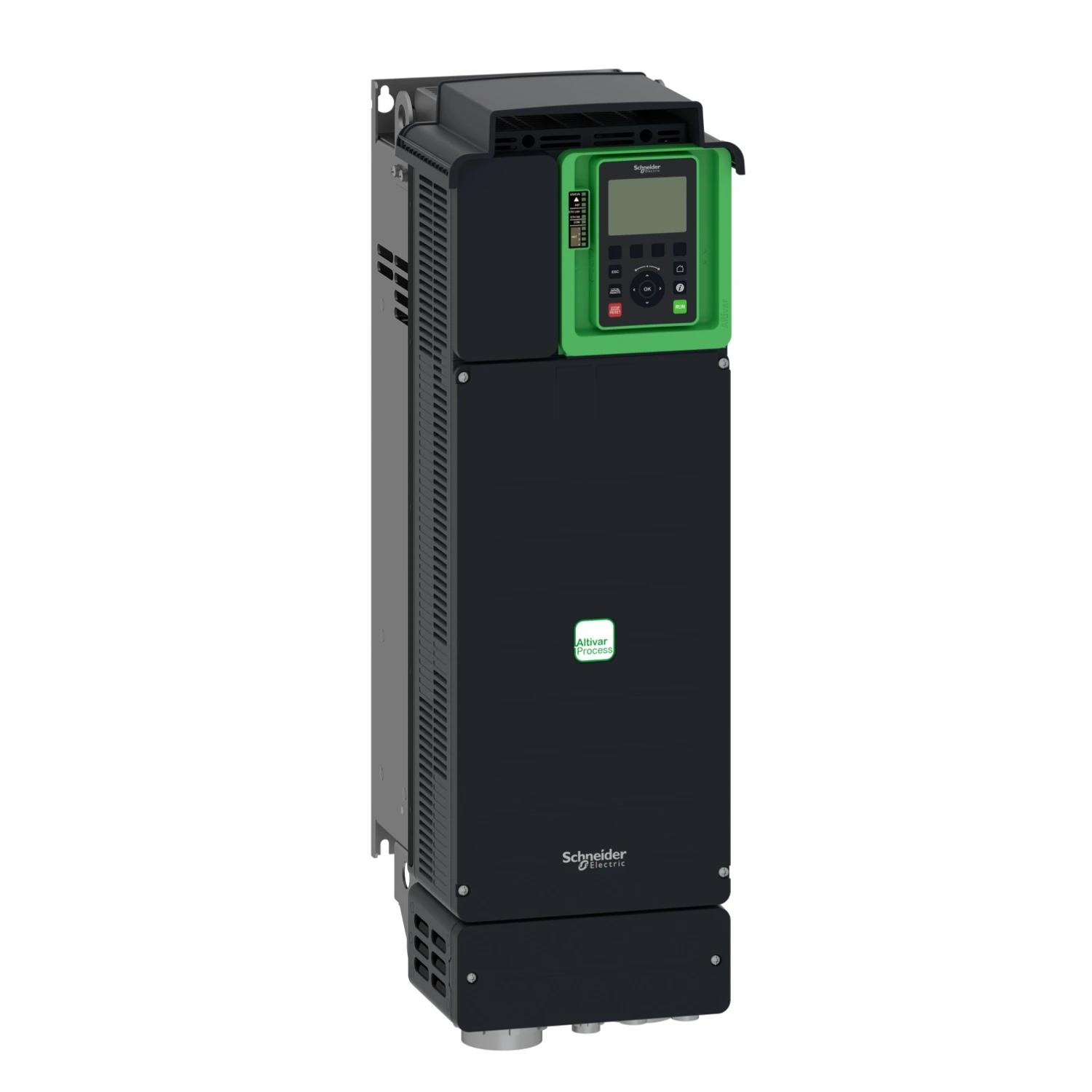

Schneider Electric Drive Variable Speed Atv630 IP21 30Kw 480V 40Hp

Variable speed drive ATV630, 30kW/40HP, 380…480V, IP21/UL type 1. range of product: Altivar Process ATV600 – product or component type: variable speed drive – product specific application: process and utilities – device short name: ATV630 – variant: standard version – product destination: asynchronous motors, synchronous motors – mounting mode: wall mount – EMC filter: integrated EN/IEC 61800-3 category C2 <= 50 m, integrated EN/IEC 61800-3 category C3 <= 150 m – IP degree of protection: IP21 conforming to IEC 60529, IP21 conforming to IEC 61800-5-1 – type of cooling: forced convection – motor power kW: 22 kW heavy duty, 30 kW normal duty – motor power hp: 30 hp heavy duty, 40 hp normal duty – line current: 35.8 A 480 V heavy duty, 40.5 A 380 V heavy duty, 45.9 A 480 V normal duty, 53.3 A 380 V normal duty – prospective line Isc: 50 kA – apparent power: 29.8 kVA 480 V heavy duty, 38.2 kVA 480 V normal duty – continuous output current: 46.3 A 4 kHz heavy duty, 61.5 A 4 kHz normal duty – maximum transient current: 67.7 A 60 s normal duty, 69.5 A 60 s heavy duty – asynchronous motor control profile: constant torque standard, optimized torque mode, variable torque standard – synchronous motor control profile: permanent magnet motor, synchronous reluctance motor – output frequency: 0.0001…0.5 kHz – speed drive output frequency: 0.1…599 Hz – nominal switching frequency: 4 kHz – switching frequency: 2…12 kHz adjustable, 4…12 kHz with derating factor – discrete input logic: 16 preset speeds – communication port protocol: Ethernet, Modbus serial, Modbus TCP – option card: communication module BACnet MS/TP, communication module CANopen daisy chain RJ45 slot A, communication module CANopen screw terminals slot A, communication module CANopen SUB-D 9 slot A, communication module DeviceNet slot A, communication module Ethernet IP/Modbus TCP/MD-Link slot A, communication module Ethernet Powerlink, communication module Modbus TCP/EtherNet/IP slot A, communication module Profibus DP V1 slot A, communication module Profinet slot A, digital and analog I/O extension module slot A/slot B, output relay extension module slot A/slot B. · · · This Altivar Process ATV600 variable speed drive can feed 3-phase synchronous and asynchronous power motors. · · It features 3 built-in RJ45 communication ports as standard, 1 Ethernet port, 2 serial ports. · · It works at a rated supply voltage from 380V to 480V AC. · · This drive provides up to 30% energy saving when on standby due to the innovative ‘‘Stop and Go’’operation without additional costs. · · It is suitable for motors with power rating up to 30kW / 40hp for applications requiring slight overload (up to 120%). · · It is suitable for motors with power rating up to 22kW / 30hp for applications requiring significant overload (up to 150%). · · It weighs 28kg and its dimensions are, 226mm wide, 673mm high, 271mm deep. · · This drive is focused on fluids management processing and energy saving, it offers extensive flexibility in water and wastewater, mining, minerals and metals, oil and gas and food and beverage applications.
