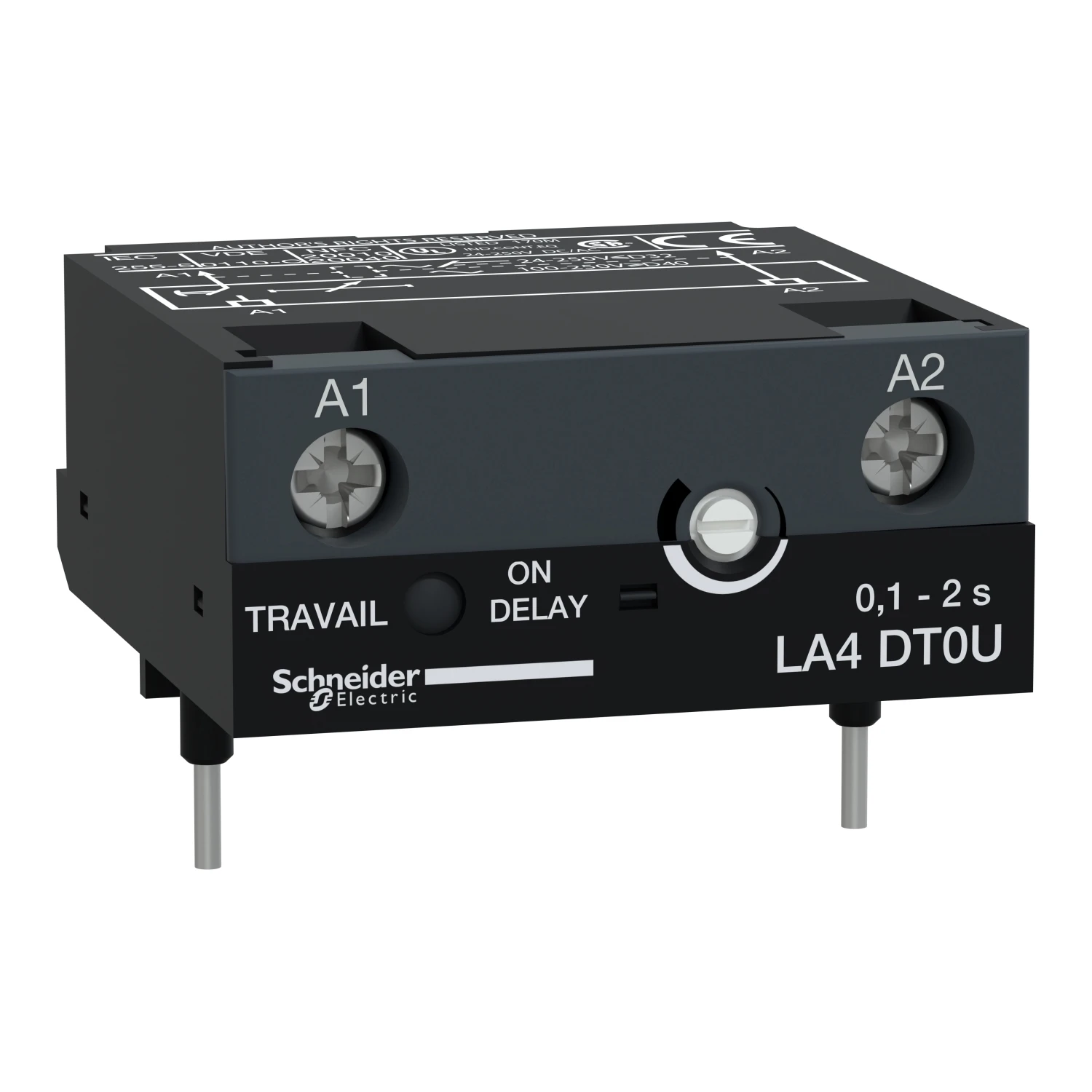

Schneider Electric Electronic Timermodule Type On Delay 0.1-2 S 24-250V DC/AC
Schneider Electric Electronic Timermodule Type On Delay 0.1-2 S 24-250V DC/AC
Schneider Electric Electronic Timermodule Type On Delay 0.1-2 S 24-250V DC/AC - Image 2

Schneider Electric Electronic Timermodule Type On Delay 0.1-2 S 24-250V DC/AC

£76.15 Incl. VAT

TeSys Deca electronic timer module for LC1D09-D38, LC1D40A-D80A, LC1D80-D150 (3P) contactors. To be used with 24-250V AC control circuit voltages, it provides a manual ajustable on-delay time 0.1 to 2 sec. The time delay period is signalling by LED. Mounting on contactors LC1D09-D38 using adapter LAD4BB, on contactors LC1D40A-D80A using adpater LAD4BB3, on contactors LC1D80-D150 (3P) directly on coil terminals. Multi standards certified (IEC, UL, CSA), it conforms to RoHS/REACh regulation. · · · TeSys D electronic timer module for LC1D09-D38, LC1D40A-D80A, LC1D80-D150 (3P) contactors. · · To be used with 24-250V AC control circuit voltages, it provides a manual ajustable on-delay time 0.1 to 2 sec. · · The time delay period is signalling by LED. · · Mounting on contactors LC1D09-D38 using adapter LAD4BB, on contactors LC1D40A-D80A using adpater LAD4BB3, on contactors LC1D80-D150 (3P) directly on coil terminals. · · Multi standards certified (IEC, UL, CSA), it conforms to RoHS/REACh regulation.

Typically available in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: LA4DT0U Categories: , Brand: Product Code: 2500024197

Description

Technical Specifications  Technical Specifications Timer block Number of contacts as normally open contact 1.00 Number of contacts as change-over contact 0.00 Number of contacts as normally closed contact 0.00 Setting time 0.10 – 2.00 s · Technical Data Sheet – Click to Download
