Schneider Electric Enclosure 18500 Series Chassis 1800 x 600 x 400mm Steel
Schneider Electric Enclosure 18500 Series Chassis 1800 x 600 x 400mm Steel
Schneider Electric Enclosure 18500 Series Chassis 1800 x 600 x 400mm Steel - Image 2

Schneider Electric Enclosure 18500 Series Chassis 1800 x 600 x 400mm Steel

£713.15 Incl. VAT

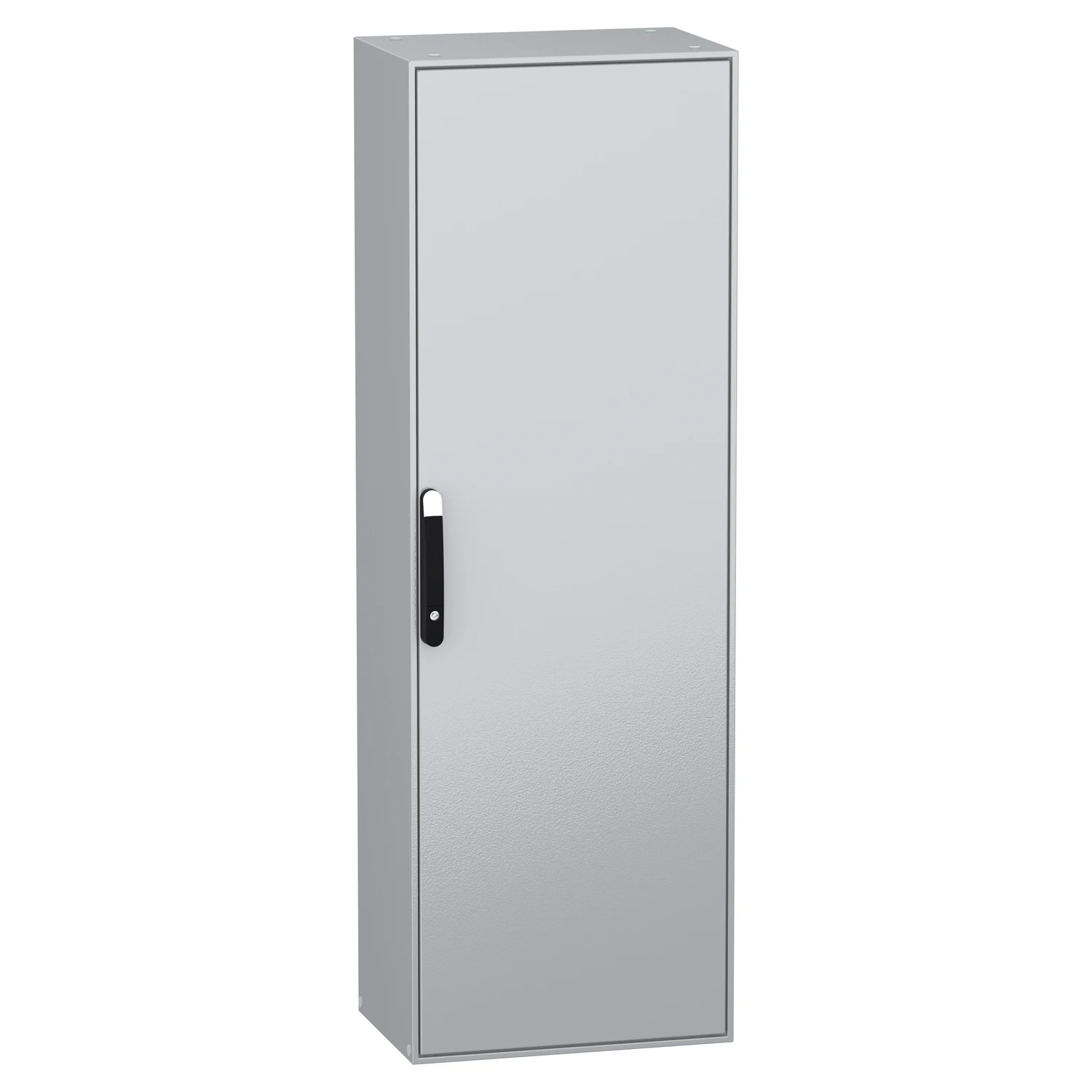

Spacial SM compact enclosure with mounting plate, 1800x600x400mm. range: Spacial – product name: Spacial SM – product or component type: compact enclosure – device application: multi-purpose – installation accessory type: floor-standing – device composition: 1 body, 1 cable gland plate, 1 door, 1 locking system with handle for door, 1 mounting plate, 4 mounting plate bracket – removable parts: door fixed by screws for hinge, mounting plate bracket fixed by screws, mounting plate fixed by screws for mounting plate bracket – enclosure nominal height: 1800 mm – enclosure nominal width: 600 mm – enclosure nominal depth: 400 mm. · · · Spacial SM monobloc compact steel enclosure with plain front door. · · 1800 x 600 x 400 mm. · · Back panel welded, mounting plate included. · · 4 point door locking system with handle DB 5mm. · · Sheet steel, galvanized steel for mounting plate. · · Protection IP 55, IK10, Grey RAL 7035. · · 4 mounting plate support brackets included.

Out of Stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: NSYSM18640P Categories: , Brand: Product Code: 2500110217

Description

Technical Specifications  Technical Specifications Enclosure/switchgear cabinet Height 1800 mm Width 600 mm Number of doors 1 RAL number 7035 Number of locks 1 Depth 400 mm Mounting plate depth-adjustable No EMC-version No Suitable for wall built-in No With mounting plate Yes Pole fastening No Pitched roof No With glazed door No With ventilation door No With backside door No Suitable for metrical mounting Yes · Technical Data Sheet – Click to Download
