Schneider Electric Feed Unit End 100A
£176.65 Incl. VAT

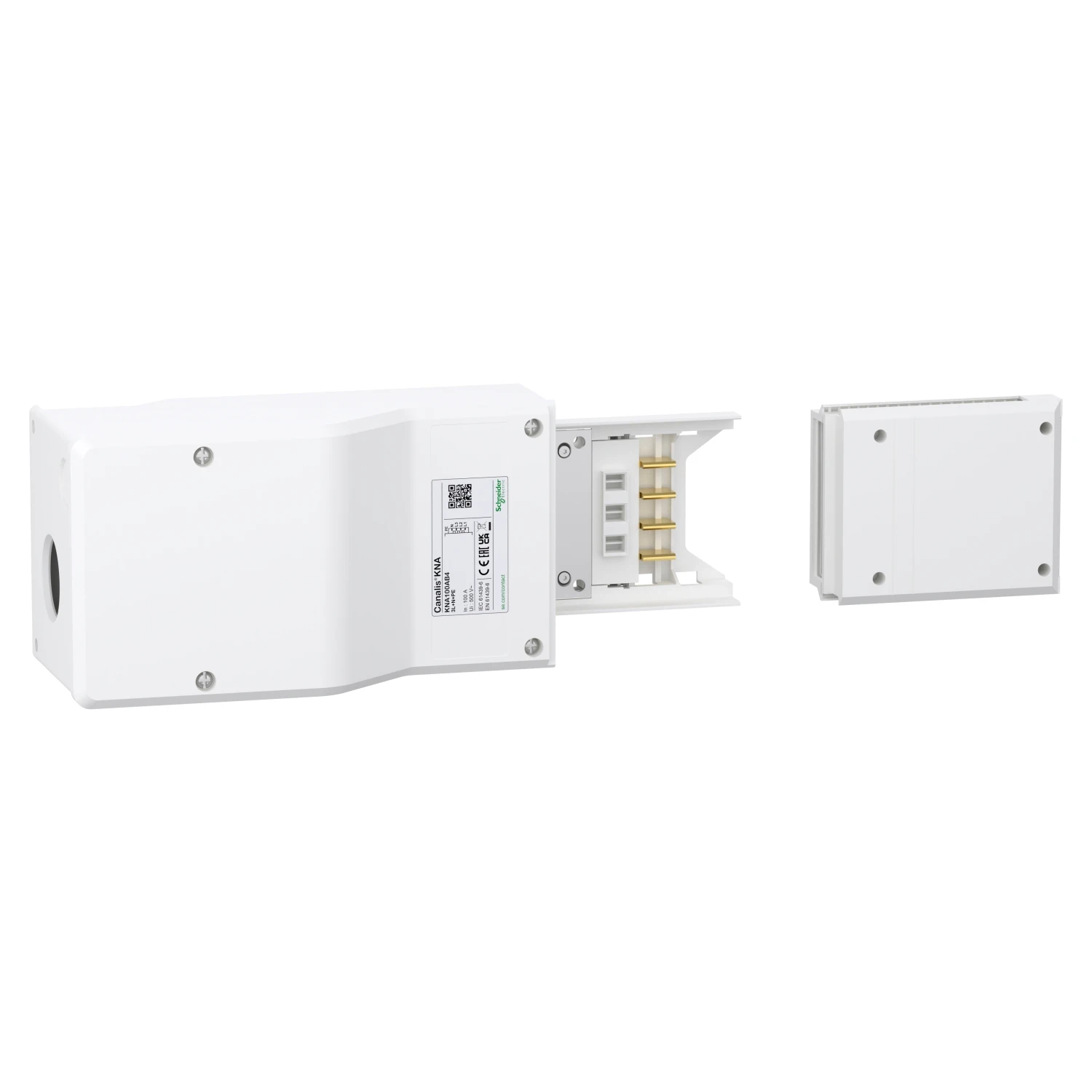

Canalis feed unit for KNA. The rated operational voltage is from 230VAC to 500VAC. The rated operational current is 100A. The bar material of feed-unit is aluminium with white RAL 9001 surface treatment. Busbar mounting by clips on left or right side of trunking, connection by lug terminals. Designed with 1 circuit allowing. It provides end cover. It provides IP55 protection conforming to IEC 60529. IK08 conforms to IEC 62262. It is compliant with both IEC 60439-2 and IEC 61439-6. It is also compliant with Green Premium (RoHS/REACH). · · · Canalis feed unit for KNA. · · The rated operational voltage is from 230VAC to 500VAC. · · The rated operational current is 100A. · · The bar material of feed-unit is aluminium with white RAL 9001 surface treatment. · · Busbar mounting by clips on left or right side of trunking, connection by lug terminals. · · Designed with 1 circuit allowing. · · It provides end cover.
Out of Stock
Description
Technical Specifications Technical Specifications Feed unit for busbar trunk Number of poles 5 RAL number 9001 Length 340 mm Width 112 mm Rated current at AC 50 Hz 100 A Height 127 mm Rated voltage at AC 50 Hz 230 – 500 V · Technical Data Sheet – Click to Download
