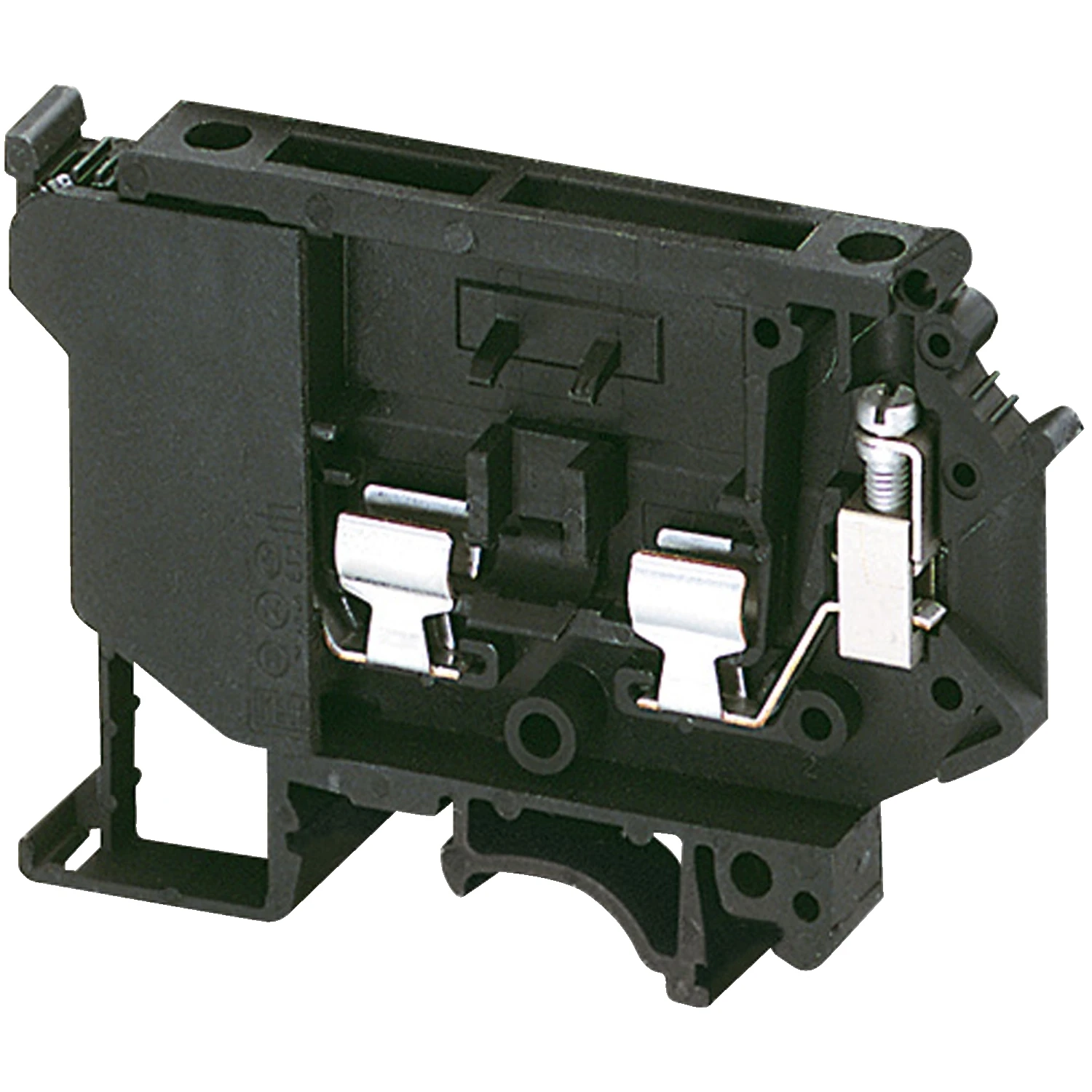

Schneider Electric Fuse disc. terminal, 4mm2 6,3A, 5x20mm fuse, 1×1 screw, black
£6.55 Incl. VAT
Linergy TR is terminal block for Linergy. It belongs to fuse disc terminal with 4 mm² nominal cross section. The rated operational voltage is 600V conforming to CSA/cURus and 500V conforming to EN/IEC 60947-7-1. The rated current is 6.3A conforming to EN/IEC 60947-7-1, 6.3A conforming to CSA and 12A cURus. It has black surface treatment. Mounting by clip-on and sideways connection with 5x20mm fuse. It could be connection and disconnection by screwdriver. It is compatible with spacial enclosures for Prisma G, Prisma P, Pragma, Prisma PH, Prisma Pack, Spacial, Kaedra, TeSys. Sold in lots of 50 units. Ambient air temperature for operation is from -40 to 130 °C conforming to IEC 60216-1 and VDE 0304-T21. Multi standards certified (CSA, cURus, EAC). It is compliant with Green Premium (RoHS/REACH). · · · Linergy TR is terminal block for Linergy. · · It belongs to fuse disc terminal with 4 mm² nominal cross section. · · The rated operational voltage is 600V conforming to CSA/cURus and 500V conforming to EN/IEC 60947-7-1. · · The rated current is 6.3A conforming to EN/IEC 60947-7-1, 6.3A conforming to CSA and 12A cURus. · · It has black surface treatment.
Out of Stock
Description
Technical Specifications Technical Specifications Fused terminal block Rated voltage 500.00 V Rated current In 6.30 A Number of levels 1.00 Supply voltage for defect-indication – – – V Operating temperature -40.00 – 130.00 °C Connectable conductor cross section fine-strand without cable end sleeve 0.20 – 4.00 mm² Connectable conductor cross section fine-strand with cable end sleeve 0.20 – 4.00 mm² Connectable conductor cross section solid-core 0.20 – 4.00 mm² Connectable conductor cross section multi-wired 0.20 – 4.00 mm² Closing plate required No · Technical Data Sheet – Click to Download
