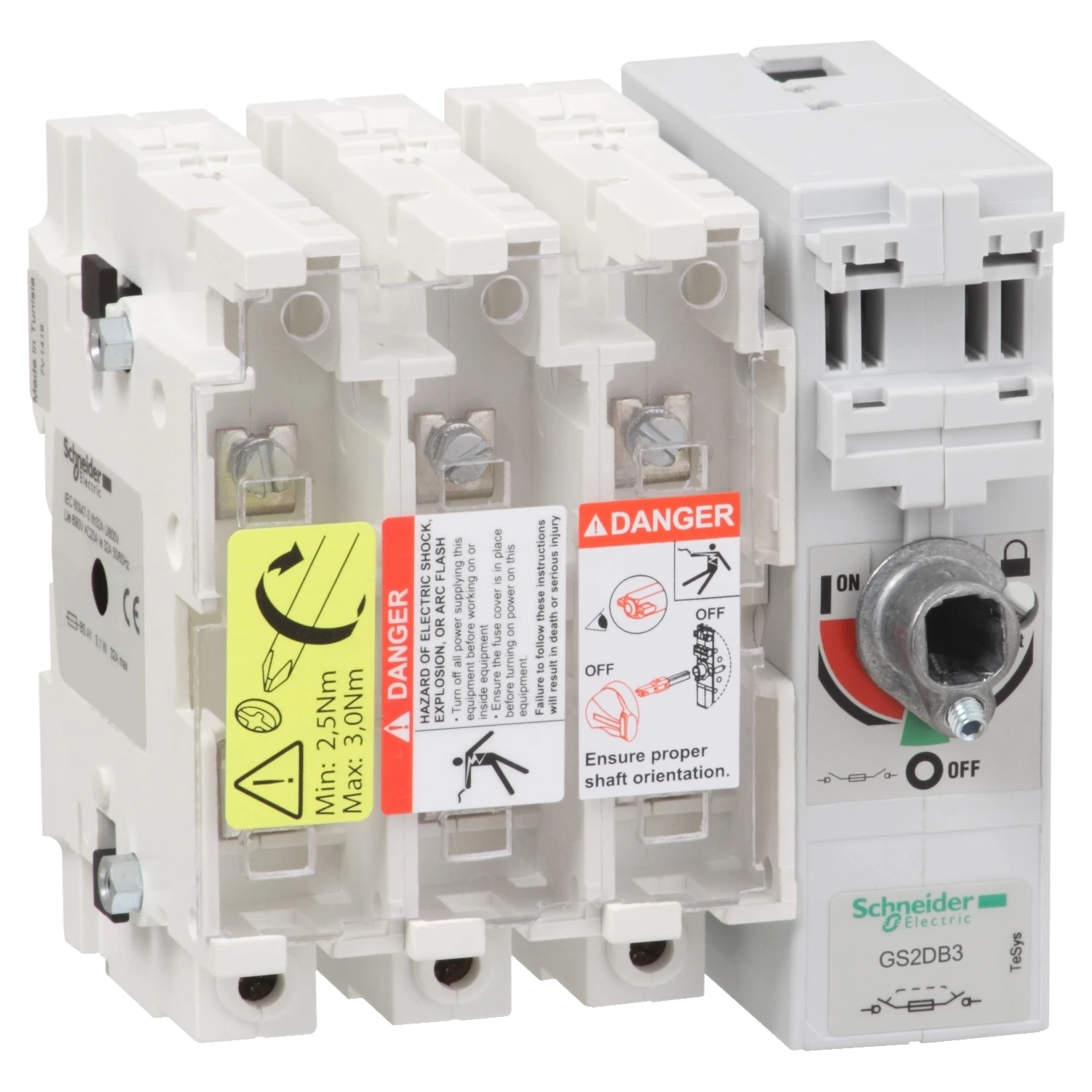

Schneider Electric Fuse Disconnector Switch 3mm 32A A1
£74.30 Incl. VAT
TeSys GS fuse switch-disconnector, 3 poles (3P), 32A/800V, to be used with type BS fuse links size A1 up to 32A, for motor applications up to 15kW@400V AC-23. To be equipped with an external front side or right-hand side mounting operating handle GS2AH (several models available). It provides screw terminals with 3P terminal shrouds, high short circuit current rating 80kA@400V. Add-on auxiliary contact modules front mounting GS1AM (early-break and position signaling) can complete the assembly (to be ordered separately). Multi standards certified (IEC, Marine), Green Premium compliant (RoHS/REACh). · · · TeSys GS fuse switch-disconnector, 3 poles (3P), 32A/800V, to be used with type BS fuse links size A1 up to 32A, for motor applications up to 15kW@400V AC-23. · · To be equipped with an external front side or right-hand side mounting operating handle GS2AH (several models available). · · It provides screw terminals with 3P terminal shrouds, high short circuit current rating 80kA@400V. · · Add-on auxiliary contact modules front mounting GS1AM (early-break and position signaling) can complete the assembly (to be ordered separately). · · Depth: 87mm · · Fuse Current Rating: 32A
Out of Stock
Description
Technical Specifications Technical Specifications Fuse switch disconnector Rated permanent current Iu 32.00 A Number of poles 3.00 Conditioned rated short-circuit current Iq 100.00 kA Rated operation power at AC-23, 400 V 15.00 kW Rated short-time withstand current lcw 100.00 kA Max. rated operation voltage Ue AC 750.00 V With error protection No Motor drive integrated No Motor drive optional No Suitable for busbar mounting Yes Equipped with connectors No Version as emergency stop installation No Version as safety switch No Version as main switch Yes · Technical Data Sheet – Click to Download
