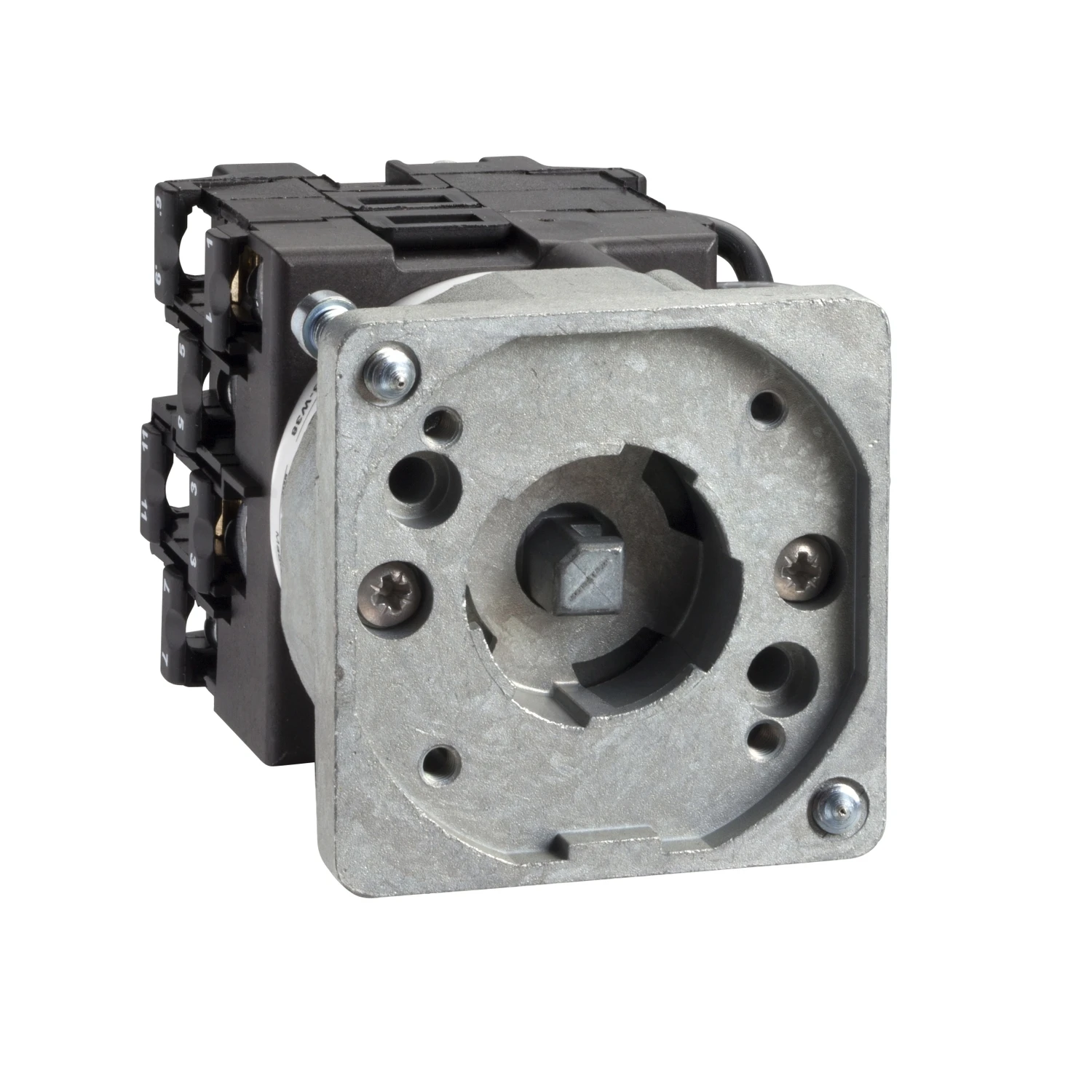

Schneider Electric Harmony K1 1-Pole 45° Body for Rotary Switch 12A for 22mm
Schneider Electric Harmony K1 1-Pole 45° Body for Rotary Switch 12A for 22mm
Schneider Electric Harmony K1 1-Pole 45° Body for Rotary Switch 12A for 22mm - Image 2

Schneider Electric Harmony K1 1-Pole 45° Body for Rotary Switch 12A for 22mm

£30.82 Incl. VAT

This Harmony K1D004NX is a body for stepping switch with 1 pole, 45° switching angle, 12 A. It is part of the range Harmony K diameter 16-22mm rotary cam switches. · · · This Harmony K1D004NX is a body for stepping switch with 1 pole, 45° switching angle, 12 A. · · It is part of the range Harmony K diameter 16-22mm rotary cam switches. · · Weight: 0.188kg

Out of Stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: K1D004NX Categories: , , , , , Brand: Product Code: 2500504894

Description

Technical Specifications  Technical Specifications Off-load switch Number of auxiliary contacts as normally open contact 0.00 Number of auxiliary contacts as normally closed contact 0.00 Rated operation power at AC-3, 400 V 1.50 kW Rated operation current Ie at AC-3, 400 V 3.30 A Number of auxiliary contacts as change-over contact 0.00 Rated permanent current Iu 12.00 A Number of poles 1.00 With 0 (off) position No Suitable for intermediate mounting Yes Suitable for distribution board installation No With retraction in 0-position No Complete device in housing No · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2188216
