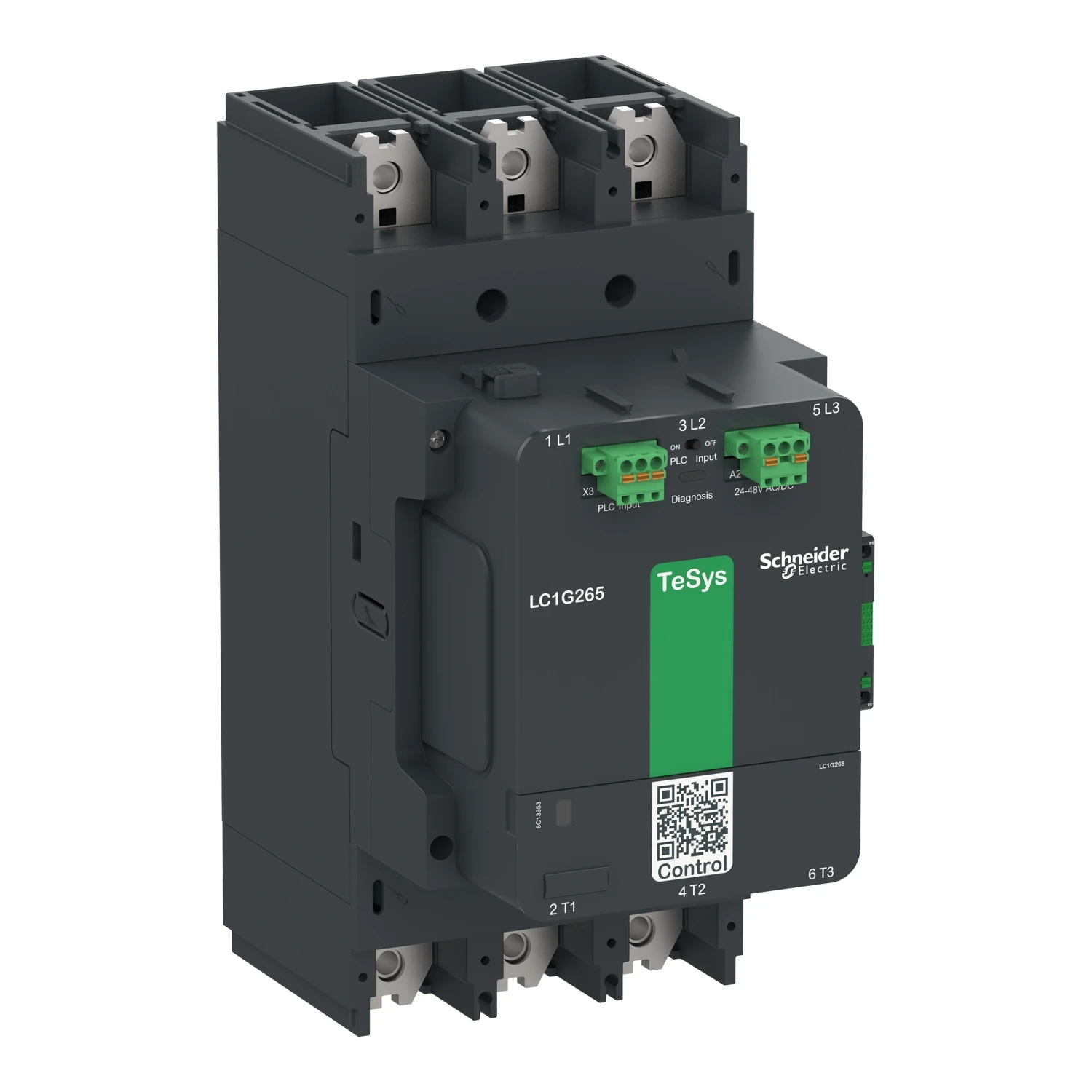

Schneider Electric High power contactor, TeSys Giga, 3 pole (3NO), AC-3=440V 400A, advanced version, 200…500V wide band AC/DC coil
£1,937.16 Incl. VAT
· · TeSys Giga high power contactor, 3 poles (3 NO) for category AC-3 applications up to 400A 250kW at 440V. · · It provides a 200-500V AC/DC wide band low consumption electronic coil, PLC output control and embedded highly reliability 1NO+1NC auxiliary contact block (17V 1mA). · · Designed for demanding applications with maximum operating rates up to 600 cycles per hour and environments until 60°C. · · It procures high reliability and durability with 5 Mcycles mechanical durability. · · Local and Remote Contact Wear Diagnosis (CWD) as standard function, continuous monitoring with healthy and alarm indicators. · · It is possibility to replace switching module (main contacts), enhancement contactor life. · · Contactor can be fixed in all quadrants, maintenance without removing cables/busbars, and OLR could be directly mounted below contactor. · · To be used with power connection by bolted connection with cable memory kit and control connections by spring terminals, accessible from front for easy and quick replacement. · · It provides IP2x protection in Front face with shrouds conforming to IEC 60529 and VDE 0106. · · It can cover -25°C to 60°C operation ambient air temperature and directly mounted on plate, No derating up to 3000m altitude.
Out of Stock
Description
Technical Specifications Technical Specifications Power contactor, AC switching Type of electrical connection of main circuit Bolt connection Voltage type for actuating AC/DC Rated operation power at AC-3, 400 V 200 kW Number of main contacts as normally open contact 3 Number of auxiliary contacts as normally open contact 1 Number of normally closed contacts as main contact 0 Number of auxiliary contacts as normally closed contact 1 Rated operation current Ie at AC-4, 400 V 400 A Rated operation power at AC-4, 400 V 200 kW Rated operation current Ie at AC-1, 400 V 550 A Rated operation current Ie at AC-3, 400 V 400 A Rated operation power NEMA 300 kW Rated control supply voltage at AC 60 Hz 200 – 500 V Rated control supply voltage at AC 50 Hz 200 – 500 V Rated control supply voltage at DC 200 – 500 V Modular version No · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2194119
