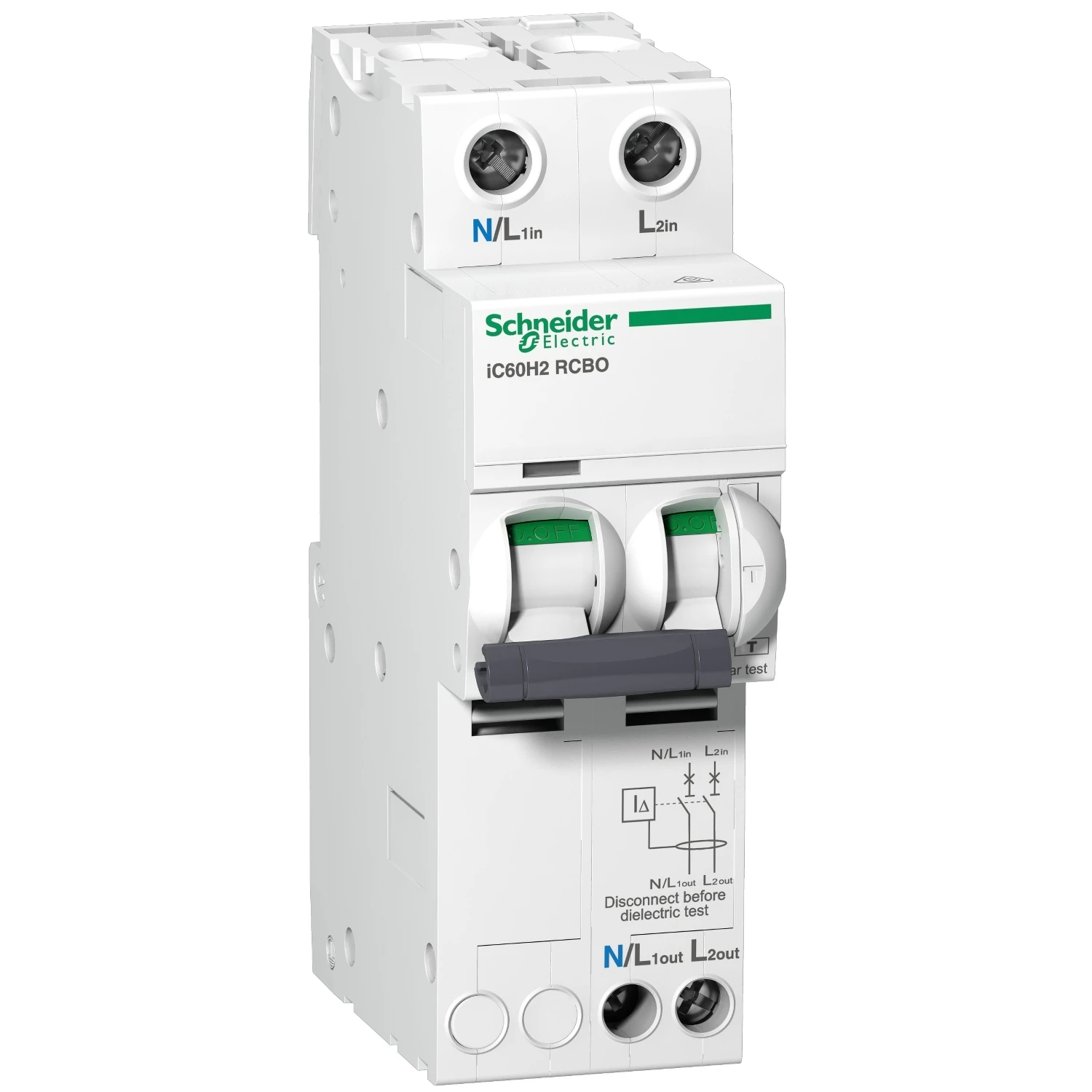

Schneider Electric IC60H2, earth leakage circuit breaker, 2p, C curve, 25A, 30m A, 240 V
Schneider Electric IC60H2, earth leakage circuit breaker, 2p, C curve, 25A, 30m A, 240 V
Schneider Electric IC60H2, earth leakage circuit breaker, 2p, C curve, 25A, 30m A, 240 V - Image 2

Schneider Electric IC60H2, earth leakage circuit breaker, 2p, C curve, 25A, 30m A, 240 V

£214.82 Incl. VAT

A9D11225 iC60H2 25A DP RCBO C Curve 30mA Type A 240V. The 2-pole iC60H2 RCBOs self-contained residual current device carries out b complete protection of final circuits: protection against short-circuits and cable overloads, protection of persons against electric shock by direct contact (30 mA sensitivities). iC60H2 RCBO switches neutral, together with phase. It is therefore suitable for all circuits, whatever the earthing system (except for TN-C). · · · This Acti9 iC60 is a modular residual current breaker with overcurrent protection (RCBO). · · It is a 2P circuit breaker with 2 protected poles, In rated current of 25A and C tripping curve. · · The earth leakage protection class is A type with a sensitivity of 30mA. The earth-leakage protection time delay is instantaneous. · · The Icn rated short circuit breaking capacity is up to 10000A according IEC 61009-2-2 standard. · · Its unique Visitrip indicator reduces intervention time by showing the faulty circuit. · · Its Visisafe green strip guarantees the physical opening of the contacts to allow downstream maintenance. · · Its fast closing mechanism independent of manual operation improves its service life. · · This product is compliant with AS/NZS 61009.1 and IEC 61009-1 standard. · · It has an electrical endurance going up to 5000 cycles and a mechanical endurance going up to 20000 cycles. · · The Ue operational voltage is 240VAC.

Out of Stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: A9D11225 Categories: , , Brand: Product Code: 2500866924

Description

Technical Specifications  Technical Specifications Earth leakage circuit breaker/RCBO Rated insulation voltage Ui 400 V Number of poles (total) 2 Rated fault current 0.03 A Width in number of modular spacings 2 Recess depth 45 mm Rated current 25 A Rated short-circuit breaking capacity Icn according to EN 61009-1 10 kA Rated voltage 240 V Rated short-circuit breaking capacity according to EN 61009 – kA Current limiting class 3 Rated impulse-withstand voltage (Uimp) 4 kV Number of protected poles 2 Surge current capacity 0.25 kA Rated short-circuit breaking capacity IEC 60947-2 – kA Pollution degree 3 Over voltage category 4 Connectable conductor cross section solid-core 1 – 25 mm² Connectable conductor cross section multi-wired 1 – 16 mm² Ambient temperature during operating -15 – 60 °C Concurrently switching N-neutral Yes With interlocking device No Anti-nuisance tripping version No · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2199805
