Schneider Electric Incomer KQ Four Pole Switch Disconnector 160A 1600 x 1400 x 1700mm
£577.87 Incl. VAT

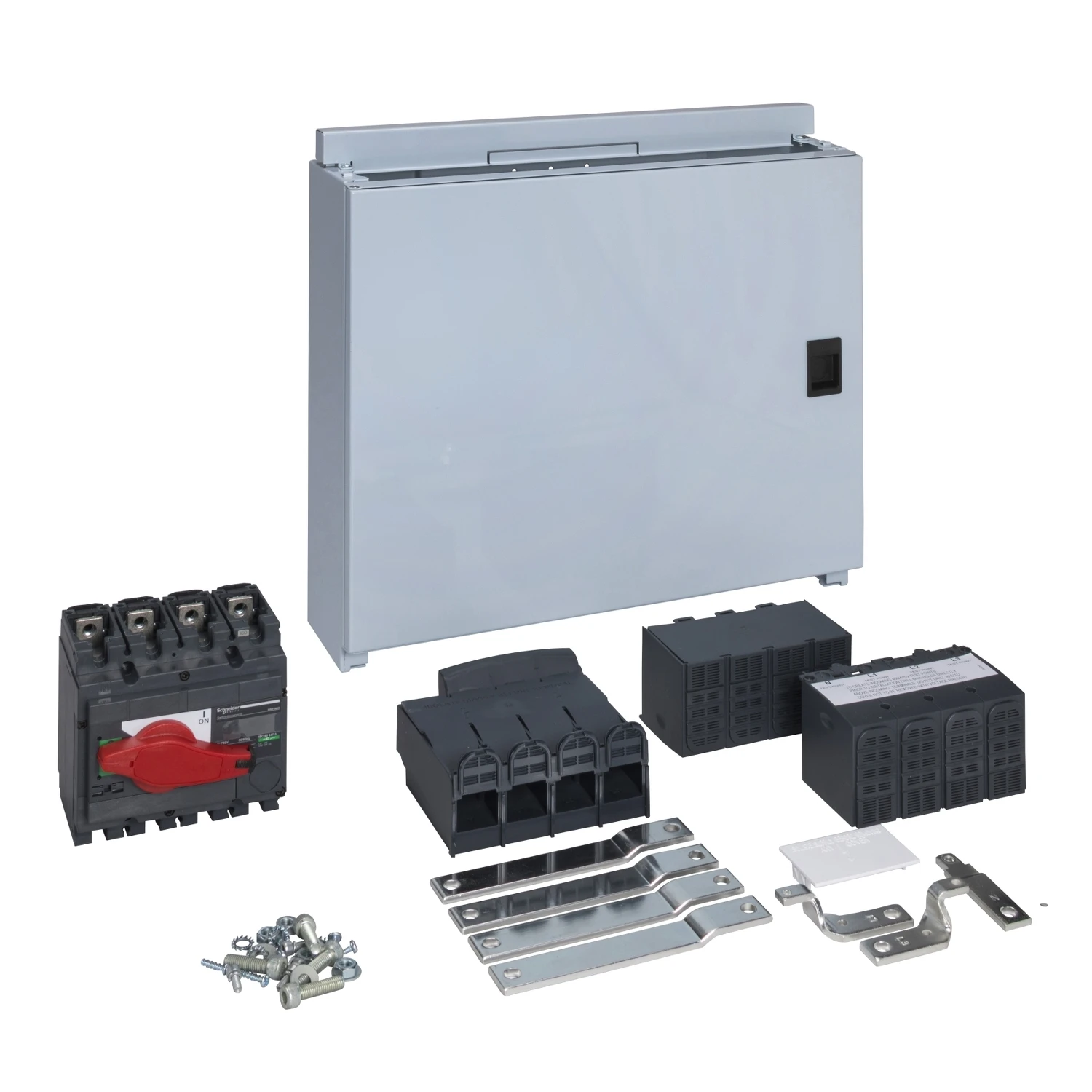

The Schneider LoadCentre KQ SE160SW4 is a 4 pole 160 amp main incoming switch disconnector designed to fit any LoadCentre KQ distribution type B boards, fitted in a supplied 400mm extension box. · · · Compatible with Loadcentre KQ B Type boards · · Other switch disconnector options available · · Finish: Black · · RoHS compliant · · BS EN 60947-3
Out of Stock
Description
Technical Specifications Technical Specifications Switch disconnector / isolator Rated short-time withstand current lcw – kA Conditioned rated short-circuit current Iq – kA Number of poles 4 Rated permanent current Iu 160 A Number of auxiliary contacts as normally open contact 0 Rated operation power at AC-3, 400 V – kW Number of auxiliary contacts as normally closed contact 0 Max. rated operation voltage Ue AC 455 V Number of auxiliary contacts as change-over contact 0 Rated operation power at AC-23, 400 V – kW Number of switches 1 Switching power at 400 V – kW Rated permanent current at AC-21, 400 V – A Rated permanent current at AC-23, 400 V – A Rated operating voltage 415 – 415 V Interlockable No Version as reversing switch No Motor drive optional No Voltage release optional No Motor drive integrated No Suitable for front mounting centre No Suitable for front mounting 4-hole No Suitable for distribution board installation Yes Suitable for intermediate mounting No Version as emergency stop installation No Version as maintenance-/service switch No Version as safety switch No Version as main switch Yes · Technical Data Sheet – Click to Download
